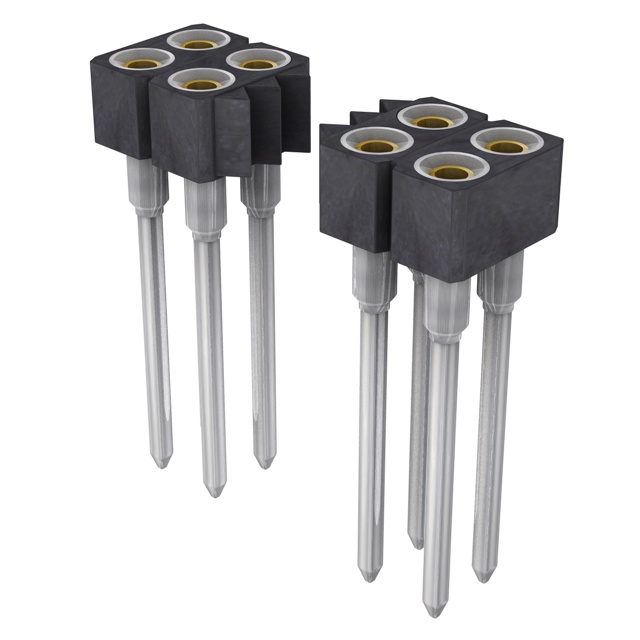

422-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 40POS 0.1 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Connector Type	Style	Current Rating (Amps)	Termination	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Fastening Type	Mounting Type	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Type	Contact Finish - Post
Preci-Dip 422-83-240-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	40	Gold	29.5 µin	0.75 µm	Female Socket	Tin
Preci-Dip 422-83-238-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	38	Gold	29.5 µin	0.75 µm	Female Socket	Tin
Preci-Dip 422-83-270-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	70	Gold	29.5 µin	0.75 µm	Female Socket	Tin
Preci-Dip 422-83-264-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	64	Gold	29.5 µin	0.75 µm	Female Socket	Tin
Preci-Dip 422-83-226-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	26	Gold	29.5 µin	0.75 µm	Female Socket	Tin
Preci-Dip 422-83-266-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	66	Gold	29.5 µin	0.75 µm	Female Socket	Tin
Preci-Dip 422-83-222-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	22	Gold	29.5 µin	0.75 µm	Female Socket	Tin
Preci-Dip 422-83-210-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	10	Gold	29.5 µin	0.75 µm	Female Socket	Tin
Preci-Dip 422-83-246-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	46	Gold	29.5 µin	0.75 µm	Female Socket	Tin
Preci-Dip 422-83-254-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	UL94 V-0	-55 C	125 °C	0.1 in	2.54 mm	Black	Socket	Board to Cable/Wire	3 A	Wire Wrap	All	9.4 mm	0.37 in	Push-Pull	Through Hole	2	0.1 "	2.54 mm	4.9 mm	0.193 "	54	Gold	29.5 µin	0.75 µm	Female Socket	Tin
