3108A Series
Manufacturer: Belden Inc.
Beta
⌘K

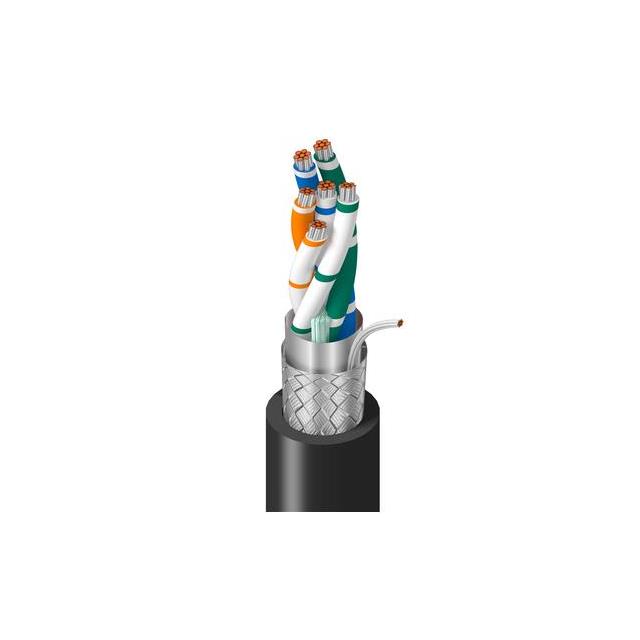

MULTI-PAIR 6COND 22AWG BLK
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Material | Cable Type | Conductor Insulation | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Voltage | Features | Shield Type | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 30 AWG | 7 | 6 | Poly-Vinyl Chloride (PVC) | Multi-Pair | Foam High Density Polyethylene (FHDPE) | 22 AWG | 0.374 in | 9.5 mm | 0.053 " | 1.346 mm | Black | 300 VDC | Drain Wire | Braid Foil | Copper Tinned | -20 ░C | 60 °C |
