767004 Series

Catalog

CONN RCPT 114POS SMD GOLD

Part	Mounting Type	Features	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Number of Rows [custom]	Contact Finish	Mated Stacking Heights

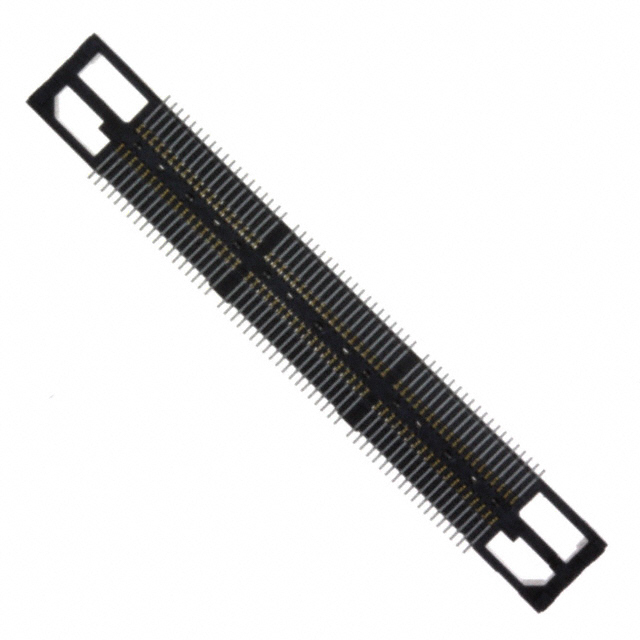

TE Connectivity AMP Connectors 2-767004-4	Surface Mount	Board Guide Ground Bus (Plane)	Receptacle Center Strip Contacts	114	30 Áin	0.76 Ám	0.236 in	6 mm	0.64 mm	0.025 in	2	Gold	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm

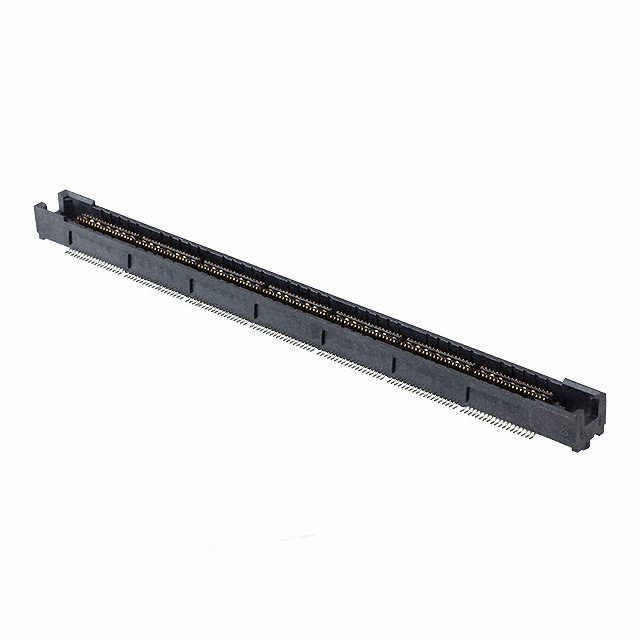

TE Connectivity AMP Connectors 2-767004-8	Surface Mount	Board Guide Ground Bus (Plane)	Receptacle Center Strip Contacts	266	30 Áin	0.76 Ám	0.236 in	6 mm	0.64 mm	0.025 in	2	Gold	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm

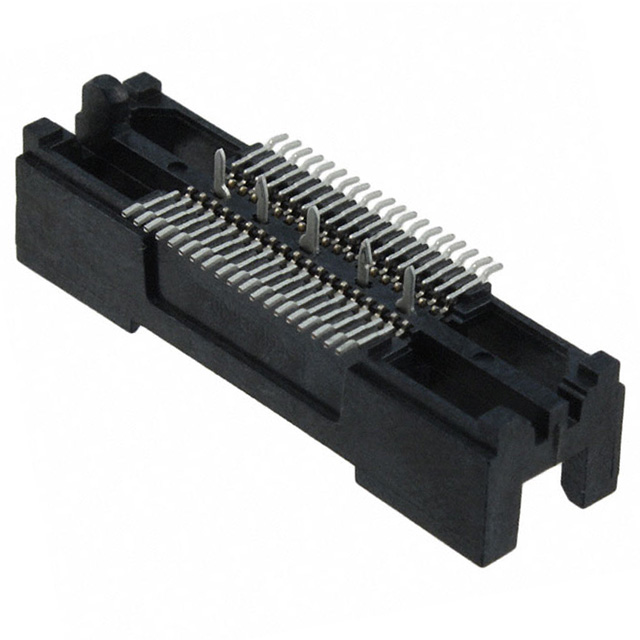

TE Connectivity AMP Connectors 2-767004-2	Surface Mount	Board Guide Ground Bus (Plane)	Receptacle Center Strip Contacts	38	30 Áin	0.76 Ám	0.236 in	6 mm	0.64 mm	0.025 in	2	Gold	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm
