MDSTBV Series
Manufacturer: Phoenix Contact
Beta
⌘K
PLUGGABLE TERMINAL BLOCKS 4 POS 5.08MM PITCH THROUGH HOLE HEADER
| Part | Insulation Height [z] | Insulation Height [z] | Housing Material | Contact Tail Length | Contact Tail Length | Material Flammability Rating | Termination Style | Current - IEC | Features | Positions Per Level | Voltage - UL | Pitch | Pitch | Type | Color | Number of Levels | Voltage - IEC | Current - UL | Header Orientation | Number of Positions | Contact Mating Finish | Mounting Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

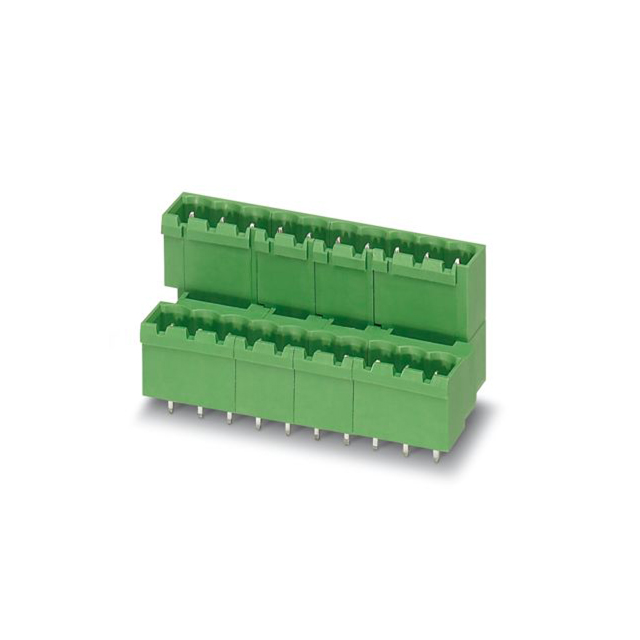

 Phoenix Contact | 22.1 mm | 0.87 " | Polybutylene Terephthalate (PBT) | 3.9 mm | 0.154 in | UL94 V-0 | Solder | 10 A | Mating Flange | 4 | 300 V | 5.08 mm | 0.2 in | Header Male Pins Shrouded (4 Side) | Green | 2 | 400 V | 12 A | Vertical | 8 | Tin | Through Hole | ||

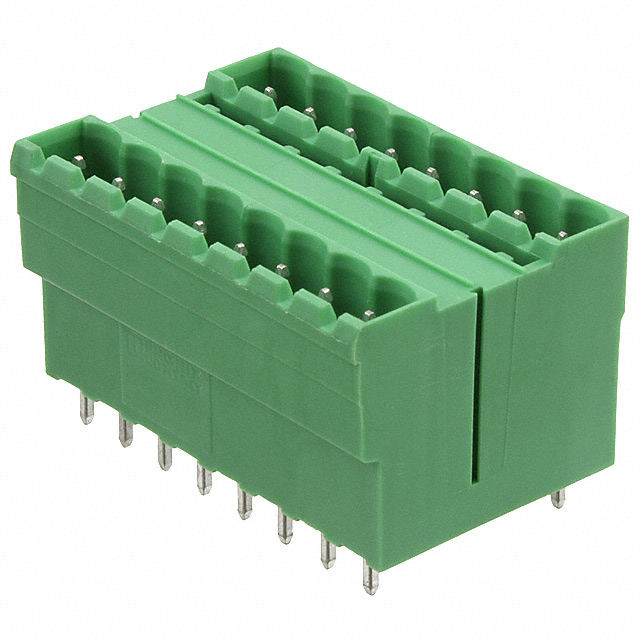

Phoenix Contact | 22.1 mm | 0.87 " | Polybutylene Terephthalate (PBT) | 3.9 mm | 0.154 in | UL94 V-0 | Solder | 10 A | Mating Flange | 8 | 300 V | 5 mm | 0.197 in | Header Male Pins Shrouded (4 Side) | Green | 2 | 400 V | 12 A | Vertical | 16 | Tin | Through Hole | ||

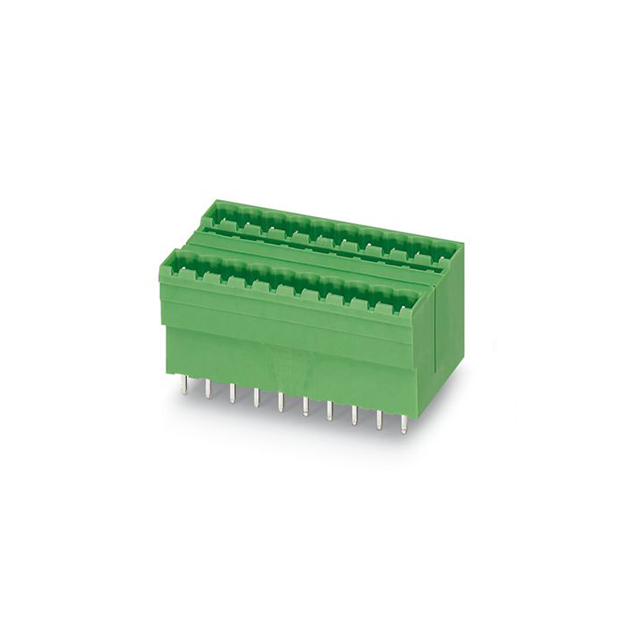

 Phoenix Contact | Polyamide (PA) Nylon | 3.9 mm | 0.154 in | UL94 V-0 | Solder | 10 A | 18 | 300 V | 5.08 mm | 0.2 in | Header Male Pins Shrouded (4 Side) | Green | 2 | 630 V | 12 A | Vertical | 36 | Tin | Through Hole | 0.866 in | 22 mm | |||
 Phoenix Contact | Solder | 10 A | Interlocking (Side) Mating Flange | 3 | 300 V | 5.08 mm | 0.2 in | Header Male Pins Shrouded (2 Side) | Green | 2 | 400 V | 12 A | Vertical | 6 | Tin | Through Hole | ||||||||
 Phoenix Contact | Polyamide (PA) Nylon | 3.9 mm | 0.154 in | UL94 V-0 | Solder | 10 A | 8 | 300 V | 5 mm | 0.197 in | Header Male Pins Shrouded (4 Side) | Green | 2 | 630 V | 12 A | Vertical | 16 | Tin | Through Hole | 0.866 in | 22 mm | |||

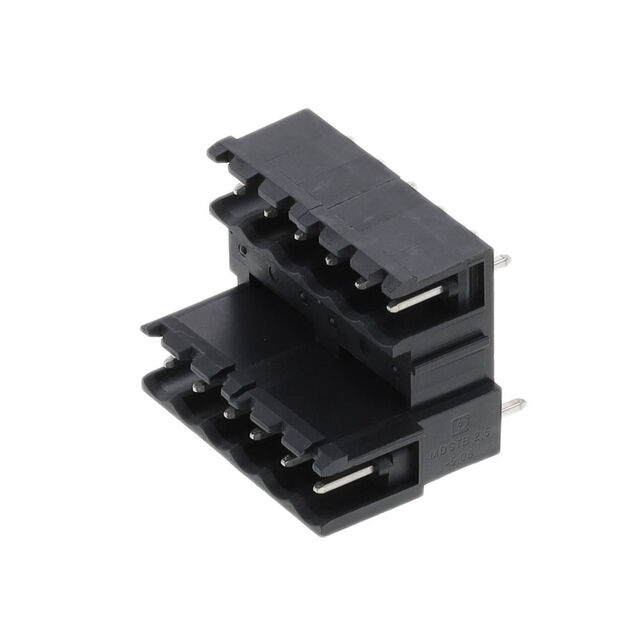

 Phoenix Contact | 22.1 mm | 0.87 " | 3.5 mm | 0.138 in | Solder | 10 A | 6 | 300 V | 5.08 mm | 0.2 in | Header Male Pins Shrouded (2 Side) | Black | 2 | 250 V | 12 A | Vertical | 12 | Tin | Through Hole | |||||
 Phoenix Contact | Solder | 10 A | 12 | 5.08 mm | 0.2 in | Header Male Pins Shrouded (2 Side) | Black | 2 | 250 V | Vertical | 24 | Tin | Through Hole | |||||||||||
Phoenix Contact | 22.1 mm | 0.87 " | Polybutylene Terephthalate (PBT) | 3.9 mm | 0.154 in | UL94 V-0 | Solder | 10 A | Mating Flange | 2 | 300 V | 5.08 mm | 0.2 in | Header Male Pins Shrouded (4 Side) | Green | 2 | 400 V | 12 A | Vertical | 4 | Tin | Through Hole |
