325-040 Series
Manufacturer: EDAC Inc.
Beta
⌘K

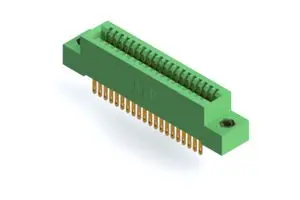

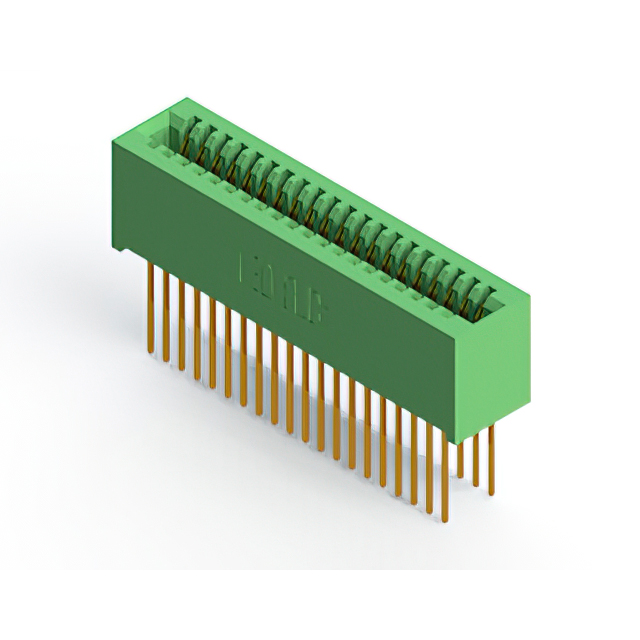

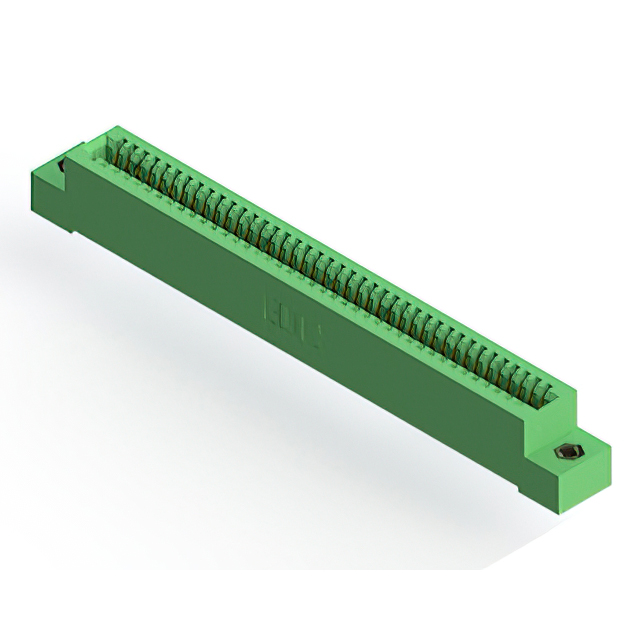

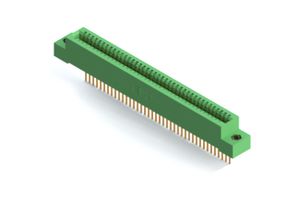

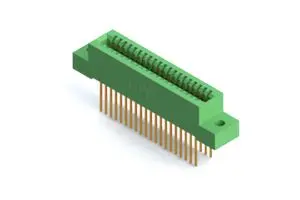

CONN EDGE DUAL FMALE 40POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Read Out | Termination | Gender | Flange Feature | Number of Rows [custom] | Number of Positions/Bay/Row | Contact Finish | Color | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows | Number of Rows | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Wire Wrap | Female | Flush Mount M3 Threaded Insert Top Opening | 2 | 20 Bay/Row | Gold | Green | Cantilever | 40 | -65 ░C | 125 °C | Copper Alloy | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Non Specified - Dual Edge | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Wire Wrap | Female | Flush Mount Top Opening Unthreaded | 2 | 20 Bay/Row | Gold | Green | Cantilever | 40 | -65 ░C | 125 °C | Copper Alloy | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Non Specified - Dual Edge | 0.16 " | 4.06 mm | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Solder | Female | Flush Mount M3 Threaded Insert Top Opening | 2 | 20 Bay/Row | Gold | Green | Cantilever | 40 | -65 ░C | 125 °C | Copper Alloy | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Non Specified - Dual Edge | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | Single | Wire Wrap | Female | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Green | Cantilever | 40 | -65 ░C | 125 °C | Copper Alloy | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 1 | 40 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Single | Solder | Female | Flush Mount M3 Threaded Insert Top Opening | Gold | Green | Cantilever | 40 | -65 ░C | 125 °C | Copper Alloy | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 1 | 40 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Solder Eyelet(s) | Female | Flush Mount M3 Threaded Insert Top Opening | 2 | 20 Bay/Row | Gold | Green | Cantilever | 40 | -65 ░C | 125 °C | Copper Alloy | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Non Specified - Dual Edge | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Wire Wrap | Female | 2 | 20 Bay/Row | Gold | Green | Cantilever | 40 | -65 ░C | 125 °C | Copper Alloy | Through Hole | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Non Specified - Dual Edge |
