CSD87588N Series

30-V, N channel synchronous buck NexFET™ power MOSFET, 5 mm x 2.5 mm LGA, 25 A

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, 5 mm x 2.5 mm LGA, 25 A

Part	Package / Case	Power - Max [Max]	Vgs(th) (Max) @ Id	Supplier Device Package	Configuration	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	FET Feature	Rds On (Max) @ Id, Vgs	Technology	Drain to Source Voltage (Vdss)	Regulator Topology	Main Purpose	Current - Output	Voltage - Output	Utilized IC / Part	Board Type	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Frequency - Switching	Supplied Contents
Texas Instruments CSD87588NT	5-LGA	6 W	1.9 V	5-PTAB (5x3.5)	2 N-Channel (Half Bridge)	Surface Mount	-55 °C	150 °C	25 A	736 pF	4.1 nC	Logic Level Gate	9.6 mOhm	MOSFET (Metal Oxide)	30 V

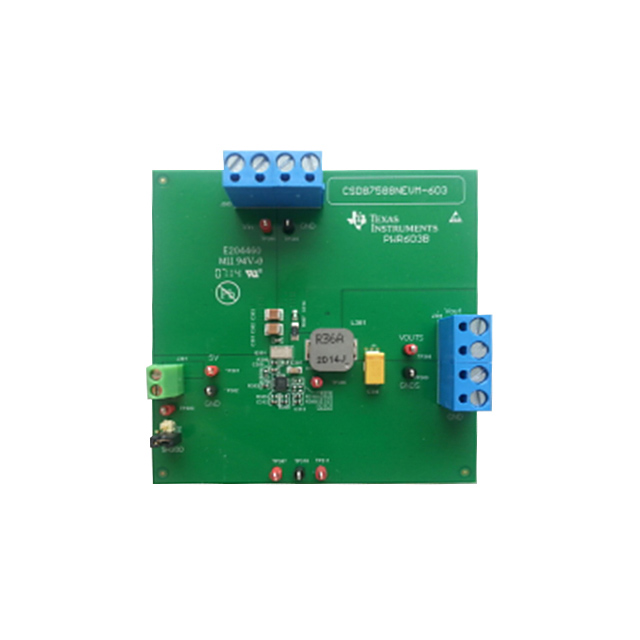

Texas Instruments CSD87588NEVM-603																Buck	DC/DC Step Down	25 A	1 V	CSD87588N TPS51219	Fully Populated	Non-Isolated	1	20 V	8 V	300 kHz	Board(s)

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, 5 mm x 2.5 mm LGA, 25 A

Key Features

• Half-Bridge Power Block90% System Efficiency at 20 AUp to 25 A OperationHigh Density – 5 mm × 2.5 mm LGA FootprintDouble Side Cooling CapabilityUltra-Low Profile – 0.48 mm MaxOptimized for 5 V Gate DriveLow Switching LossesLow Inductance PackageRoHS CompliantHalogen FreePb FreeHalf-Bridge Power Block90% System Efficiency at 20 AUp to 25 A OperationHigh Density – 5 mm × 2.5 mm LGA FootprintDouble Side Cooling CapabilityUltra-Low Profile – 0.48 mm MaxOptimized for 5 V Gate DriveLow Switching LossesLow Inductance PackageRoHS CompliantHalogen FreePb Free

Description

The CSD87588N NexFET™ power block II is a highly-optimized design for synchronous buck applications offering high current and high efficiency capability in a small 5 mm × 2.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate driver from an external controller/driver. The CSD87588N NexFET™ power block II is a highly-optimized design for synchronous buck applications offering high current and high efficiency capability in a small 5 mm × 2.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate driver from an external controller/driver.
