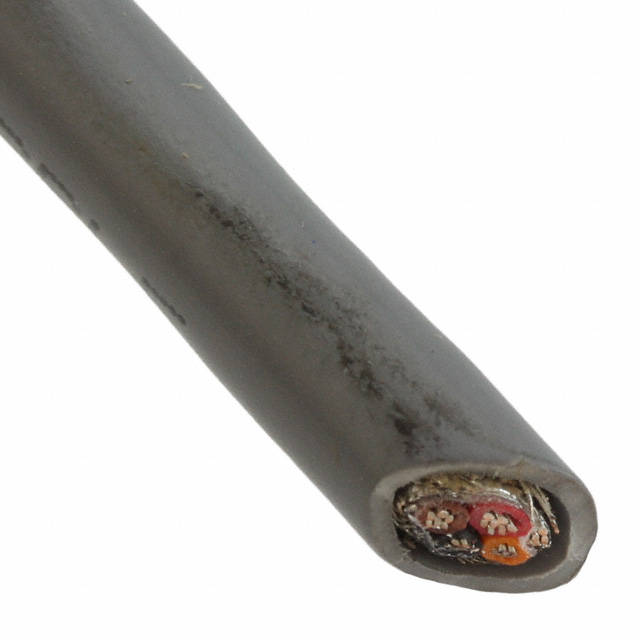

77204 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 4COND 22AWG SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Voltage | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Features | Length | Length | Conductor Material | Number of Conductors | Jacket (Insulation) Material | Wire Gauge | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 100 % | 5.51 mm | 0.217 in | 0.813 mm | 0.032 in | Multi-Conductor | 600 V | ISO 10993 | -50 °C | 105 ░C | Slate | 30 AWG | 7 | Braid Foil | Biological Compatibility | 304.8 m | 1000 ft | Copper Tinned | 4 | Polyphenylene Ether Modified (mPPE) | 22 AWG | Polyphenylene Ether Modified (mPPE) | ||
ALPHA WIRE | Aluminum Copper Tinned | 100 % | 5.51 mm | 0.217 in | 0.813 mm | 0.032 in | Multi-Conductor | 600 V | ISO 10993 | -50 °C | 105 ░C | Slate | 30 AWG | 7 | Braid Foil | Biological Compatibility | Copper Tinned | 4 | Polyphenylene Ether Modified (mPPE) | 22 AWG | Polyphenylene Ether Modified (mPPE) | 100 ft | 30.5 m |
