C01610I012 Series

Catalog

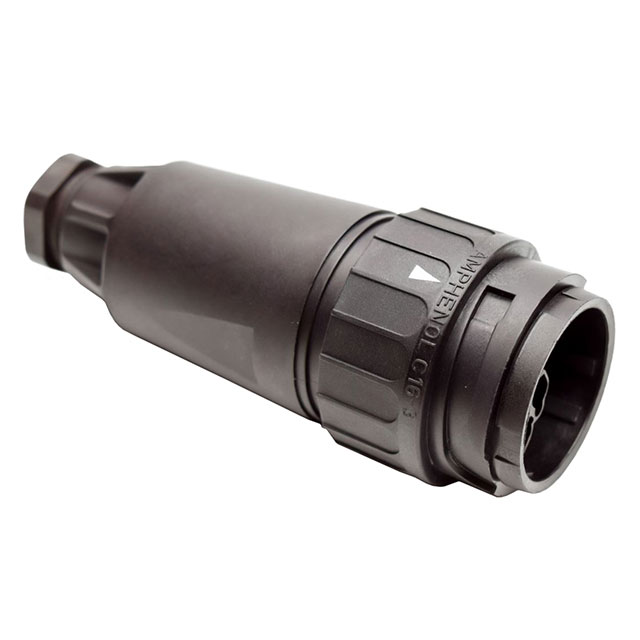

CONN PLUG HSNG MALE 13POS INLINE

Part	Type	Material Flammability Rating	Connector Type	Housing Color	Ingress Protection	Fastening Type	Orientation	Features	Contact Shape	Contact Type	Mounting Type	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Number of Positions [custom]	Includes	Note	Shielding	Shell Size - Insert [custom]
Amphenol Tuchel Industrial C01610I0120032	For Male Pins	UL94 V-0	Plug Housing	Black	IP65 - Dust Tight Water Resistant	Bayonet Lock	N (Normal)	Backshell Cable Clamp Coupling Nut	Circular	Crimp	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	125 °C	-40 C	1.6 mm 2.5 mm	13	1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector	Contacts Not Included	Unshielded	2
Amphenol Tuchel Industrial C01610I0120042	For Male Pins	UL94 V-0	Plug Housing	Black	IP65 - Dust Tight Water Resistant	Bayonet Lock	N (Normal)	Backshell Cable Clamp Coupling Nut	Circular	Crimp	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	125 °C	-40 C	1.6 mm 2.5 mm	13	1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector	Contacts Not Included	Unshielded	2
