G125-FV2 Series

Catalog

13+13 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. FOR LATCHES (T+R) ROHS COMPLIANT: YES

Part	Contact Shape	Contact Material	Applications	Insulation Material	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Current Rating (Amps)	Contact Type	Fastening Type	Connector Type	Material Flammability Rating	Termination	Number of Rows [custom]	Number of Positions Loaded	Insulation Color	Features	Number of Positions	Contact Finish - Mating	Number of Positions [custom]

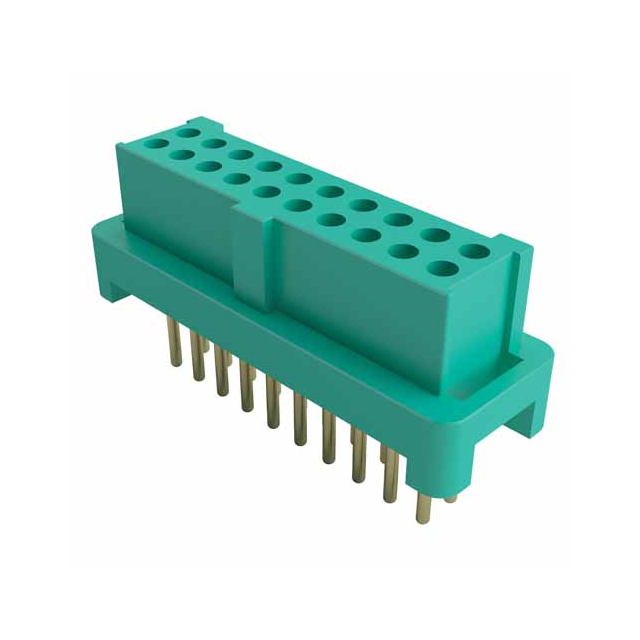

Harwin Inc. G125-FV22605L0R	Circular	Copper Alloy	Automotive General Purpose	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	5.25 mm	0.207 in	0.049 in	1.25 mm	150 °C	-65 ░C	1.25 mm	0.049 in	Gold	Board to Board Cable	8 µin	0.203 µm	4.5 mm	0.177 in	Through Hole	2 A	Female Socket	Latch Holder	Receptacle	UL94 V-0	Solder	2	All	Green	Pick and Place Polarizing Key	26	Gold
Harwin Inc. G125-FV25005L0R	Circular	Copper Alloy	Automotive General Purpose	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	5.25 mm	0.207 in	0.049 in	1.25 mm	150 °C	-65 ░C	1.25 mm	0.049 in	Gold	Board to Board Cable	8 µin	0.203 µm	4.5 mm	0.177 in	Through Hole	2 A	Female Socket	Latch Holder	Receptacle	UL94 V-0	Solder	2	All	Green	Pick and Place Polarizing Key	50	Gold

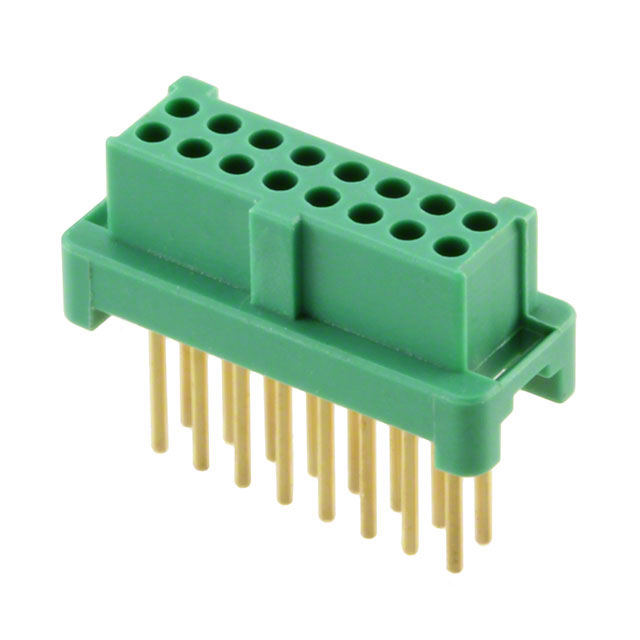

Harwin Inc. G125-FV21605L0P	Circular	Copper Alloy	Automotive General Purpose	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	5.25 mm	0.207 in	0.049 in	1.25 mm	150 °C	-65 ░C	1.25 mm	0.049 in	Gold	Board to Board Cable	8 µin	0.203 µm	4.5 mm	0.177 in	Through Hole	2 A	Female Socket	Latch Holder	Receptacle	UL94 V-0	Solder	2	All	Green	Pick and Place Polarizing Key	16	Gold
Harwin Inc. G125-FV20605L0P	Circular	Copper Alloy	Automotive General Purpose	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	5.25 mm	0.207 in	0.049 in	1.25 mm	150 °C	-65 ░C	1.25 mm	0.049 in	Gold	Board to Board Cable	8 µin	0.203 µm	4.5 mm	0.177 in	Through Hole	2 A	Female Socket	Latch Holder	Receptacle	UL94 V-0	Solder	2	All	Green	Pick and Place Polarizing Key	6	Gold

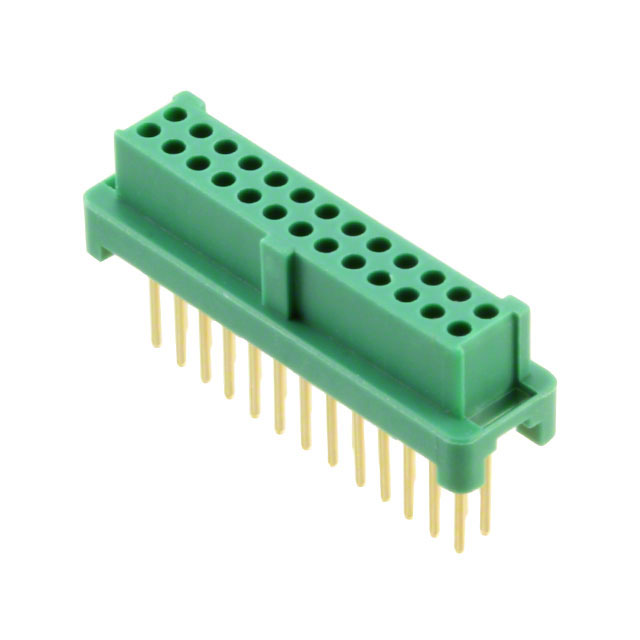

Harwin Inc. G125-FV22605L0P	Circular	Copper Alloy	Automotive General Purpose	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	5.25 mm	0.207 in	0.049 in	1.25 mm	150 °C	-65 ░C	1.25 mm	0.049 in	Gold	Board to Board Cable	8 µin	0.203 µm	4.5 mm	0.177 in	Through Hole	2 A	Female Socket	Latch Holder	Receptacle	UL94 V-0	Solder	2	All	Green	Pick and Place Polarizing Key	26	Gold

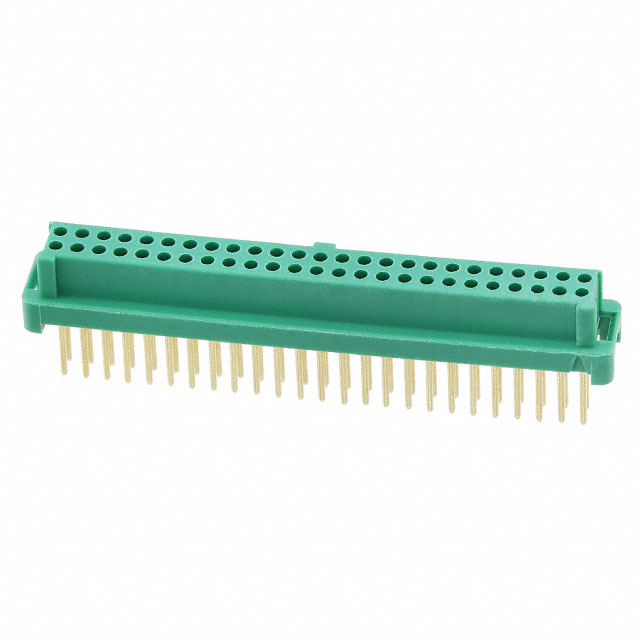

Harwin Inc. G125-FV25005L0P	Circular	Copper Alloy	Automotive General Purpose	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	5.25 mm	0.207 in	0.049 in	1.25 mm	150 °C	-65 ░C	1.25 mm	0.049 in	Gold	Board to Board Cable	8 µin	0.203 µm	4.5 mm	0.177 in	Through Hole	2 A	Female Socket	Latch Holder	Receptacle	UL94 V-0	Solder	2	All	Green	Pick and Place Polarizing Key	50	Gold

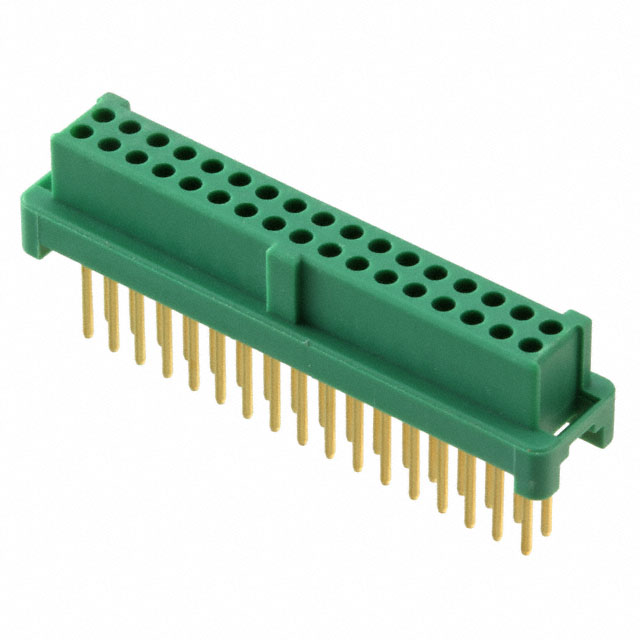

Harwin Inc. G125-FV23405L0P	Circular	Copper Alloy	Automotive General Purpose	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	5.25 mm	0.207 in	0.049 in	1.25 mm	150 °C	-65 ░C	1.25 mm	0.049 in	Gold	Board to Board Cable	8 µin	0.203 µm	4.5 mm	0.177 in	Through Hole	2 A	Female Socket	Latch Holder	Receptacle	UL94 V-0	Solder	2	All	Green	Pick and Place Polarizing Key		Gold	34

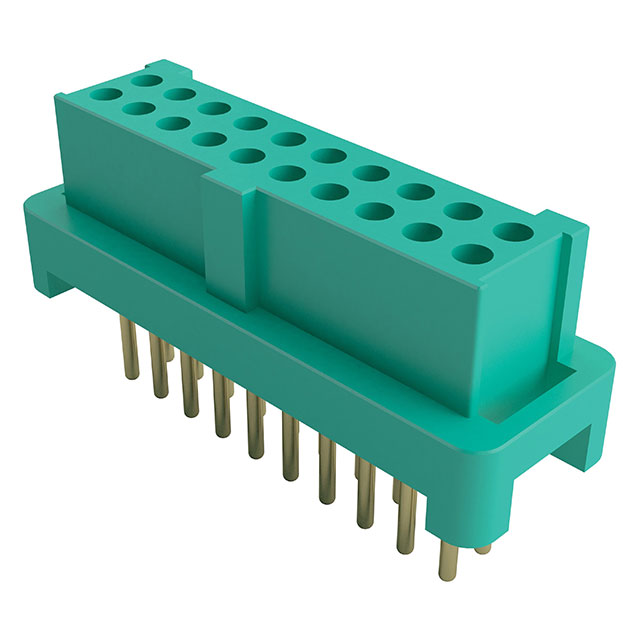

Harwin Inc. G125-FV22005L0R	Circular	Copper Alloy	Automotive General Purpose	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	5.25 mm	0.207 in	0.049 in	1.25 mm	150 °C	-65 ░C	1.25 mm	0.049 in	Gold	Board to Board Cable	8 µin	0.203 µm	4.5 mm	0.177 in	Through Hole	2 A	Female Socket	Latch Holder	Receptacle	UL94 V-0	Solder	2	All	Green	Pick and Place Polarizing Key	20	Gold
Harwin Inc. G125-FV23405L0R	Circular	Copper Alloy	Automotive General Purpose	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	5.25 mm	0.207 in	0.049 in	1.25 mm	150 °C	-65 ░C	1.25 mm	0.049 in	Gold	Board to Board Cable	8 µin	0.203 µm	4.5 mm	0.177 in	Through Hole	2 A	Female Socket	Latch Holder	Receptacle	UL94 V-0	Solder	2	All	Green	Pick and Place Polarizing Key		Gold	34
