130035 Series

Manufacturer: Molex

Catalog

CBL CIRC 5POS

Part	Number of Positions (Convert From)	Ingress Protection	Number of Positions (Convert To)	Convert From (Adapter End)	Connector Style	Orientation (Convert From)	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Orientation (Convert To)	Housing Material	Primary Material	Voltage Rating	Housing Color	Mounting Type	Current Rating (Amps)	Features	Number of Positions (Convert To)	Shell Size - Insert (Convert From)
Molex 1300350058

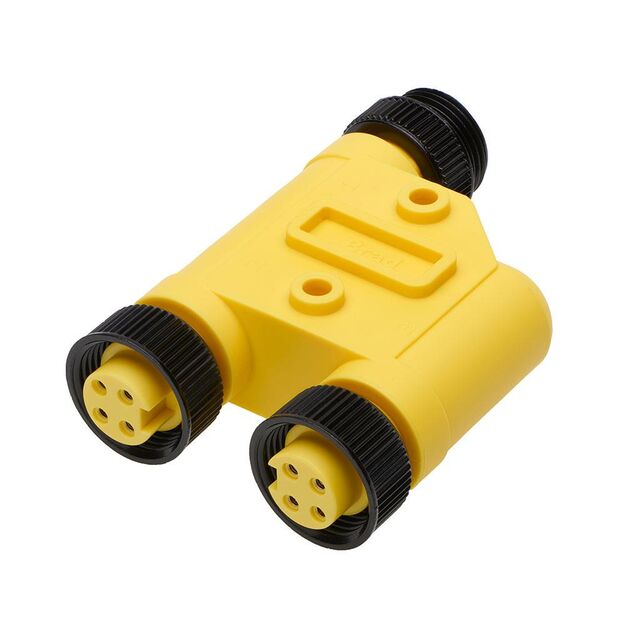

Molex 1300350122	4	IP67 - Dust Tight Waterproof	4	Male Pins	Distributor Y-Shaped	Keyed	Female Sockets (2)	-20 C	80 C	Unshielded	Keyed	Thermoplastic Elastomer (TPE)	Plastic	600 VAC	Yellow	Free Hanging (In-Line)	10 A
Molex 1300350015	5	IP67 - Dust Tight Waterproof	5	Male Pins	Gender Changer	Keyed	Male Pins	-20 C	80 C	Unshielded	Keyed	Thermoplastic Elastomer (TPE)	Plastic	50 V	Gray	Free Hanging (In-Line)	4 A

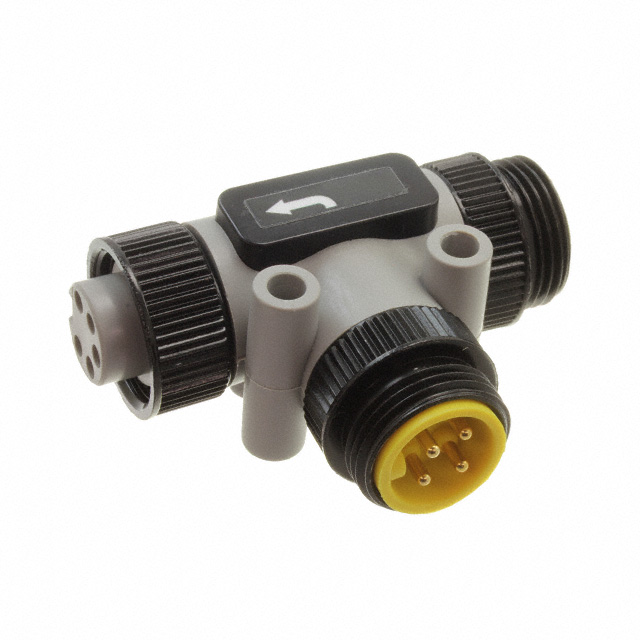

Molex 1300350068	5	IP68 - Dust Tight Waterproof	5	Female Sockets	Distributor T-Shaped	Keyed	Female Sockets (2)	-20 C	80 C	Unshielded	Keyed	Thermoplastic Elastomer (TPE)		30 VDC	Gray	Free Hanging (In-Line)	4 A	Coupling Nut	2

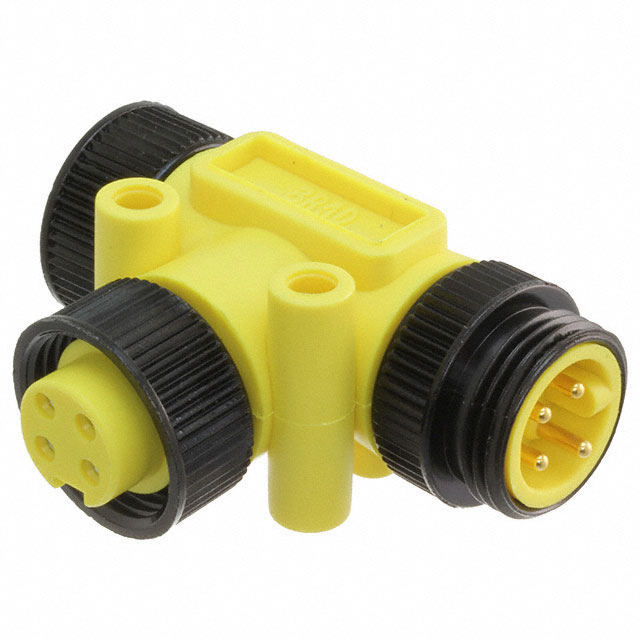

Molex 1300350085	4	IP67 - Dust Tight Waterproof	4	Female Sockets	Distributor T-Shaped		Female Sockets (1) Male Pins (1)	-20 C	80 C	Unshielded		Thermoplastic Elastomer (TPE)			Yellow	Free Hanging (In-Line)		Coupling Nut		0.875 in

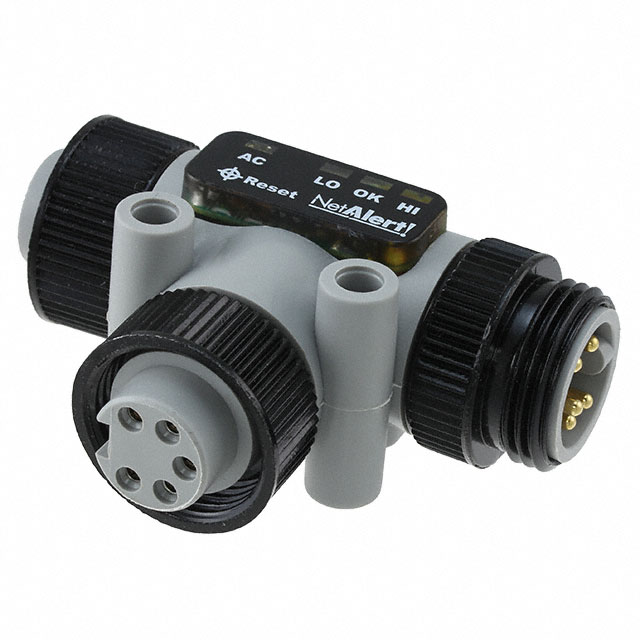

Molex 1300350061	5	IP67 - Dust Tight Waterproof	5	Female Sockets	Distributor T-Shaped		Female Sockets (1) Male Pins (1)	-20 C	80 C	Unshielded		Thermoplastic Elastomer (TPE)		30 VDC	Gray	Free Hanging (In-Line)	8 A	Coupling Nut LED	2	0.875 in

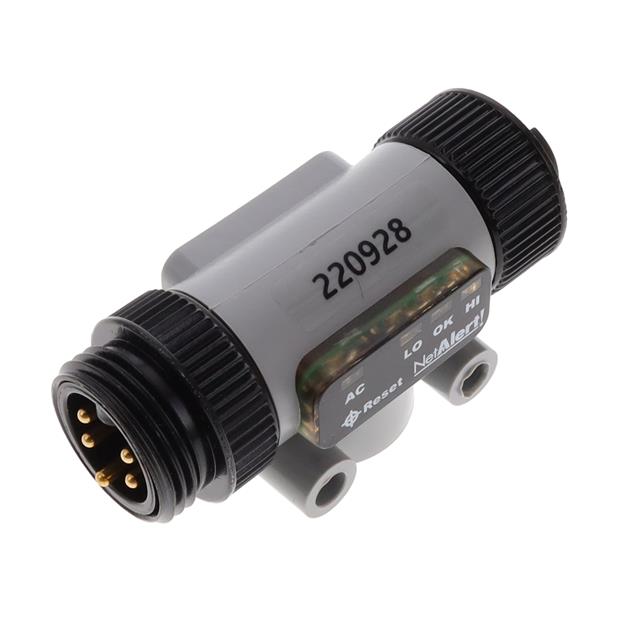

Molex 1300350008	5	IP67 - Dust Tight Waterproof	5	Female Sockets	Distributor T-Shaped	Keyed	Female Sockets (1) Male Pins (1)	-20 C	80 C	Unshielded	Keyed	Thermoplastic Elastomer (TPE)		30 VDC	Gray	Free Hanging (In-Line)	8 A	Coupling Nut LED	2	0.875 in
Molex 1300350064
Molex 1300350076
Molex 1300350100
