S22L2FRGB Series

Catalog

S22 PRO SERIES: 14-COLOR RGB INDICATOR-FDA

Part	Lens Style	Panel Cutout Shape	Termination Style	Lens Transparency	Current	Ratings	Voltage [Max]	Voltage [Min]	Type	Ingress Protection	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating
BANNER ENGINEERING S22L2FRGB14Q	Round with Flat Top	Round	Quick Connect	Diffused	70 mA	DC	30 V	10 V	LED	IP66 IP67 IP69K	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	22 mm	0.866 in	0.3 mcd 0.9 mcd 1.2 mcd 1.8 mcd 1.9 mcd 2 mcd 2.2 mcd

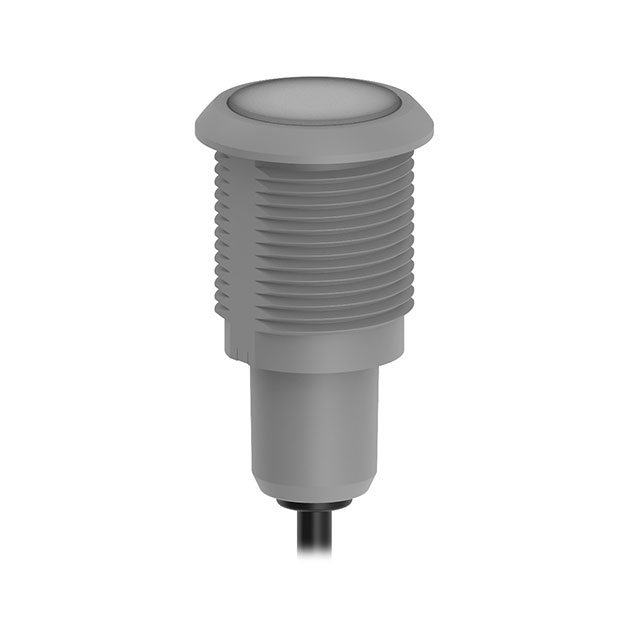

BANNER ENGINEERING S22L2FRGB14QP	Round with Flat Top	Round		Diffused	70 mA	DC	30 V	10 V	LED	IP66 IP67 IP69K	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	22 mm	0.866 in	0.3 mcd 0.9 mcd 1.2 mcd 1.8 mcd 1.9 mcd 2 mcd 2.2 mcd

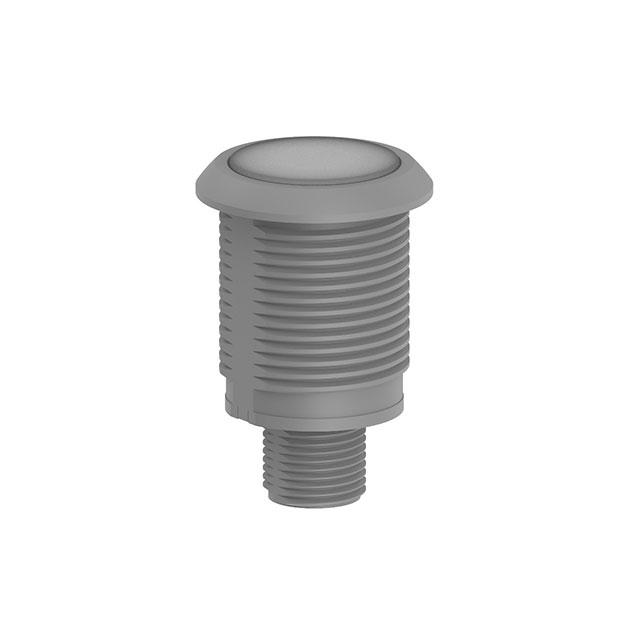

BANNER ENGINEERING S22L2FRGB7Q	Round with Flat Top	Round	Quick Connect	Diffused	70 mA	DC	30 V	10 V	LED	IP66 IP67 IP69K	Blue Cyan Green Magenta Red White - Cool Yellow	22 mm	0.866 in	0.3 mcd 0.8 mcd 1.2 mcd 1.9 mcd 2 mcd 2.5 mcd
BANNER ENGINEERING S22L2FRGB7QP	Round with Flat Top	Round		Diffused	70 mA	DC	30 V	10 V	LED	IP66 IP67 IP69K	Blue Cyan Green Magenta Red White - Cool Yellow	22 mm	0.866 in	0.3 mcd 0.8 mcd 1.2 mcd 1.9 mcd 2 mcd 2.5 mcd
