470025CY Series

Catalog

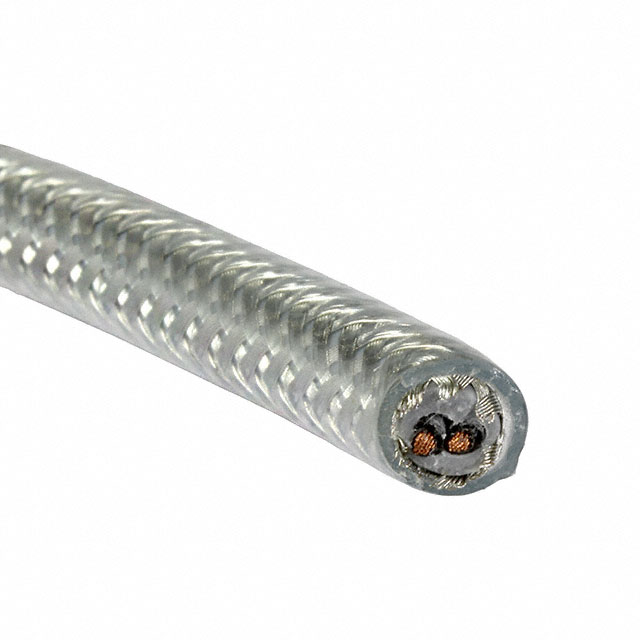

CABLE 2COND 21AWG CLEAR SHLD 5M

Part	Wire Gauge	Shield Coverage	Cable Type	Conductor Insulation	Length	Length	Number of Conductors	Voltage	Jacket Color	Features	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Conductor Strand	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Shield Type	Jacket (Insulation) Material	Length
ALPHA WIRE 470025CY CL432	21 AWG	80 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)	20 m	65.62 ft	2	300 V	Clear	Chemical Resistant Oil Resistant UV Resistant	1 m	3.28 ft	0.28 in	7.11 mm	-40 °C	80 C	Copper Bare	0.007 in 20	0.8 mm	0.0315 in	Copper Tinned	Braid	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 470025CY CL033	21 AWG	80 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)	100 m	328.1 ft	2	300 V	Clear	Chemical Resistant Oil Resistant UV Resistant			0.28 in	7.11 mm	-40 °C	80 C	Copper Bare	0.007 in 20	0.8 mm	0.0315 in	Copper Tinned	Braid	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 470025CY CL321	21 AWG	80 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)	50 m	164 ft	2	300 V	Clear	Chemical Resistant Oil Resistant UV Resistant			0.28 in	7.11 mm	-40 °C	80 C	Copper Bare	0.007 in 20	0.8 mm	0.0315 in	Copper Tinned	Braid	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 470025CY GE432	21 AWG	80 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)	10 m 20 m 30 m 984.3 ft	32.81 ft 65.62 ft 98.43 ft	2	300 V	Gray	Chemical Resistant Oil Resistant UV Resistant	1 m	3.28 ft	0.28 in	7.11 mm	-40 °C	80 C	Copper Bare	0.007 in 20	0.8 mm	0.0315 in	Copper Tinned	Braid	Poly-Vinyl Chloride (PVC)	300 m
