TPS61376 Series

25-V, 4.5-A, boost converter with 2.5% accuracy input average current limit & true disconnection

Catalog

25-V, 4.5-A, boost converter with 2.5% accuracy input average current limit & true disconnection

Part	Number of Outputs	Synchronous Rectifier	Function	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Mounting Type	Output Configuration	Topology	Supplier Device Package	Output Type	Package / Case	Voltage - Input (Min) [Min]	Frequency - Switching

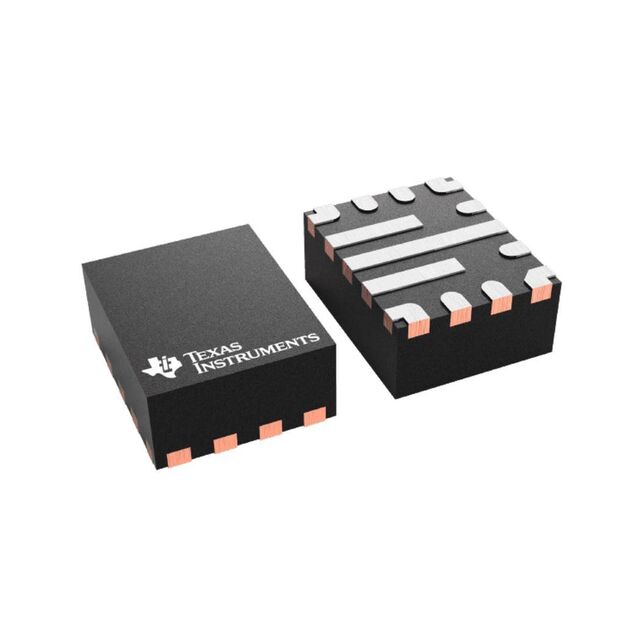

Texas Instruments TPS61376RYHR	1		Step-Up	25 V	23 V	-40 °C	125 ¯C	4.5 V	Surface Mount	Positive	Boost	13-VQFN-HR (2.5x2)	Adjustable	13-PowerVFQFN	2.9 V	1.2 MHz

Catalog

25-V, 4.5-A, boost converter with 2.5% accuracy input average current limit & true disconnection

Key Features

• Wide input voltage and output voltage rangeInput voltage range: 2.9V to 23VOutput voltage range: 4.5V to 25VPeak inductor current limit up to 4.5AProgrammable input average current limit range: 0.1A to 3ASwitching frequency: 1.2MHzIntegrated two MOSFETsISO FET: 40mΩLow-side FET: 50mΩSafety and robust operation featuresOutput overvoltage protectionCycle-by-cycle overcurrent protectionTrue disconnection between input and output during EN shutdownThermal shutdownPrecise EN/UVLO thresholdExternal loop compensation2.5mm × 2.0mm HotRod™ Lite VQFN packageWide input voltage and output voltage rangeInput voltage range: 2.9V to 23VOutput voltage range: 4.5V to 25VPeak inductor current limit up to 4.5AProgrammable input average current limit range: 0.1A to 3ASwitching frequency: 1.2MHzIntegrated two MOSFETsISO FET: 40mΩLow-side FET: 50mΩSafety and robust operation featuresOutput overvoltage protectionCycle-by-cycle overcurrent protectionTrue disconnection between input and output during EN shutdownThermal shutdownPrecise EN/UVLO thresholdExternal loop compensation2.5mm × 2.0mm HotRod™ Lite VQFN package

Description

The TPS61376 is a high voltage non-synchronous boost converter with input average current limit and true load disconnect functions. The input average current limit threshold can be programmed through the ILIM pin from 0.1A to 3.0A. The isolation FET between the VP and SW pin will completely cut off the path between input and output when the device is disabled. The TPS61376 has a wide input voltage range from 2.9V to 23V and output voltage covers up to 25V. The TPS61376 implements the peak current mode with the adaptive off-time control topology. The device works in PWM mode at moderate to heavy loads. At the light load conditions, the device enters PFM mode to maintain high efficiency over the entire load current range. The TPS61376 also integrates robust protection features including output overvoltage protection, cycle-by-cycle overcurrent protection and thermal shutdown. The TPS61376 offers a very small solution size with a 2.5mm × 2.0mm HotRod™ Lite VQFN package. The TPS61376 is a high voltage non-synchronous boost converter with input average current limit and true load disconnect functions. The input average current limit threshold can be programmed through the ILIM pin from 0.1A to 3.0A. The isolation FET between the VP and SW pin will completely cut off the path between input and output when the device is disabled. The TPS61376 has a wide input voltage range from 2.9V to 23V and output voltage covers up to 25V. The TPS61376 implements the peak current mode with the adaptive off-time control topology. The device works in PWM mode at moderate to heavy loads. At the light load conditions, the device enters PFM mode to maintain high efficiency over the entire load current range. The TPS61376 also integrates robust protection features including output overvoltage protection, cycle-by-cycle overcurrent protection and thermal shutdown. The TPS61376 offers a very small solution size with a 2.5mm × 2.0mm HotRod™ Lite VQFN package.
