PKB421 Series

Catalog

DC DC CONVERTER 30V 200W

Part	Applications	Efficiency	Type	Package / Case	Voltage - Output 1	Standard Number	Features	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Approval Agency	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Control Features	Power (Watts)	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]

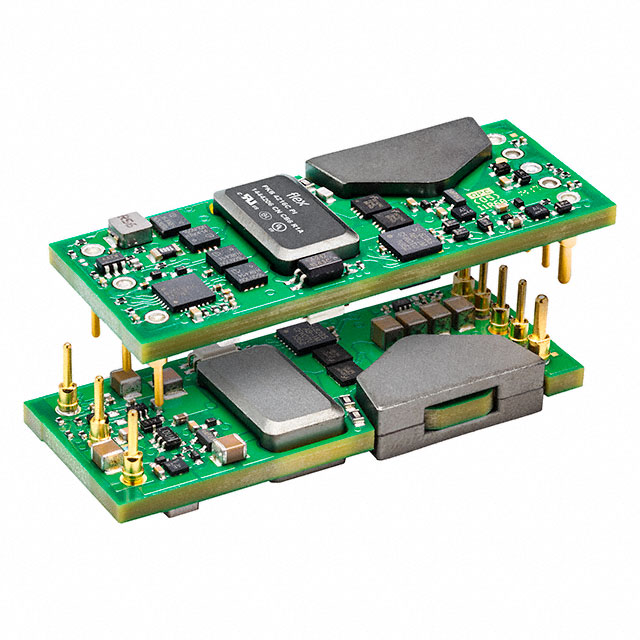

Flex Power Modules PKB4216CSI	ITE (Commercial)	95.1 %	Isolated Module	Eighth Brick	30 V	62368-1	Adjustable Output Remote On/Off Remote Sense	1.5 kV	0.34 in	8.6 mm	2.3 in	22.7 mm	0.89 in	58.4 mm	Surface Mount	CB CSA IEC TUV UL	6.7 A	1	75 V	36 V	-40 °C	125 °C	Eighth Brick	Active Low Enable	200 Watts
Flex Power Modules PKB4217MPI	ITE (Commercial)	95.5 %	Isolated Module	Eighth Brick	11.4 V	62368-1	Remote On/Off	1.5 kV	0.4 "	10.1 mm	2.3 in	22.7 mm	0.89 in	58.4 mm	Through Hole	CB CSA IEC TUV UL	21 A	1	75 V	38 V	-30 °C	90 °C	Eighth Brick	Active Low Enable	239 W

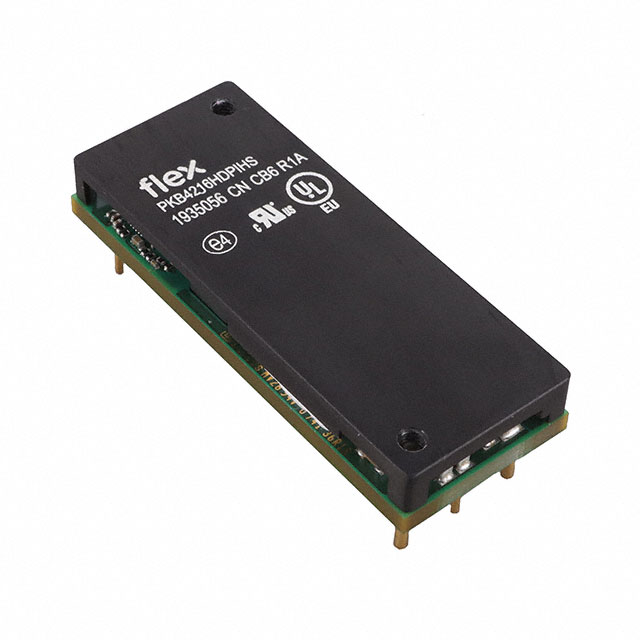

Flex Power Modules PKB4216HDPIHS	ITE (Commercial)	94.5 %	Isolated Module	Eighth Brick	50 V	62368-1	Adjustable Output Baseplate Remote On/Off	2250 VDC	0.52 in	13.2 mm	2.3 in	22.7 mm	0.89 in	58.4 mm	Through Hole	CB CSA IEC TUV UL		1	60 V	36 V	-40 °C	125 °C	Eighth Brick	Active Low Enable	250 W	5 A

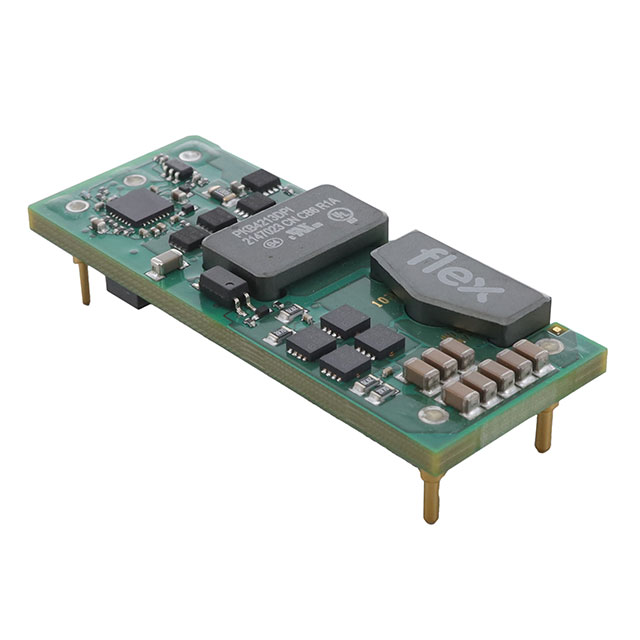

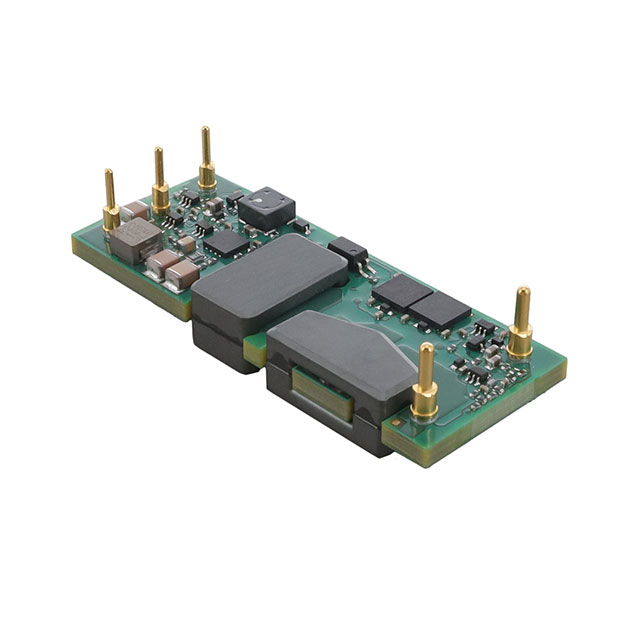

Flex Power Modules PKB4213DPI	ITE (Commercial)	95.4 %	Isolated Module	Eighth Brick	12 V	62368-1	Adjustable Output Remote On/Off	2250 VDC	0.38 in	9.6 mm	2.3 in	22.7 mm	0.89 in	58.4 mm	Through Hole	CB CSA IEC TUV UL	22 A	1	75 V	36 V	-40 °C	125 °C	Eighth Brick	Active Low Enable	264 W
Flex Power Modules PKB4216CPIHV	ITE (Commercial)	95.1 %	Isolated Module	Eighth Brick	30 V	62368-1	Adjustable Output Baseplate Remote On/Off Remote Sense	1.5 kV	0.51 in		2.29 in		1.28 in	58.2 mm	Through Hole	CB CSA IEC TUV UL	6.7 A	1	75 V	36 V	-40 °C	125 °C	Eighth Brick	Active Low Enable	200 Watts		12.9 mm	32.5 mm
Flex Power Modules PKB4211DPI	ITE (Commercial)	95.3 %	Isolated Module	Eighth Brick	5 V	62368-1	Adjustable Output Remote On/Off Remote Sense	2250 VDC	0.38 in	9.6 mm	2.3 in	22.7 mm	0.89 in	58.4 mm	Through Hole	CB CSA IEC TUV UL	40 A	1	75 V	36 V	-40 °C	125 °C	Eighth Brick	Active Low Enable	200 Watts
Flex Power Modules PKB4216CPIHVG	ITE (Commercial)	95.1 %	Isolated Module	Eighth Brick	30 V	62368-1	Adjustable Output Baseplate Remote On/Off Remote Sense	1.5 kV	0.51 in		2.29 in		1.28 in	58.2 mm	Through Hole	CB CSA IEC TUV UL	6.7 A	1	75 V	36 V	-40 °C	125 °C	Eighth Brick	Active Low Enable	200 Watts		12.9 mm	32.5 mm
Flex Power Modules PKB4217NDPI	ITE (Commercial)	95.7 %	Isolated Module	Eighth Brick	10 V	62368-1	Adjustable Output Remote On/Off	2250 VDC	0.38 in	9.6 mm	2.3 in	22.7 mm	0.89 in	58.4 mm	Through Hole	CB CSA IEC TUV UL	25 A	1	75 V	36 V	-40 °C	125 °C	Eighth Brick	Active Low Enable	250 W
Flex Power Modules PKB4216CPIHS	ITE (Commercial)	95.1 %	Isolated Module	Eighth Brick	30 V	62368-1	Adjustable Output Baseplate Remote On/Off Remote Sense	1.5 kV	0.52 in	13.2 mm	2.3 in	22.7 mm	0.89 in	58.4 mm	Through Hole	CB CSA IEC TUV UL	6.7 A	1	75 V	36 V	-40 °C	125 °C	Eighth Brick	Active Low Enable	200 Watts
