PPTC221 Series

Catalog

CONN HDR 22POS 0.1 TIN PCB R/A

Part	Contact Shape	Insulation Material	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Color	Insulation Height	Insulation Height	Contact Type	Fastening Type	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Termination	Number of Positions
Sullins Connector Solutions PPTC221LGBN-RC	Square	Polyester	Phosphor Bronze	0.124 in	3.15 mm	Black	0.1 in	2.54 mm	Female Socket	Push-Pull	Right Angle Through Hole	All	3 A	250 V	0.1 "	2.54 mm	Tin	UL94 V-0	-40 C	105 ░C	1	Header	Solder	22

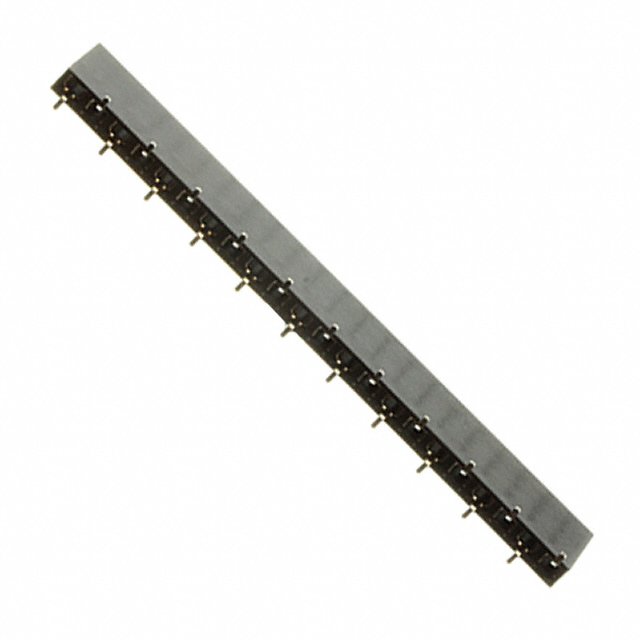

Sullins Connector Solutions PPTC221KFXC	Square	Polyester	Phosphor Bronze			Black	0.28 in	7.1 mm	Female Socket	Push-Pull	Surface Mount	All	3 A	250 V	0.1 "	2.54 mm	Tin	UL94 V-0	-40 C	105 ░C	1	Header Top or Bottom Entry	Solder	22
Sullins Connector Solutions PPTC221LGBN	Square	Polyester	Phosphor Bronze	0.124 in	3.15 mm	Black	0.1 in	2.54 mm	Female Socket	Push-Pull	Right Angle Through Hole	All	3 A	250 V	0.1 "	2.54 mm	Tin	UL94 V-0	-40 C	105 ░C	1	Header	Solder	22
