QSH2818 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

STEPPER MOTORS QMOT STEPPER MOTOR, 28MM, 0.06NM, 0.67A,

Part	Approval Agency	Rotor Inertia	Weight [custom]	Weight [custom]	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Step Angle	Type	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Termination Style	Current Rating (Amps)	Coil Resistance	Voltage - Rated	NEMA Frame Size	Steps per Revolution	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Coil Type	Features	Weight	Weight

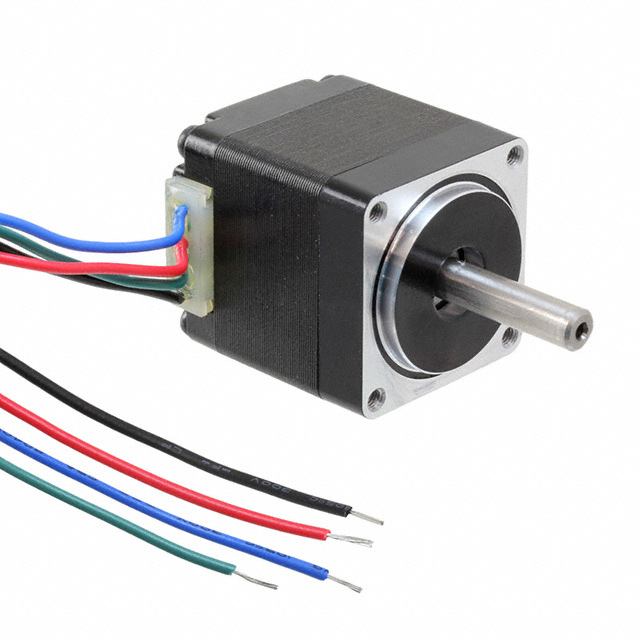

Analog Devices Inc./Maxim Integrated QSH2818-32-07-006	CE	9 gcm²	109.77 g	0.242 lb	0.905 in	22.98 mm	1.8 °	Hybrid	20 mm	0.787 in	Wire Leads	0.67 A	5.6 Ohms	3.8 VDC	11	200	8.49 oz-in	60 mNm	0.197 in	5 mm	5 %	-20 ░C	50 °C	1.1 in	Square	1.1 in	28 mm	28 mm	Bipolar	Flatted Shaft

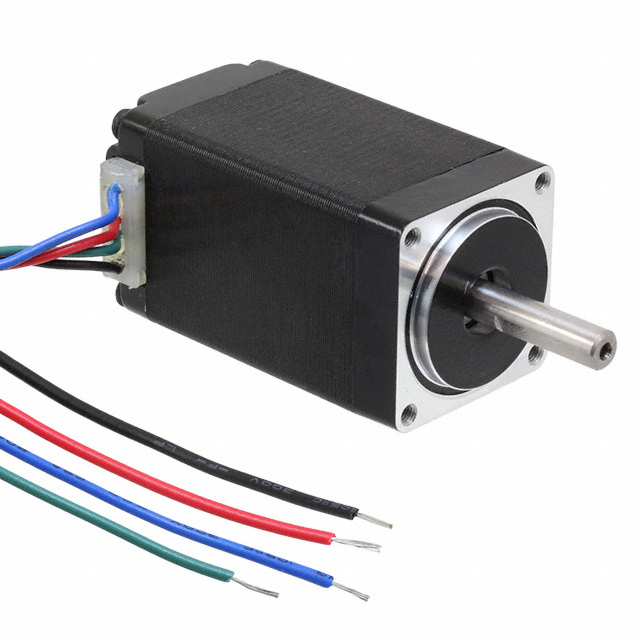

Analog Devices Inc./Maxim Integrated QSH2818-51-07-012	CE	18 gcm²			0.905 in	22.98 mm	1.8 °	Hybrid	20 mm	0.787 in	Wire Leads	0.67 A	9.2 Ohms	6.2 VDC	11	200	17 oz-in	120 mNm	0.197 in	5 mm	5 %	-20 ░C	50 °C	1.1 in	Square	1.1 in	28 mm	28 mm	Bipolar	Flatted Shaft	0.441 lb	200.03 g

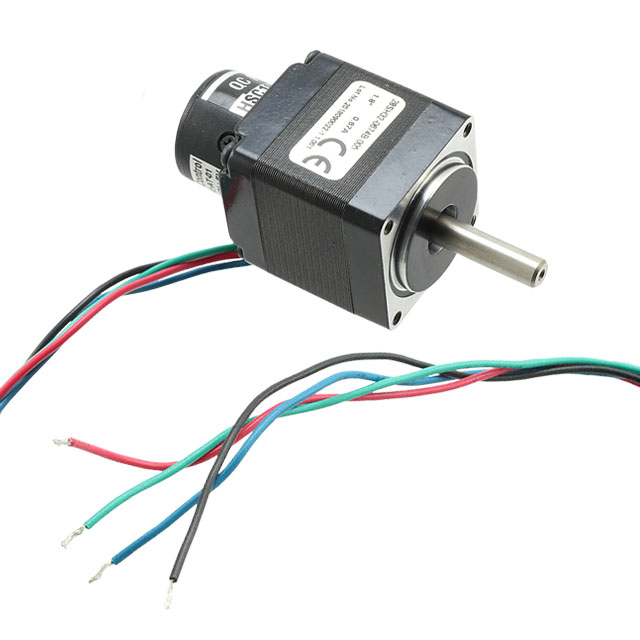

Analog Devices Inc./Maxim Integrated QSH2818-32-07-006-8K	CE	9 gcm²			0.906 in	23 mm	1.8 °	Hybrid	20 mm	0.787 in	Wire Leads	0.67 A	5.6 Ohms	3.8 VDC	11	200	8.49 oz-in	60 mNm	0.197 in	5 mm	5 %	-20 ░C	50 °C	1.1 in	Square	1.1 in	28 mm	28 mm	Bipolar	Flatted Shaft

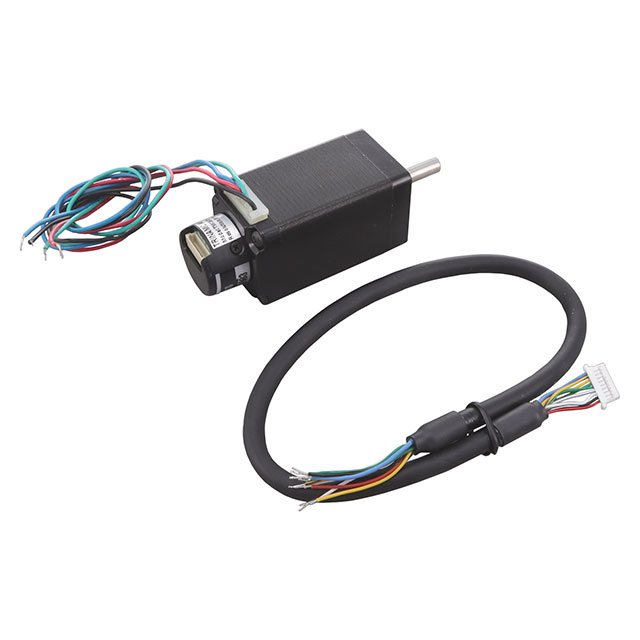

Analog Devices Inc./Maxim Integrated QSH2818-51-07-012-8k	CE	18 gcm²			0.906 in	23 mm	1.8 °	Hybrid	20 mm	0.787 in	Wire Leads	0.67 A	9.2 Ohms	6.2 VDC	11	200	17 oz-in	120 mNm	0.197 in	5 mm	5 %	-20 ░C	50 °C	1.1 in	Square	1.1 in	28 mm	28 mm	Bipolar	Flatted Shaft
