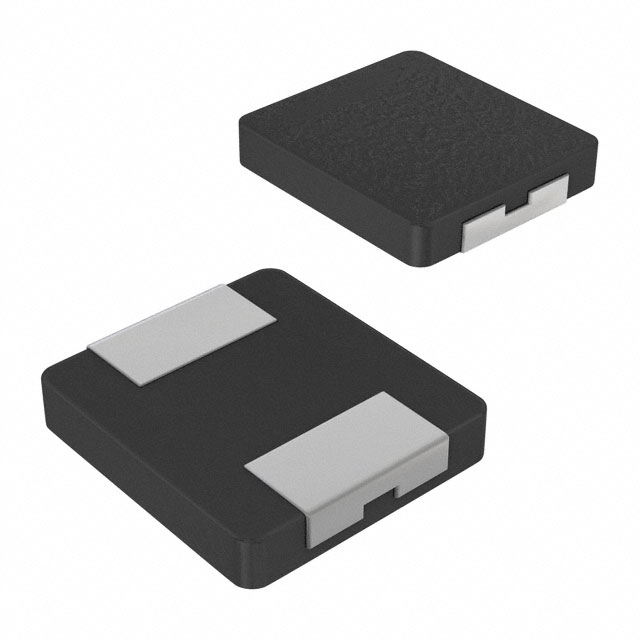

SRP4012TA Series

Catalog

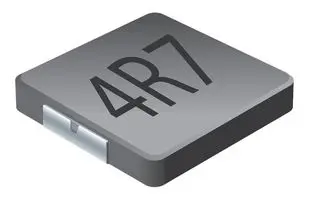

POWER INDUCTOR (SMD), 5.6 ΜH, 1.7 A, SHIELDED, 2.3 A, SRP4012TA SERIES

Part	Current - Saturation (Isat)	Inductance Frequency - Test	Type	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Shielding	Q @ Freq	Frequency - Self Resonant	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Current Rating (Amps)	DC Resistance (DCR) [Max]	Inductance	Supplier Device Package	Package / Case
Bourns Inc. SRP4012TA-5R6M	2.3 A	100 kHz	Drum Core Wirewound	Carbonyl Powder	1.2 mm	0.047 "	AEC-Q200	Shielded	10 100 kHz	30 MHz	Surface Mount	-40 C	150 °C	0.16 in	4.45 mm	0.175 in	4.06 mm	20 %	1.7 A	208 mOhm	5.6 µH	2-SMD	2-SMD
Bourns Inc. SRP4012TA-100M	1.4 A	100 kHz	Drum Core Wirewound	Carbonyl Powder	1.2 mm	0.047 "	AEC-Q200	Shielded	10 100 kHz	23 MHz	Surface Mount	-40 C	150 °C	0.16 in	4.45 mm	0.175 in	4.06 mm	20 %	1.3 A	463 mOhm	10 µH	2-SMD	2-SMD
Bourns Inc. SRP4012TA-R36M	8.5 A	100 kHz	Drum Core Wirewound	Carbonyl Powder	1.2 mm	0.047 "	AEC-Q200	Shielded	10 100 kHz	143 MHz	Surface Mount	-40 C	150 °C	0.16 in	4.45 mm	0.175 in	4.06 mm	20 %	6.5 A	18 mOhm	360 nH	2-SMD	2-SMD
Bourns Inc. SRP4012TA-6R8M	1.7 A	100 kHz	Drum Core Wirewound	Carbonyl Powder	1.2 mm	0.047 "	AEC-Q200	Shielded	10 100 kHz	28 MHz	Surface Mount	-40 C	150 °C	0.16 in	4.45 mm	0.175 in	4.06 mm	20 %	1.5 A	360 mOhm	6.8 µH	2-SMD	2-SMD
Bourns Inc. SRP4012TA-R60M	6 A	100 kHz	Drum Core Wirewound	Carbonyl Powder	1.2 mm	0.047 "	AEC-Q200	Shielded	10 100 kHz	117 MHz	Surface Mount	-40 C	150 °C	0.16 in	4.45 mm	0.175 in	4.06 mm	20 %	5.3 A	26 mOhm	600 nH	2-SMD	2-SMD
