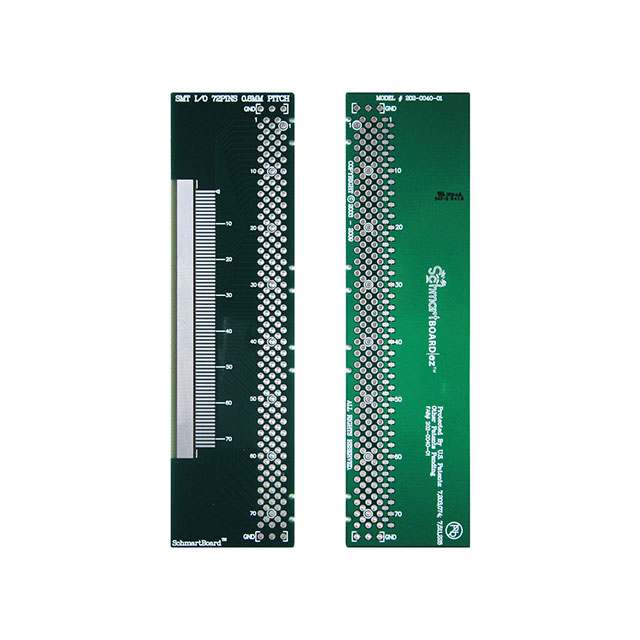

202-0040 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K
BREADBOARD GENERAL PURPOSE NPTH
| Part | Circuit Pattern | Hole Diameter [diameter] | Hole Diameter [diameter] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Proto Board Type | Pitch | Pitch | Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Custom | 0.97 mm | 0.038 in | 101.4 mm | 1.09 " | 27.8 mm | 3.99 " | Breadboard General Purpose | 0.8 mm | 0.032 in | Non-Plated Through Hole (NPTH) |
