FNG-3 Series

Catalog

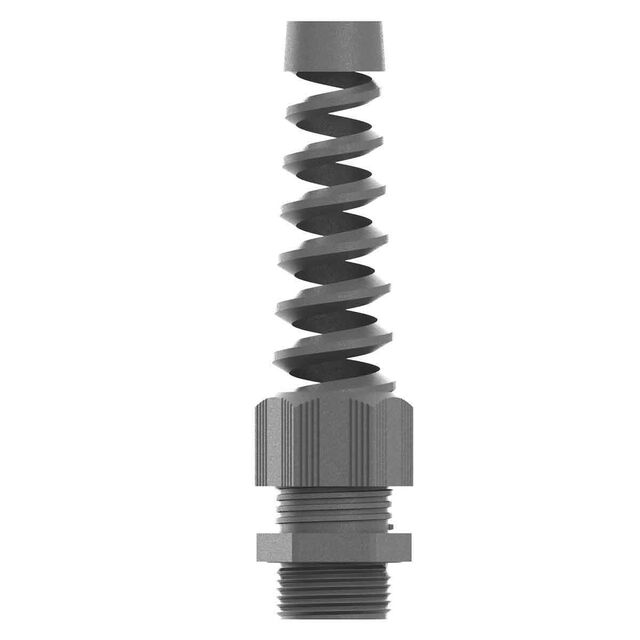

CABLE GLAND 5-10MM 3/8" NPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)
SAB North America FNG-3/8	-20 ░C	100 °C	Gray	Cable Gland	0.197 in	5 mm	17.2 mm	0.675 in	10 mm	0.394 in	0.375 in NPT	0.591 in	15 mm	IP68 - Dust Tight Waterproof
SAB North America FNG-3/4R	-20 ░C	100 °C	Black	Cable Gland	0.354 in	9 mm	26.7 mm	1.05 in			0.75 "	0.591 in	15 mm	IP68 - Dust Tight Waterproof	0.63 in	16 mm
