6102UE Series
Manufacturer: Belden Inc.
Beta
⌘K

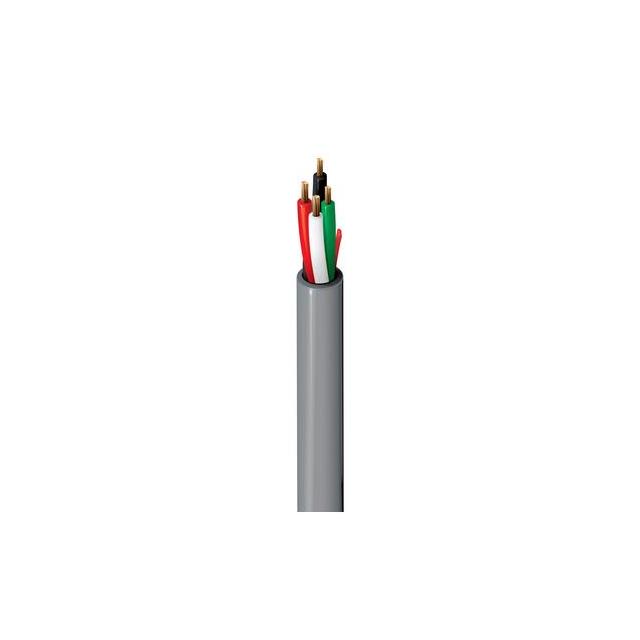

CABLE 4COND 14AWG NATURAL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket (Insulation) Material | Voltage | Ratings | Usage | Length | Length | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket Color | Conductor Insulation | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Cable Type | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 75 ░C | 0 °C | 14.5 AWG | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 150 V | UL Style CMP | Security Sound | 304.8 m | 1000 ft | Copper Bare | 6.53 mm | 0.257 in | Rip Cord | Natural | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.381 mm | 0.015 in | Multi-Conductor | 4 |
