67.22.9 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K

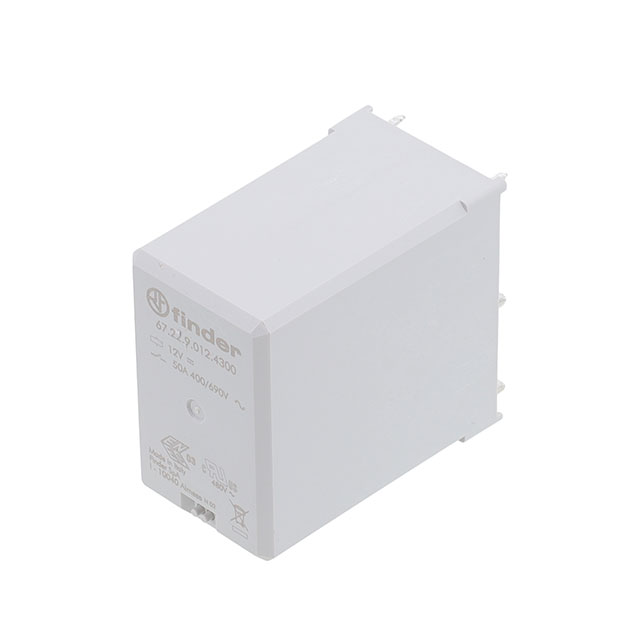

RELAY GEN PURPOSE DPST 50A 12V
| Part | Coil Resistance | Contact Form | Contact Material | Must Release Voltage | Release Time | Load - Max Switching | Relay Type | Coil Current | Coil Type | Switching Voltage [Max] | Mounting Type | Termination Style | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 85 Ohms | DPST-NO (2 Form A) | Silver Tin Oxide (AgSnO) | 0.6 VDC | 5 ms | 34500 VA | General Purpose | 141 mA | Non Latching | 690 VAC | Through Hole | PC Pin | 50 A | 70 °C | -40 C | 12 VDC | 25 ms |
