ADS5401 Series
Manufacturer: Texas Instruments
Beta
⌘K

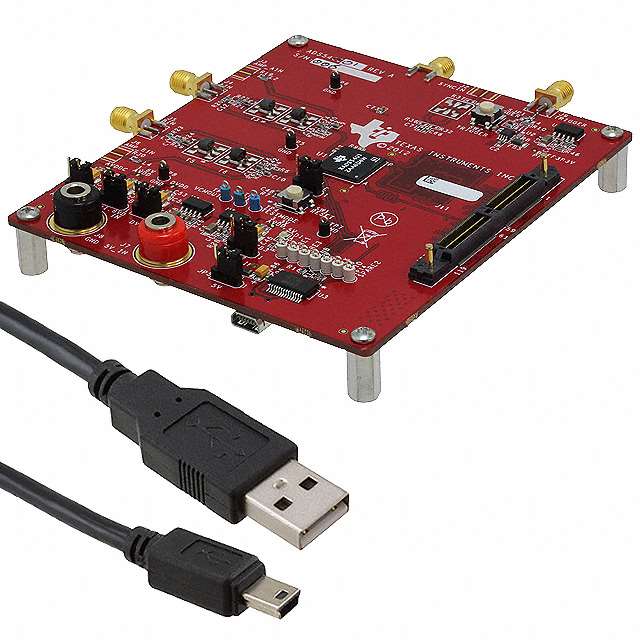

ADS5401EVM EVALUATION MODULE
| Part | Number of A/D Converters | Number of Bits | Power (Typ) @ Conditions | Supplied Contents | Input Range | Data Interface | Sampling Rate (Per Second) | Utilized IC / Part | Configuration | Input Type | Architecture | Reference Type | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Mounting Type | Package / Case | Ratio - S/H:ADC | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Number of Inputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 | 12 bits | 1.33 W | Board(s) | 1 Vpp | DDR LVDS | 800 M | ADS5401 | ||||||||||||||
 Texas Instruments | 1 | 12 bits | Parallel | 800 M | S/H-ADC | Differential | Pipelined | External Internal | 1.7 V | 1.9 V | Surface Mount | 196-LFBGA | 1:1 | 85 °C | -40 °C | 1.7 V 3.15 V | 1.9 V 3.45 V | 1 | ||||
Texas Instruments | 1 | 12 bits | Parallel | 800 M | S/H-ADC | Differential | Pipelined | External Internal | 1.7 V | 1.9 V | Surface Mount | 196-LFBGA | 1:1 | 85 °C | -40 °C | 1.7 V 3.15 V | 1.9 V 3.45 V | 1 |
