895-044 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 44POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Color	Read Out	Contact Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Card Type	Termination	Number of Rows [custom]	Number of Positions/Bay/Row	Gender	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Contact Finish	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows	Features
EDAC Inc. 895-044-520-808	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Black	Dual	Cantilever	Through Hole	0.25 Ám	10 Áin	44	Non Specified - Dual Edge	Solder	2	22	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	Gold	0.1 "	2.54 mm	125 °C	-40 C
EDAC Inc. 895-044-524-403	Polyphenylene Sulfide (PPS)		Copper Alloy	Black	Single	Cantilever	Through Hole	0.25 Ám	10 Áin	44	Non Specified - Single Edge	Solder		44	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Top Mount Opening	Gold	0.1 "	2.54 mm	125 °C	-40 C	1	0.116 "	2.95 mm	1

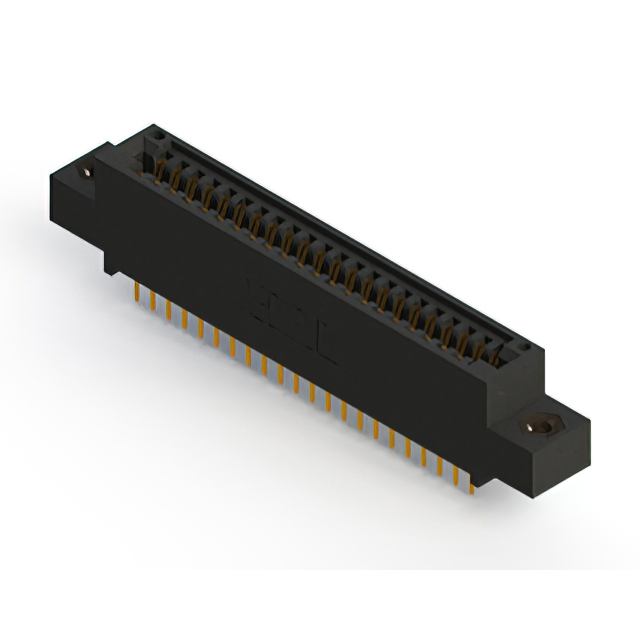

EDAC Inc. 895-044-525-508	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Black	Dual	Cantilever	Through Hole	0.25 Ám	10 Áin	44	Non Specified - Dual Edge	Solder	2	22	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening	Gold	0.1 "	2.54 mm	125 °C	-40 C

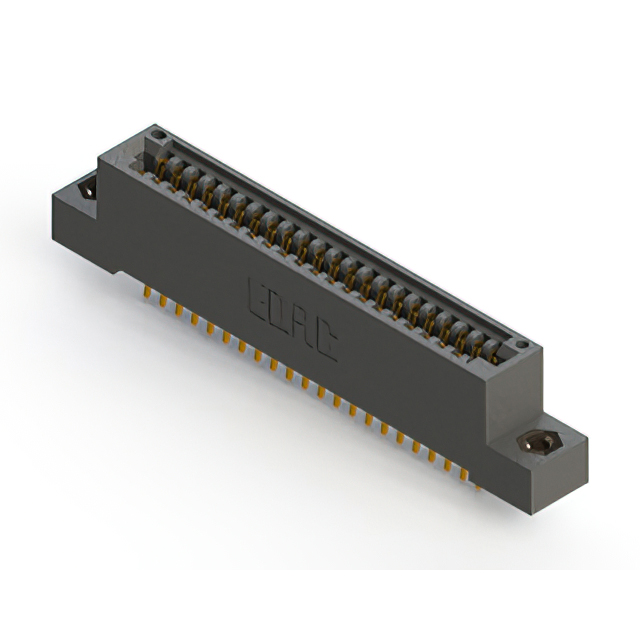

EDAC Inc. 895-044-556-208	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Black	Dual	Cantilever	Board Edge Straddle Mount	0.25 Ám	10 Áin	44	Non Specified - Dual Edge	Solder	2	22	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	0.1 "	2.54 mm	125 °C	-40 C					Card Extender
EDAC Inc. 895-044-540-612	Polyphenylene Sulfide (PPS)		Copper Alloy	Black	Single	Cantilever	Through Hole	0.25 Ám	10 Áin	44	Non Specified - Single Edge	Wire Wrap		44	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded	Gold	0.1 "	2.54 mm	125 °C	-40 C	1	0.128 "	3.25 mm	1
EDAC Inc. 895-044-541-102	Polyphenylene Sulfide (PPS)		Copper Alloy	Black	Single	Cantilever	Through Hole	0.25 Ám	10 Áin	44	Non Specified - Single Edge	Wire Wrap		44	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	Gold	0.1 "	2.54 mm	125 °C	-40 C	1	0.128 "	3.25 mm	1

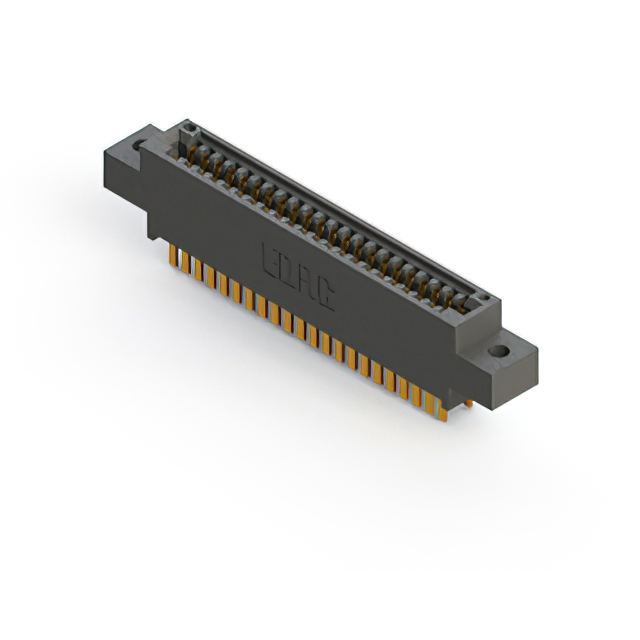

EDAC Inc. 895-044-544-802	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Black	Dual	Cantilever	Through Hole	0.25 Ám	10 Áin	44	Non Specified - Dual Edge	Wire Wrap	2	22	Female	0.07 in 1.78 mm	0.054 in 1.37 mm		Gold	0.1 "	2.54 mm	125 °C	-40 C		0.128 "	3.25 mm

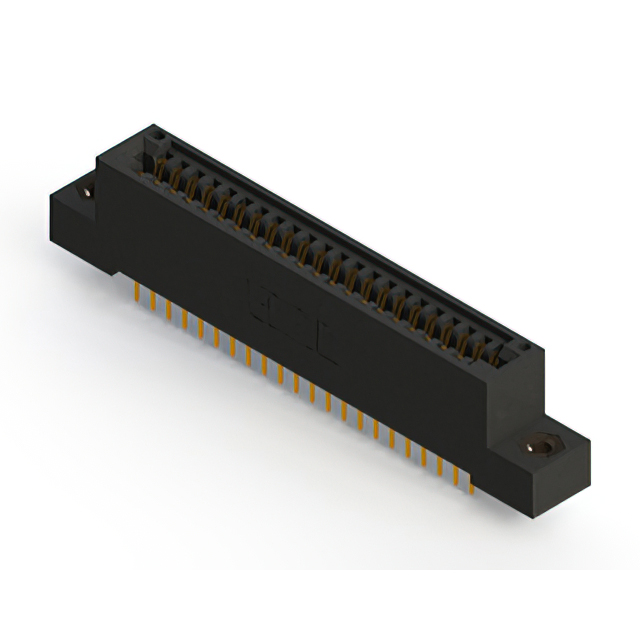

EDAC Inc. 895-044-525-208	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Black	Dual	Cantilever	Through Hole	0.25 Ám	10 Áin	44	Non Specified - Dual Edge	Solder	2	22	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	0.1 "	2.54 mm	125 °C	-40 C

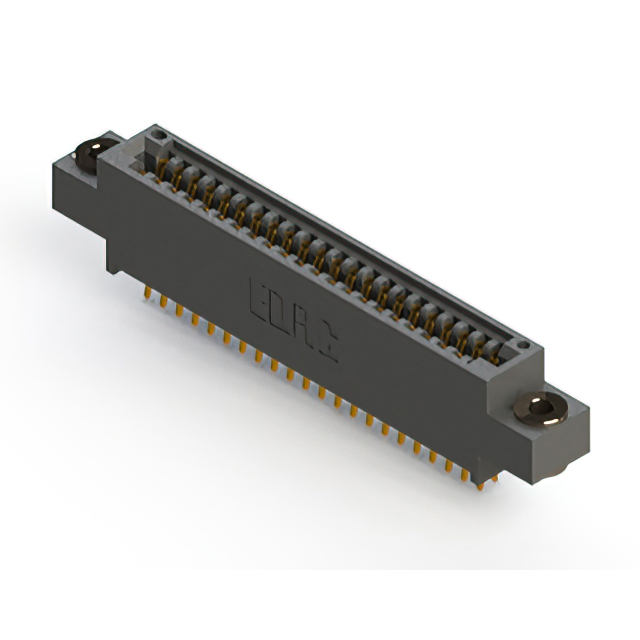

EDAC Inc. 895-044-556-803	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Black	Dual	Cantilever	Board Edge Straddle Mount	0.25 Ám	10 Áin	44	Non Specified - Dual Edge	Solder	2	22	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Top Mount Opening	Gold	0.1 "	2.54 mm	125 °C	-40 C		0.116 "	2.95 mm		Card Extender
EDAC Inc. 895-044-556-804	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Black	Dual	Cantilever	Board Edge Straddle Mount	0.25 Ám	10 Áin	44	Non Specified - Dual Edge	Solder	2	22	Female	0.07 in 1.78 mm	0.054 in 1.37 mm		Gold	0.1 "	2.54 mm	125 °C	-40 C		0.156 "	3.96 mm		Card Extender
