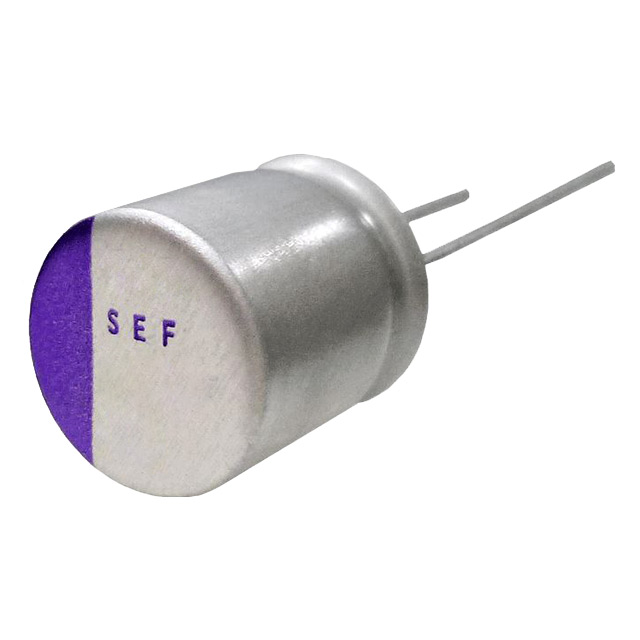

16SEF Series

Catalog

CAP ALUM POLY 270UF 20% 16V TH

Part	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Voltage - Rated	Applications	Mounting Type	Tolerance	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Type	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Panasonic Electronic Components 16SEF270M	270 µF	-55 C	125 °C	0.315 in	8 mm	1.04 A	1000 Hrs	0.138 in	3.5 mm	16 V	General Purpose	Through Hole	20 %	52 mA	22 mOhms	Polymer	Can Radial	0.276 in	7 mm
Panasonic Electronic Components 16SEF1000M	1000 µF	-55 C	125 °C	0.394 in	10 mm	1.7 A	1000 Hrs	0.197 "	5 mm	16 V	General Purpose	Through Hole	20 %	85 mA	12 mOhms	Polymer	Can Radial			0.512 "	13 mm
Panasonic Electronic Components 16SEF560M	560 µF	-55 C	125 °C	0.315 in	8 mm	1.56 A	1000 Hrs	0.138 in	3.5 mm	16 V	General Purpose	Through Hole	20 %	78 mA	14 mOhms	Polymer	Can Radial	0.472 in				12 mm
