Power to the Board EXTREME ENERGETIC REC 4P-25S
Power to the Board EXTREME ENERGETIC REC 4P-25S
| Part | Voltage Rating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Termination | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Color | Number of Positions | Connector Type | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions Loaded | Mounting Type | Number of Rows | Number of Columns [custom] | Contact Layout, Typical | Pitch | Pitch | Number of Positions Loaded | Features | Number of Columns |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

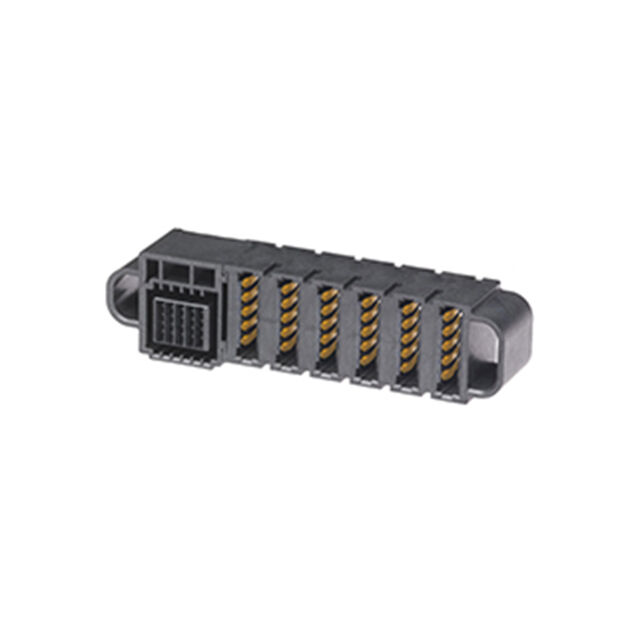

 Molex | 600 VAC | UL94 V-0 | -40 C | 105 ░C | 100 A | Press-Fit | 4 | 25 | Black | 29 | Blade Sockets Female Sockets Receptacle | Power | 30 Áin | 0.76 Ám | Gold | All | Right Angle Through Hole | 5 | |||||||

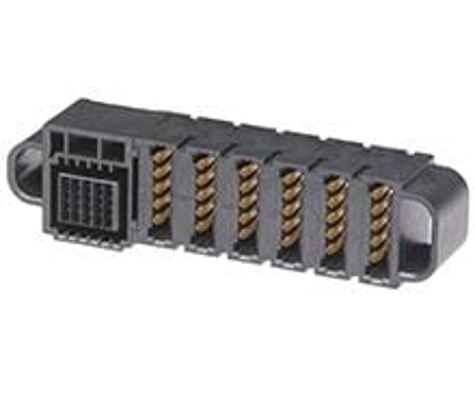

 Molex | Press-Fit | Black | 4 | Receptacle Female Blade Sockets | Power | 30 Áin | 0.76 Ám | Gold | All | Right Angle Through Hole | 1 | 4 | 4 Power | 0.301 in | 7.65 mm | ||||||||||
 Molex | 600 VAC | UL94 V-0 | -40 C | 105 ░C | 100 A | Press-Fit | Black | 4 | Blade Sockets Female Sockets Receptacle | EXTreme Ten60Power | 30 Áin | 0.76 Ám | Gold | Through Hole | 1 | 4 Power | 0.301 in | 7.65 mm | 4 | Mating Guide | |||||

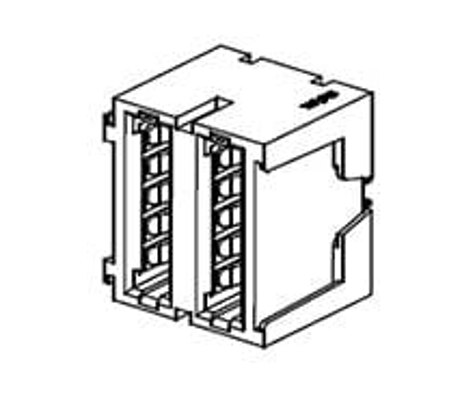

 Molex | |||||||||||||||||||||||||
Molex | |||||||||||||||||||||||||
Molex | 600 VAC | UL94 V-0 | -40 C | 105 ░C | 100 A | Press-Fit | Black | 7 | Blade Sockets Female Sockets Receptacle | Power | 30 Áin | 0.76 Ám | Gold | Through Hole | 1 | 7 Power | 0.301 in | 7.65 mm | 7 | Mating Guide | 7 | ||||
 Molex | 600 VAC | UL94 V-0 | -40 C | 105 ░C | 100 A | Press-Fit | Black | 6 | Receptacle Female Blade Sockets | Power | 30 Áin | 0.76 Ám | Gold | All | Right Angle Through Hole | 1 | 6 Power | 0.301 in | 7.65 mm | 6 |
