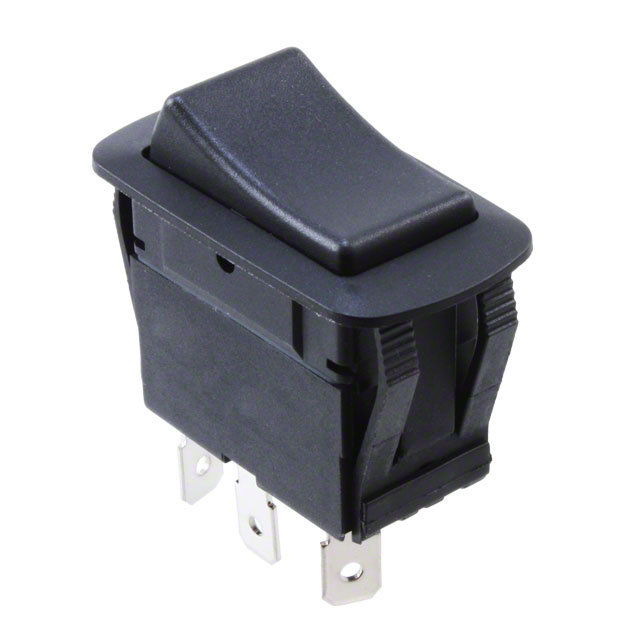

KGC2BNB1 Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH ROCKER SPDT 20A 125V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Marking | Mounting Type | Voltage Rating - DC | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Actuator Type | Ingress Protection | Color - Actuator/Cap | Current Rating (Amps) | Switch Function | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 100000 Cycles | 6000 Cycles | 21.2 mm | 36.6 mm | No Marking | Panel Mount Snap-In | 14 V | Quick Connect - 0.250" (6.3mm) | 85 °C | -20 ░C | 125 V | Concave (Curved) | IP56 - Dust Protected Water Resistant | Black | 20 A 21 A | On-On | SPDT |
