21790 Series
Manufacturer: Pflitsch
Beta
⌘K

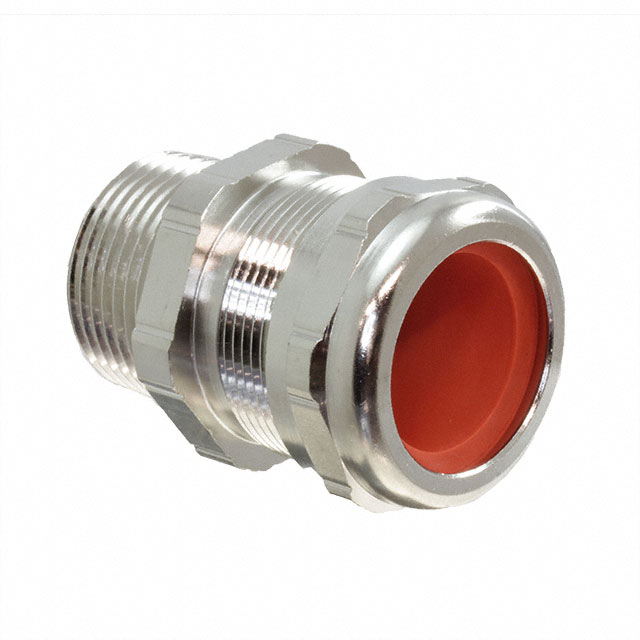

CABLE GLAND 20.07-24.89MM 1" NPT
| Part | Panel Hole Size | Panel Hole Size | Type | Ingress Protection | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) [Min] | Includes | Material | Color | Thread Length | Thread Length | Operating Temperature [Min] | Operating Temperature [Max] | Outside Cable Diameter (Max) | Outside Cable Diameter (Max) [Max] [diameter] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | 33.3 mm | 1.311 in | Cable Gland | IP68 - Dust Tight Waterproof NEMA 4X | 20.07 mm | 0.79 in | Sealing Ring | Brass Nickel Plated | Silver | 0.79 in | 20.07 mm | -40 C | 300 °C | 24.89 mm | 0.98 in | 1" NPT |
