FXLA0104 Series

Low-Voltage Dual-Supply 4-Bit Voltage Translator with Configurable Voltage Supplies and Signal Levels, 3-State Outputs, and Auto Direction Sensing

Manufacturer: ON Semiconductor

Catalog

Low-Voltage Dual-Supply 4-Bit Voltage Translator with Configurable Voltage Supplies and Signal Levels, 3-State Outputs, and Auto Direction Sensing

Part	Translator Type	Voltage - VCCB [Max]	Voltage - VCCB [Min]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Channel Type	Voltage - VCCA [Max]	Voltage - VCCA [Min]	Number of Circuits	Output Type	Channels per Circuit	Data Rate
ON Semiconductor FXLA0104QFX-F106	Voltage Level	3.6 V	1.1 V	12-UFQFN	Surface Mount	85 °C	-40 °C	Bidirectional	3.6 V	1.1 V	1	Non-Inverted Tri-State	4	140 Mbps
ON Semiconductor FXLA0104QFX	Voltage Level	3.6 V	1.1 V	12-UFQFN	Surface Mount	85 °C	-40 °C	Bidirectional	3.6 V	1.1 V	1	Non-Inverted Tri-State	4	140 Mbps

Catalog

Low-Voltage Dual-Supply 4-Bit Voltage Translator with Configurable Voltage Supplies and Signal Levels, 3-State Outputs, and Auto Direction Sensing

Key Features

• Bi-Directional Interface between Two Levels: from 1.1V to 3.6V

• Fully Configurable: Inputs and Outputs Track VCC

• Non-Preferential Power-Up; Either VCCMay Be Powered Up First

• Outputs Switch to 3-State if Either VCCis at GND

• Power-Off Protection

• Bus-Hold on Data Inputs Eliminates the Need for Pull-Up Resistors; Do Not Use Pull-Up Resistors on A or B Ports

• Control Input (OE) Referenced to VCCAVoltage

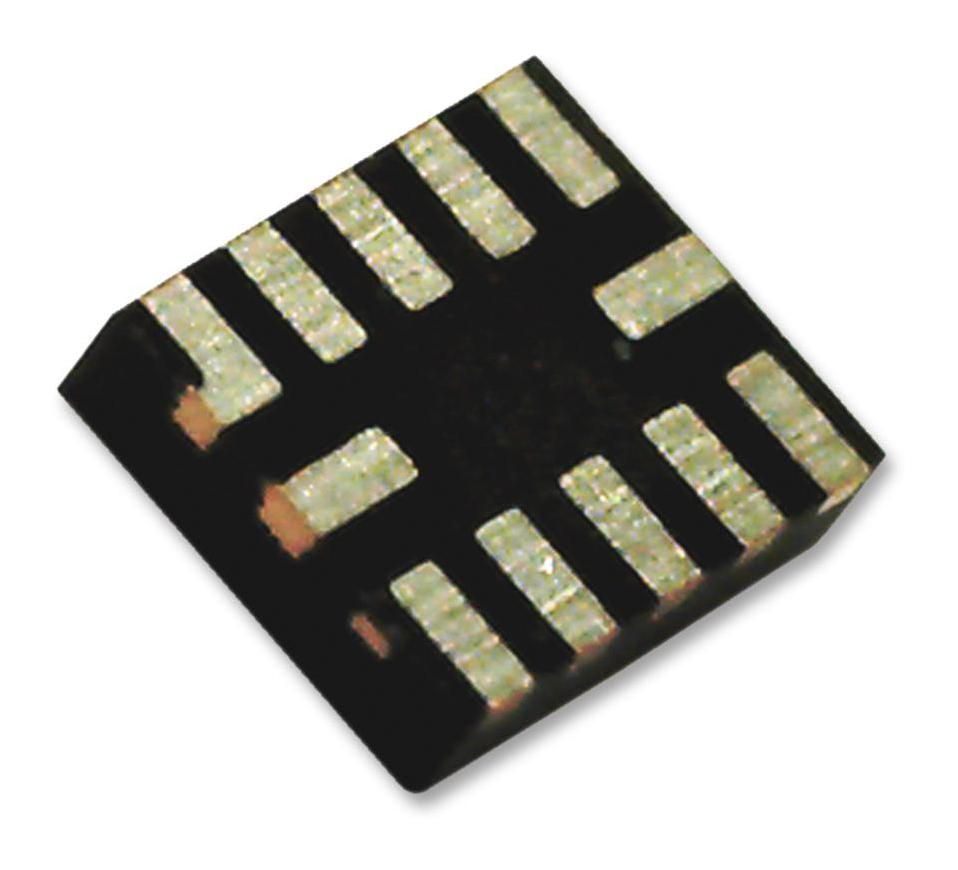

• Available in the 12-Lead, 1.7mm x 2.0mm UMLP Package

• Direction Control Not Necessary

• 100Mbps Throughput when Translating Between 1.8V and 2.5V

• ESD Protection Exceeds:

• 6kV HBM (per JESD22-A114 & Mil Std 883e3015.7)

• 2kV CDM (per ESD STM 5.3)

Description

The FXLA0104 is a configurable dual-voltage supply translator for both uni-directional and bi-directional voltage translation between two logic levels. The device allows translation between voltages as high as 3.6V to as low as 1.1V. The A port tracks the VCCAlevel and the B port tracks the VCCBlevel. This allows for bi-directional voltage translation over a variety of voltage levels: 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V.The device remains in three-state as long as either VCC=0V, allowing either VCCto be powered up first. Internal power-down control circuits place the device in 3-state if either VCCis removed.The OE input, when LOW, disables both the A and B ports by placing them in a 3-state condition. The OEinput is supplied by VCCA.The FXLA0104 supports bi-directional translation without the need for a direction control pin. The two ports of the device have auto-direction sense capability. Either port may sense an input signal and transfer it as an output signal to the other port.
