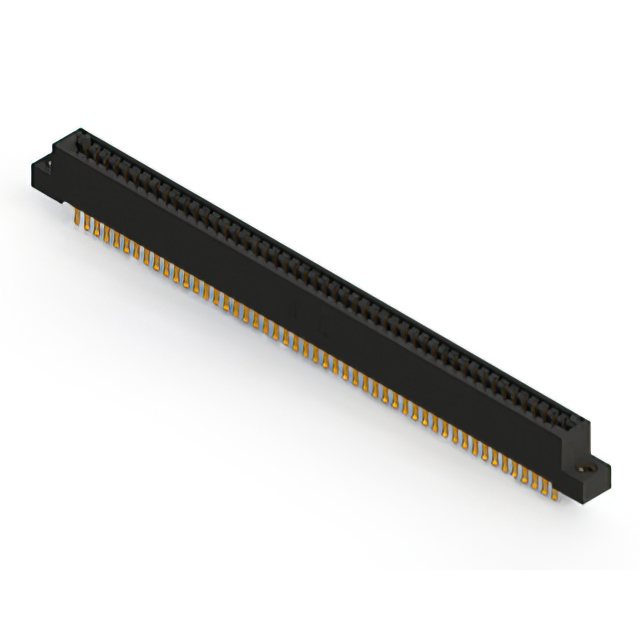

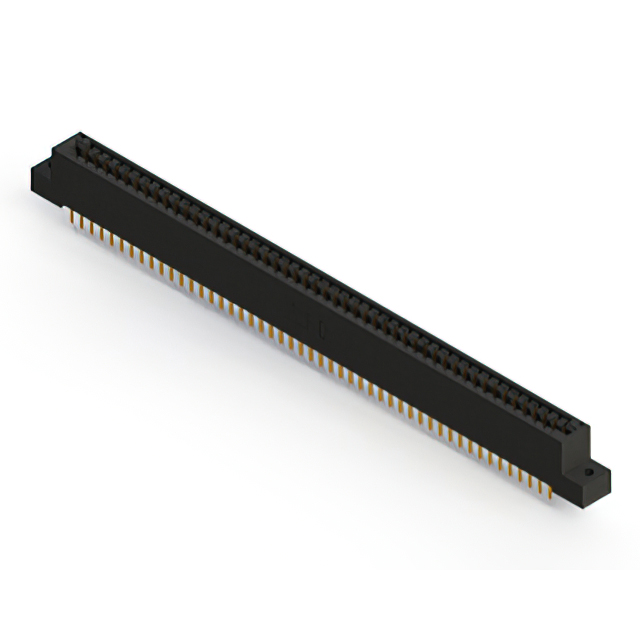

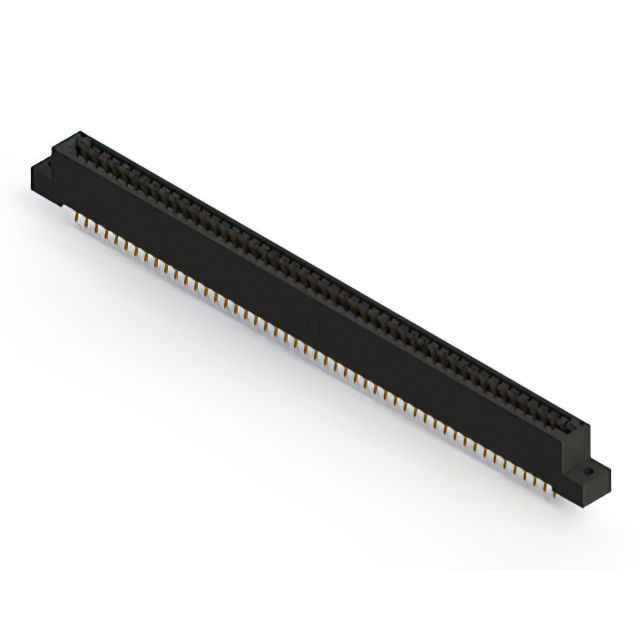

396-098 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 98POS 0.125
...
| Part | Pitch [x] | Pitch [x] | Number of Rows | Material - Insulation | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Termination | Number of Positions | Card Type | Features | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Contact Type | Contact Material | Color | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

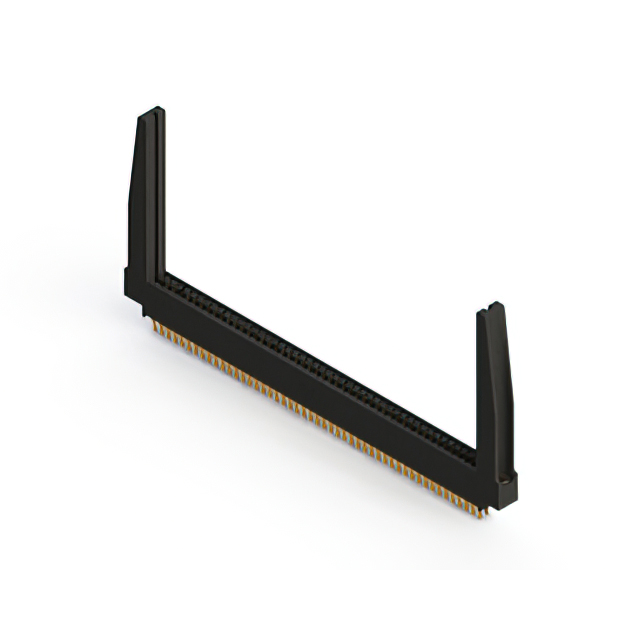

 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Card Extender | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Dual | ||
 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | |||
 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | ||||||
 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | 3.25 mm | 0.128 in | ||||
 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | |||
 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Dual | |||||
 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | |||
 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | |||
 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Solder Wire Wrap | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 10 Áin | 0.25 Ám | Dual | |||||
 EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 98 | Non Specified - Dual Edge | Card Extender | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Dual |
