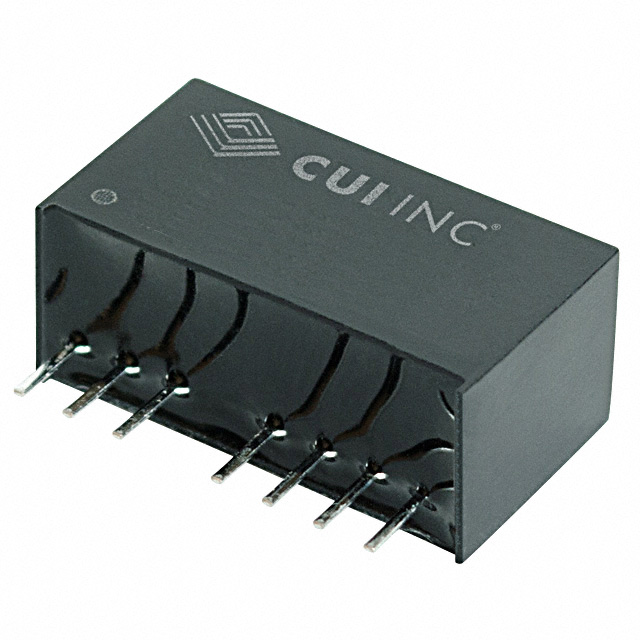

PRMC1 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 5V 1W

Part	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Applications	Voltage - Isolation	Voltage - Input (Min) [Min]	Number of Outputs	Features	Type	Current - Output (Max) [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Standard Number	Approval Agency	Current - Output (Max)	Voltage - Output 2	Control Features
CUI Inc. PRMC1-D24-S5-S	36 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	18 V	1	OCP SCP	Isolated Module	200 mA	76 %	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	5 V	55024 55032	EN
CUI Inc. PRMC1-D48-S12-S	75 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	36 V	1	OCP SCP	Isolated Module	83 mA	81 %	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	12 V	55024 55032	EN
CUI Inc. PRMC1-D48-D12-S	75 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	36 V	2	SCP	Isolated Module		80 %	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	12 V	55024 55032	EN	42 mA	-12 V
CUI Inc. PRMC1-D12-S9-S	18 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	9 V	1	Remote On/Off SCP	Isolated Module	111 mA	79 %	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	9 V	55024 55032	EN			Active Low Enable
CUI Inc. PRMC1-D5-S12-S	9 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	4.5 V	1	OCP SCP	Isolated Module	83 mA	77 %	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	12 V	55024 55032	EN
CUI Inc. PRMC1-D12-S15-S	18 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	9 V	1	OCP SCP	Isolated Module	67 mA	81 %	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	15 V	55024 55032	EN
CUI Inc. PRMC1-D24-S24-S	36 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	18 V	1	OCP SCP	Isolated Module	42 mA		0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	24 V	55024 55032	EN
CUI Inc. PRMC1-D24-S3-S	36 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	18 V	1	Remote On/Off SCP	Isolated Module	303 mA	75 %	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	3.3 V	55024 55032	EN			Active Low Enable
CUI Inc. PRMC1-D12-S3-S	18 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	9 V	1	Remote On/Off SCP	Isolated Module	303 mA	75 %	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	3.3 V	55024 55032	EN			Active Low Enable
CUI Inc. PRMC1-D12-S5-S	18 V	-40 C	105 ░C	8-SIP Module 7 Leads	Through Hole	ITE (Commercial)	3000 V	9 V	1	OCP SCP	Isolated Module	200 mA	76 %	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	5 V	55024 55032	EN
