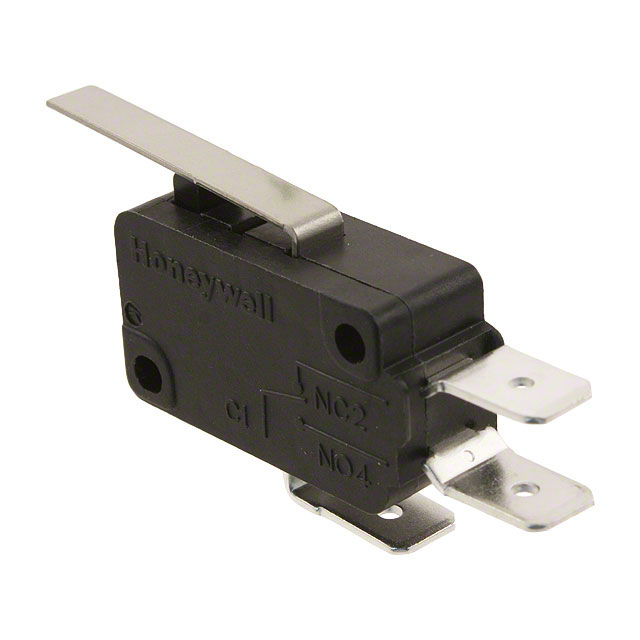

V15H22 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 22A 250V
| Part | Voltage Rating - AC | Switch Function | Release Force | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Pretravel | Pretravel | Circuit | Overtravel [custom] | Overtravel [custom] | Operating Force | Electrical Life | Differential Travel | Differential Travel | Mechanical Life | Current Rating (Amps) | Operating Position | Operating Position | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 250 V | On-Mom | 10 gf | Chassis Mount | 150 °C | -25 °C | Quick Connect - 0.250" (6.3mm) | 0.125 in | 3.2 mm | SPDT | 0.051 " | 1.3 mm | 60 gf | 10000 Cycles | 1.2 mm | 0.047 in | 5000000 Cycles | 22 A | 15.3 mm | 0.602 in | Lever Straight |
 Honeywell Sensing and Productivity Solutions | 125 V | On-Mom | 10 gf | Chassis Mount | 150 °C | -25 °C | Quick Connect - 0.250" (6.3mm) | 0.131 in | 3.3 mm | SPDT | 0.062 " | 1.6 mm | 60 gf | 2.2 mm | 0.086 in | 1000000 Cycles | 22 A | 20.6 mm | 0.812 in | Lever Roller |
