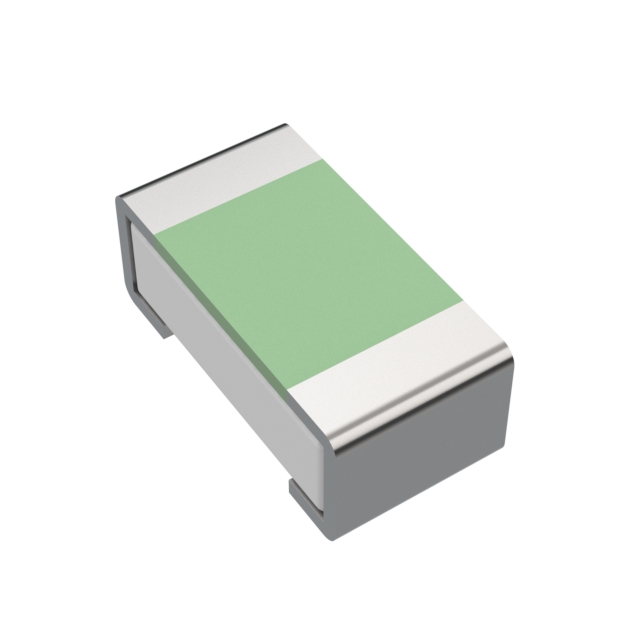

TNPW0201 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
RES 4.75K OHM 0.1% 0.075W 0201
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Resistance | Ratings | Number of Terminations | Temperature Coefficient | Package / Case | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Features | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Power (Watts) | Composition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 4.75 kOhms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 0.1 % | 75 mW | Thin Film |
Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 10.2 kOhms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 0.1 % | 75 mW | Thin Film |
Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 9.09 kOhms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 0.1 % | 75 mW | Thin Film |
Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 13.3 kOhms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 0.1 % | 75 mW | Thin Film |
Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 4.7 kOhms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 0.1 % | 75 mW | Thin Film |
Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 620 Ohms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 0.1 % | 75 mW | Thin Film |
Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 30.1 kOhms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 75 mW | Thin Film | |
 Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 3 kOhms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 0.1 % | 75 mW | Thin Film |
Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 2.21 kOhms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 0.1 % | 75 mW | Thin Film |
Vishay General Semiconductor - Diodes Division | 155 °C | -55 °C | 0201 | 3.32 kOhms | AEC-Q200 | 2 | 25 ppm/°C | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | Anti-Sulfur Automotive AEC-Q200 Moisture Resistant | 0.26 mm | 0.01 " | 0.1 % | 75 mW | Thin Film |
