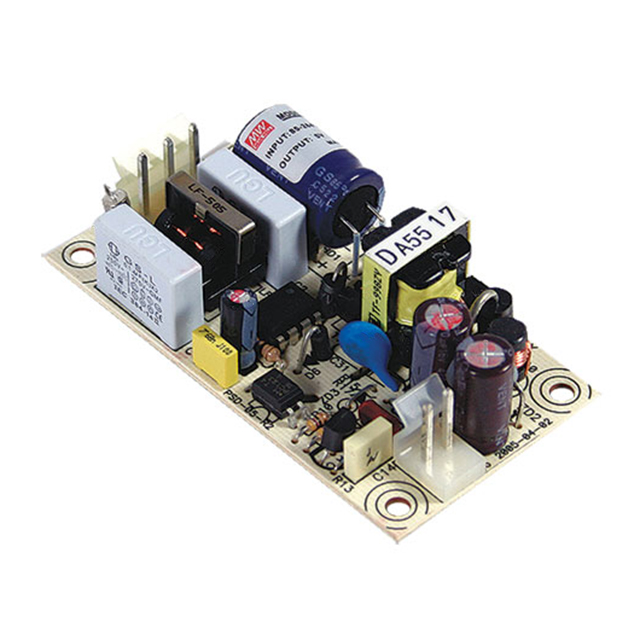

PS-05 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 5W
| Part | Minimum Load Required | Efficiency | Voltage - Output 1 | Features | Approval Agency | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Type | Mounting Type | Power (Watts) | Number of Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Isolation | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 75 % | 12 V | Adjustable Output Universal Input | CB CE | 450 mA | -10 °C | 60 °C | 85 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | Chassis Mount | 5 W | 1 | 1.57 " | 2.95 " | 40 mm | 75 mm | 20 mm | 0.79 in | 3000 V | ITE (Commercial) | |
MEAN WELL USA Inc. | 76 % | 24 V | Adjustable Output Universal Input | CB CE | 220 mA | -10 °C | 60 °C | 85 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | Chassis Mount | 5 W | 1 | 1.57 " | 2.95 " | 40 mm | 75 mm | 20 mm | 0.79 in | 3000 V | ITE (Commercial) | |
MEAN WELL USA Inc. | 76 % | 48 V | Adjustable Output Universal Input | CB CE | 110 mA | -10 °C | 60 °C | 85 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | Chassis Mount | 5 W | 1 | 1.57 " | 2.95 " | 40 mm | 75 mm | 20 mm | 0.79 in | 3000 V | ITE (Commercial) |
