TRE36A Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC DESKTOP ADAPTER 12V 30W

Part	Approval Agency	Form	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Region Utilized	Efficiency	No Load Power Consumption	Voltage - Output	Polarization	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Output Connector	Output Connector [diameter]	Output Connector [z]	Input Connector	Power (Watts)	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current - Output (Max)

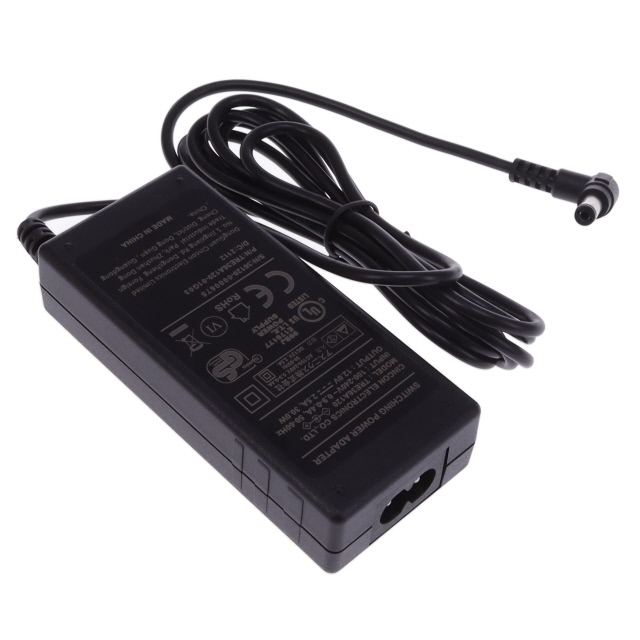

Cincon Electronics Co. LTD TRE36A120-01G03 VI	CE cULus FCC GS PSE	Desktop (Class II)	70.9 "	1.8 m	264 VAC	90 VAC	2.5 A	International	CoC Tier 2 Level VI	75 mW	12 V	Positive Center	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	IEC 320-C8	30 Watts	Cord (Sold Separately)	-20 ░C	60 °C	ITE (Commercial)

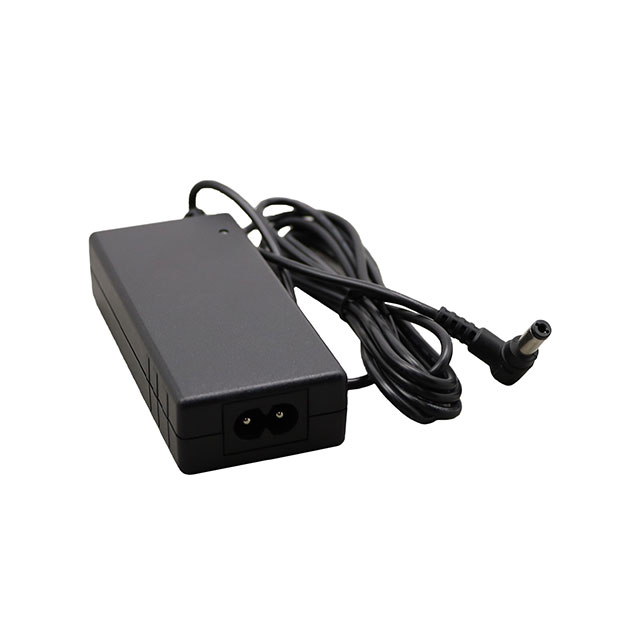

Cincon Electronics Co. LTD TRE36A360-01E03 VI	CE cULus FCC GS PSE	Desktop (Class II)	70.9 "	1.8 m	264 VAC	90 VAC	1 A	International	CoC Tier 2 Level VI	75 mW	36 V	Positive Center	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	IEC 320-C8	36 W	Cord (Sold Separately)	-20 ░C	60 °C	ITE (Commercial)

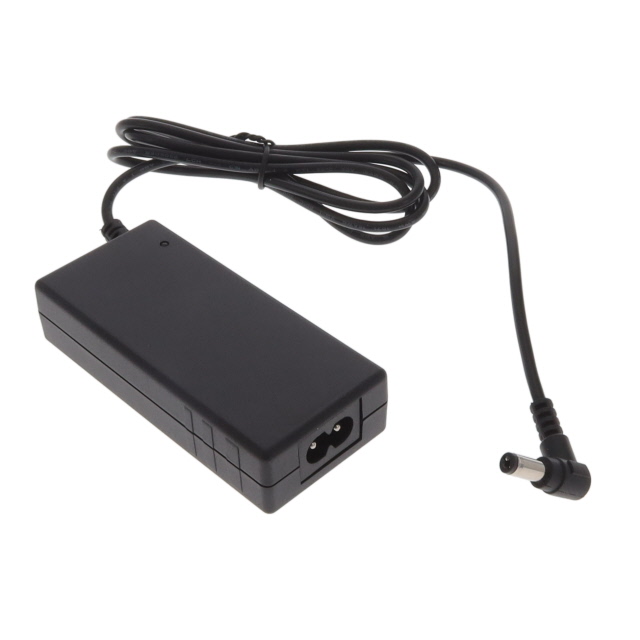

Cincon Electronics Co. LTD TRE36A050-01G02 VI	CE cULus FCC GS PSE	Desktop (Class II)	48 in	1.22 m	264 VAC	90 VAC		International	CoC Tier 2 Level VI	75 mW	5 V	Positive Center	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	IEC 320-C8	25 W	Cord (Sold Separately)	-20 ░C	60 °C	ITE (Commercial)	5 A

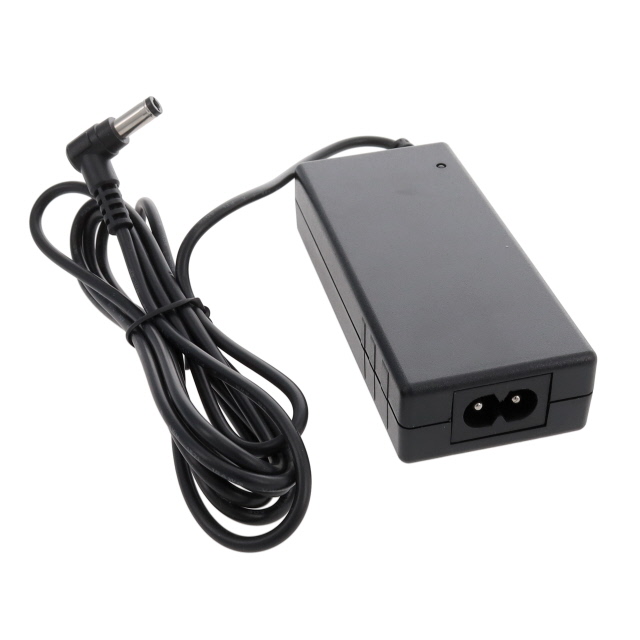

Cincon Electronics Co. LTD TRE36A135-01G03 VI	CE cULus FCC GS PSE	Desktop (Class II)	70.9 "	1.8 m	264 VAC	90 VAC	2.4 A	International	CoC Tier 2 Level VI	75 mW	13.5 V	Positive Center	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	IEC 320-C8	32 W	Cord (Sold Separately)	-20 ░C	60 °C	ITE (Commercial)
Cincon Electronics Co. LTD TRE36A090-01G03 VI	CE cULus FCC GS	Desktop (Class II)	70.9 "	1.8 m	264 VAC	90 VAC	3.3 A	International	CoC Tier 2 Level VI	75 mW	9 V	Positive Center	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	IEC 320-C8	30 Watts	Cord (Sold Separately)	-20 ░C	60 °C	ITE (Commercial)

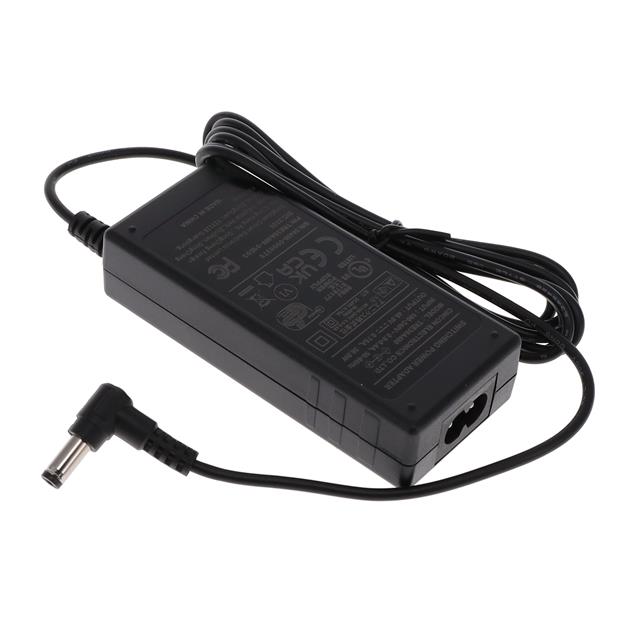

Cincon Electronics Co. LTD TRE36A480-01E03 VI	CE cULus FCC GS PSE	Desktop (Class II)	70.9 "	1.8 m	264 VAC	90 VAC	750 mA	International	CoC Tier 2 Level VI	75 mW	48 V	Positive Center	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	IEC 320-C8	36 W	Cord (Sold Separately)	-20 ░C	60 °C	ITE (Commercial)

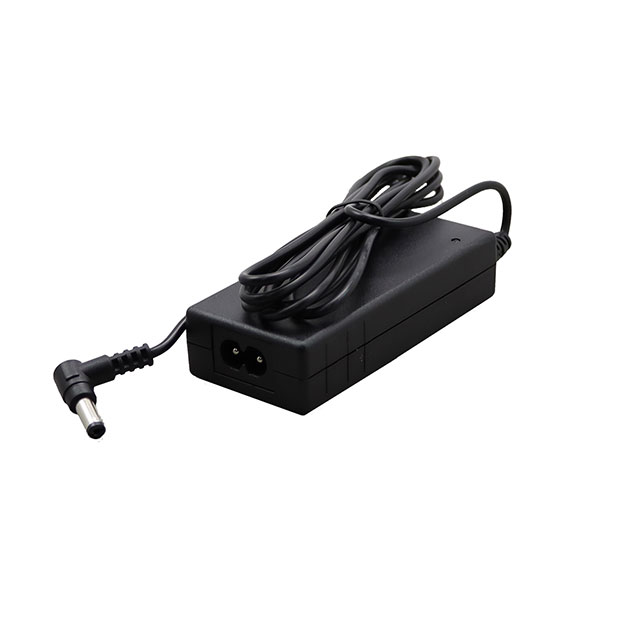

Cincon Electronics Co. LTD TRE36A180-01G03 VI	CE cULus FCC GS PSE	Desktop (Class II)	70.9 "	1.8 m	264 VAC	90 VAC	2 A	International	CoC Tier 2 Level VI	75 mW	18 V	Positive Center	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	IEC 320-C8	36 W	Cord (Sold Separately)	-20 ░C	60 °C	ITE (Commercial)

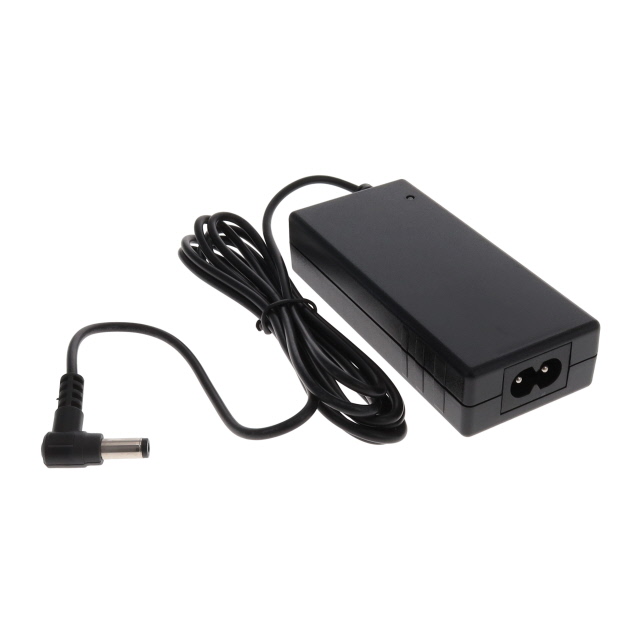

Cincon Electronics Co. LTD TRE36A240-01G03 VI	CE cULus FCC GS PSE	Desktop (Class II)	70.9 "	1.8 m	264 VAC	90 VAC	1.5 A	International	CoC Tier 2 Level VI	75 mW	24 V	Positive Center	1.77 in	45 mm	0.89 "	22.5 mm	100 mm	3.94 in	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	IEC 320-C8	36 W	Cord (Sold Separately)	-20 ░C	60 °C	ITE (Commercial)
