SC196 Series

Catalog

CONV DC-DC SINGLE STEP DOWN 2.5V TO 5.5V 10-PIN MLPD-UT T/R

Part	Package / Case	Output Configuration	Synchronous Rectifier	Number of Outputs	Mounting Type	Topology	Output Type	Frequency - Switching	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max) [Max]	Current - Output	Function	Voltage - Input (Min) [Min]

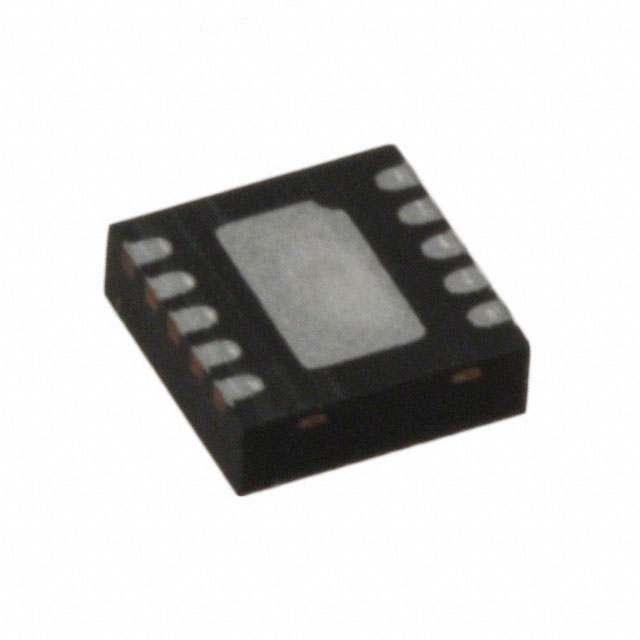

Semtech Corporation SC196ULTRT	10-UFDFN Exposed Pad	Positive		1	Surface Mount	Buck	Adjustable	1 MHz	10-MLPD-UT (3x3)	5.5 V	0.8 V	85 C	-40 ¯C	5.5 V	1.5 A	Step-Down	2.5 V
Semtech Corporation SC196AMLTRT	10-VFDFN Exposed Pad	Positive		1	Surface Mount	Buck	Programmable	1 MHz	10-MLP (3x3)	5.5 V	1 V 1.05 V 1.2 V 1.8 V	85 C	-40 ¯C		1.5 A	Step-Down	2.7 V
