BPWX 4 Series

Catalog

AC/DC CONVERTER 8V 4W

Part	Number of Outputs	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Type	Package / Case	Power (Watts)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Min]
Cita Technologies, LLC. BPWX 4-08-00	1	ITE (Commercial)	33.3 mm	0.98 in	1.31 "	1.91 in	48.5 mm	24.9 mm	8 V	CB cURus	308 VAC	90 VAC	85 °C	-40 C	70 %	Through Hole	Enclosed	7-DIP Module
Cita Technologies, LLC. BPWX 4-08-50	2	ITE (Commercial)	33.3 mm	0.98 in	1.31 "	1.91 in	48.5 mm	24.9 mm	8 V	CB cURus	308 VAC	90 VAC	85 °C	-40 C	70 %	Through Hole	Enclosed	7-DIP Module	4.5 W	250 mA 500 mA
Cita Technologies, LLC. BPWX 4-14-50	2	ITE (Commercial)	33.3 mm	0.98 in	1.31 "	1.91 in	48.5 mm	24.9 mm	14 V	CB cURus	308 VAC	90 VAC	85 °C	-40 C	70 %	Through Hole	Enclosed	7-DIP Module	2.6 W		285 mA	83 mA

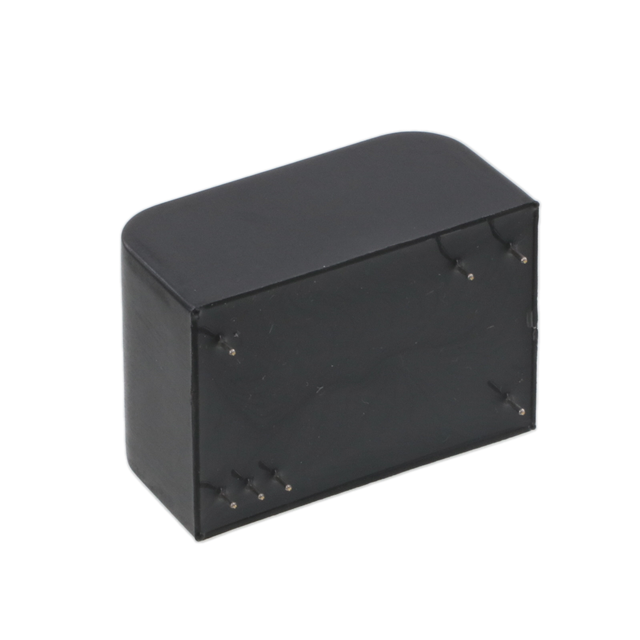

Cita Technologies, LLC. BPWX 4-24-00	1	ITE (Commercial)	33.3 mm	0.98 in	1.31 "	1.91 in	48.5 mm	24.9 mm	24 V	CB cURus	308 VAC	90 VAC	85 °C	-40 C	70 %	Through Hole	Enclosed	7-DIP Module
Cita Technologies, LLC. BPWX 4-08-33	2	ITE (Commercial)	33.3 mm	0.98 in	1.31 "	1.91 in	48.5 mm	24.9 mm	8 V	CB cURus	308 VAC	90 VAC	85 °C	-40 C	70 %	Through Hole	Enclosed	7-DIP Module	2.9 W		500 mA	160 mA

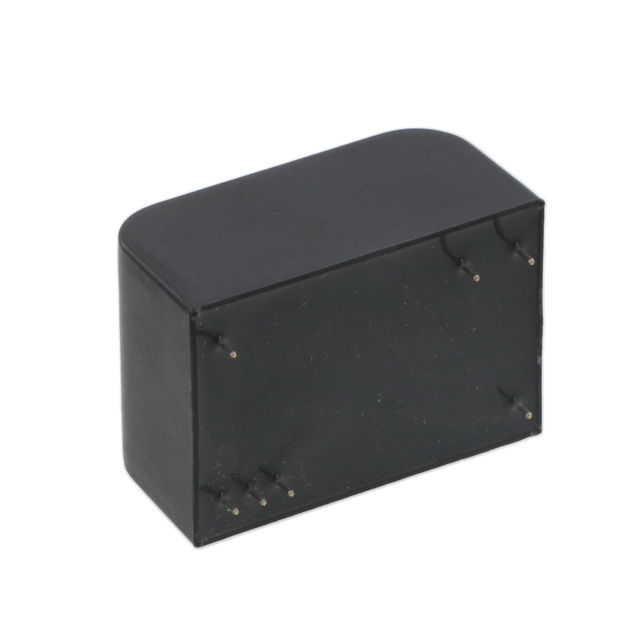

Cita Technologies, LLC. BPWX 4-14-00	1	ITE (Commercial)	33.3 mm	0.98 in	1.31 "	1.91 in	48.5 mm	24.9 mm	14 V	CB cURus	308 VAC	90 VAC	85 °C	-40 C	70 %	Through Hole	Enclosed	7-DIP Module
Cita Technologies, LLC. BPWX 4-14-33	2	ITE (Commercial)	33.3 mm	0.98 in	1.31 "	1.91 in	48.5 mm	24.9 mm	14 V	CB cURus	308 VAC	90 VAC	85 °C	-40 C	70 %	Through Hole	Enclosed	7-DIP Module	1.9 W	70 mA 285 mA
