MPX2202 Series

Catalog

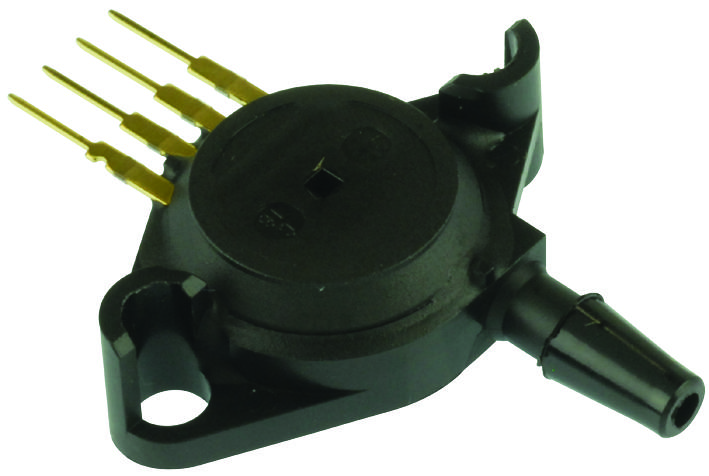

PRESSURE SENSOR 0V TO 0.04V 0KPA TO 200KPA GAUGE 4-PIN CASE 344B-01 T/R

Part	Port Size	Port Size	Output Type	Termination Style	Maximum Pressure	Maximum Pressure	Features	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Port Style	Package / Case	Output [Min]	Output [Max]	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]
Freescale Semiconductor - NXP MPX2202GP	4.93 mm	0.19 "	Wheatstone Bridge	PC Pin	400 kPa	58.02 PSI	Temperature Compensated	Through Hole	Board Mount	125 °C	-40 °C	Vented Gauge	Barbed	4-SIP Module	0 mV	40 mV	2 bar	29.01 PSI	16 V	10 VDC
Freescale Semiconductor - NXP MPX2202DP			Wheatstone Bridge	PC Pin	400 kPa	58.02 PSI	Temperature Compensated	Through Hole	Board Mount	125 °C	-40 °C	Differential	Barbed	4-SIP Module	0 mV	40 mV	2 bar	29.01 PSI	16 V	10 VDC
