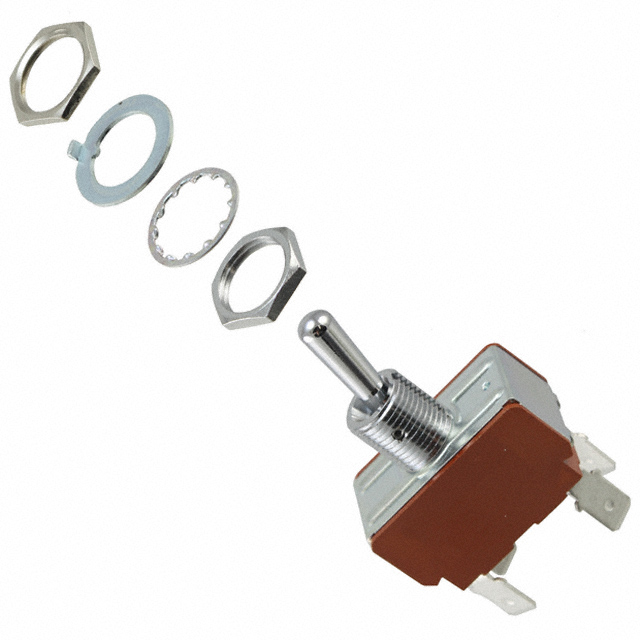

S331F Series

Catalog

TOGGLE SWITCH, ON-OFF, DPST, NON ILLUMINATED, 25 A, PANEL MOUNT

Part	Electrical Life	Actuator Material	Actuator Length [x]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Bushing Thread	Circuit	Illumination	Switch Function	Termination Style	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Actuator Type
NKK Switches S331F/CUL	6000 Cycles	Brass Chrome Plated	17.5 mm	125 V	70 °C	-10 °C	12.5 mm	M12 x 1	DPST	Non-Illuminated	On-Off	Quick Connect - 0.250" (6.3mm)	Panel Mount	30 V	20 A	Standard Round
NKK Switches S331F-AT402H	15000 Cycles	Brass Chrome Plated	17.5 mm	125 V	70 °C	-10 °C	12.5 mm	M12 x 1	DPST	Non-Illuminated	On-Off		Panel Mount	30 V	20 A	Standard Round
NKK Switches S332F-AT401H	25000 Steps	Brass Chrome Plated	17.5 mm	125 V	70 °C	-10 °C	12.5 mm	M12 x 1	DPDT	Non-Illuminated	On-On		Panel Mount	30 V	20 A	Standard Round
NKK Switches S331F/U-AT401A	15000 Cycles	Brass Chrome Plated	17.5 mm	125 V	70 °C	-10 °C	12.5 mm	M12 x 1	DPST	Non-Illuminated	On-Off		Panel Mount	30 V	20 A	Standard Round
NKK Switches S331F/U-AT401S	15000 Cycles	Brass Chrome Plated	17.5 mm	125 V	70 °C	-10 °C	12.5 mm	M12 x 1	DPST	Non-Illuminated	On-Off		Panel Mount	30 V	20 A	Standard Round
NKK Switches S332F-AT402A	25000 Steps	Brass Chrome Plated	17.5 mm	125 V	70 °C	-10 °C	12.5 mm	M12 x 1	DPDT	Non-Illuminated	On-On		Panel Mount	30 V	20 A	Standard Round
NKK Switches S331F-AT401S	15000 Cycles	Brass Chrome Plated	17.5 mm	125 V	70 °C	-10 °C	12.5 mm	M12 x 1	DPST	Non-Illuminated	On-Off		Panel Mount	30 V	20 A	Standard Round
NKK Switches S332F-AT402H	25000 Steps	Brass Chrome Plated	17.5 mm	125 V	70 °C	-10 °C	12.5 mm	M12 x 1	DPDT	Non-Illuminated	On-On		Panel Mount	30 V	20 A	Standard Round
NKK Switches S331F/C-UL-AT402A	15000 Cycles	Brass Chrome Plated	17.5 mm	125 V	70 °C	-10 °C	12.5 mm	M12 x 1	DPST	Non-Illuminated	On-Off		Panel Mount	30 V	20 A	Standard Round
