60A18 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH JOYSTICK FLATTED 10MA 5V
| Part | Mechanical Life | Electrical Life | Operating Force | Panel Cutout Dimensions [diameter] | Type | Type | Switch Function | Contact Material | Termination Style | Output | Current Rating (Amps) | Contact Finish | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply | Voltage Rating - DC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

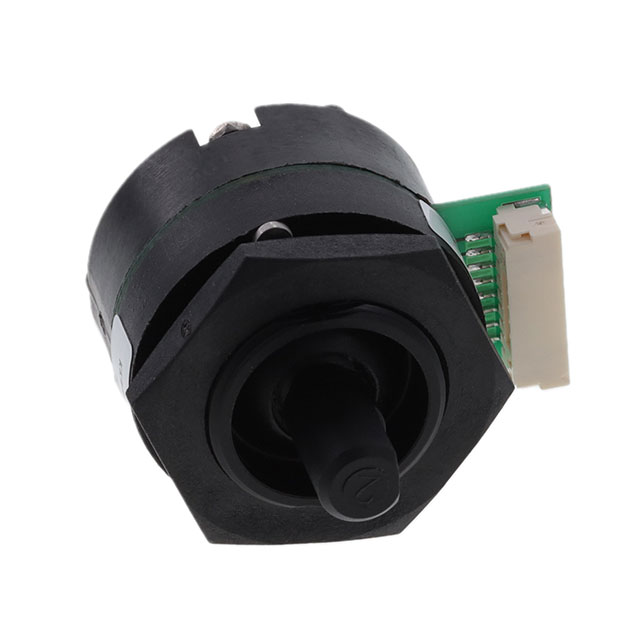

 Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 4-Way Directional Center Select | Silver (Ag) | Connector | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |

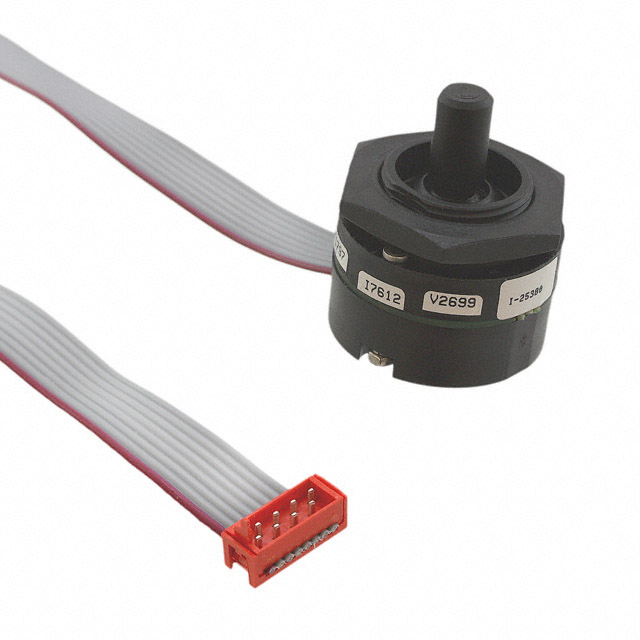

 Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 4-Way Directional Center Select | Silver (Ag) | Cable with Connector | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |
 Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 4-Way Directional Center Select | Silver (Ag) | Cable with Connector | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |
Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 4-Way Directional Center Select | Silver (Ag) | Cable with Connector | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |
 Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 4-Way Directional Center Select | Silver (Ag) | Cable with Connector | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |
Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 8-Way Directional Center Select | Silver (Ag) | Cable with Connector | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |
Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 8-Way Directional Center Select | Silver (Ag) | Cable with Connector | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |
Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 4-Way Directional Center Select | Silver (Ag) | Cable with Connector | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |
Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 4-Way Directional Center Select | Silver (Ag) | Cable with Connector | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |
Grayhill Inc. | 500000 Cycles | 500000 Cycles | 400 gf | 17.25 mm | 3 Shelves | Joystick | 360° Rotational 4-Way Directional Center Select | Silver (Ag) | PC Pin | Digital (Mechanical Switch Pulse) | 10 mA | Phosphor Bronze | Flatted (6.35mm Dia) | 85 °C | -40 C | 5 VDC | 5 V | Panel Mount |
