CDBM140 Series

Catalog

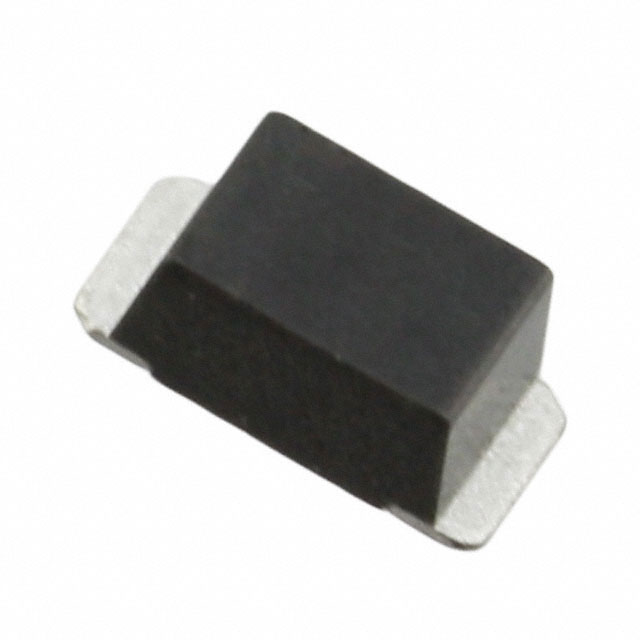

DIODE SCHOT 40V 1A MINISMA

Part	Supplier Device Package	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Speed	Voltage - Forward (Vf) (Max) @ If [Max]
Comchip Technology CDBM140L-HF	Mini SMA/SOD-123	1 A	400 mV	SOD-123T	Surface Mount	100 °C	-55 °C	Schottky	40 V	1 mA	130 pF	200 mA 500 ns
Comchip Technology CDBM140LR-HF	SOD-123F	1 A	450 mV	SOD-123F	Surface Mount	125 °C	-50 °C	Schottky	40 V	200 µA	200 pF	200 mA 500 ns
Comchip Technology CDBM140-HF	Mini SMA/SOD-123	1 A		SOD-123T	Surface Mount	125 °C	-50 °C	Schottky	40 V	500 µA	120 pF	200 mA 500 ns	500 mV
Comchip Technology CDBM140-G	Mini SMA/SOD-123	1 A		SOD-123T	Surface Mount	125 °C	-50 °C	Schottky	40 V	500 µA	120 pF	200 mA 500 ns	500 mV
