SM3ZS067 Series

Catalog

CONN M.2 FMALE 67POS 0.020 GOLD

Part	Material - Insulation	Contact Material	Pitch	Pitch	Number of Positions	Mounting Type	Card Thickness	Card Thickness	Termination	Gender	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Card Type	Features	Number of Rows [custom]	Accessory Type	For Use With/Related Products
JAE Electronics SM3ZS067U310ABR1200	Thermoplastic	Copper Alloy	0.02 "	0.5 mm	67	Right Angle Surface Mount	0.031 in	0.79 mm	Solder	Female	Dual	80 °C	-40 C	5.11 µin	0.13 µm	Gold	M.2 (NGFF) Mini Card	Board Guide	2
JAE Electronics SM3ZS067U310AMR1200	Thermoplastic	Copper Alloy	0.02 "	0.5 mm	67	Right Angle Surface Mount	0.031 in	0.79 mm	Solder	Female	Dual	80 °C	-40 C	5.11 µin	0.13 µm	Gold	M.2 (NGFF) Mini Card	Board Guide	2

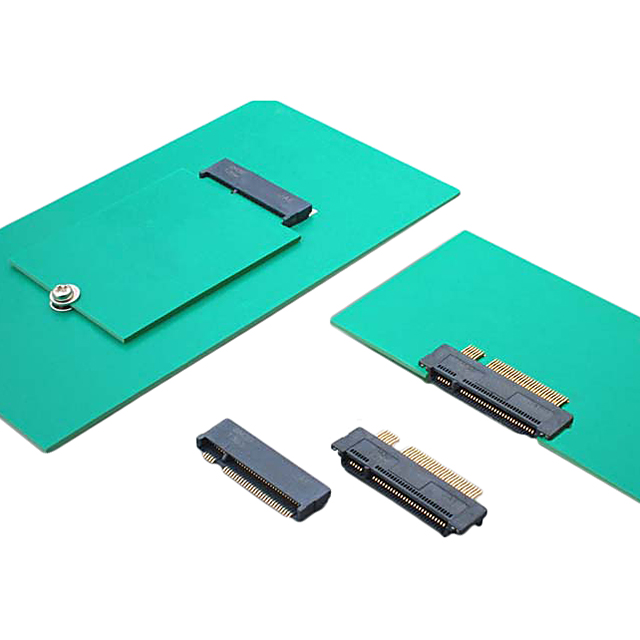

JAE Electronics SM3ZS067U215AMR1500	Thermoplastic	Copper Alloy	0.02 "	0.5 mm	67	Right Angle Surface Mount	0.031 in	0.79 mm	Solder	Female	Dual	80 °C	-40 C	5.11 µin	0.13 µm	Gold	M.2 (NGFF) Mini Card	Board Guide	2
JAE Electronics SM3ZS067U215ABR1500	Thermoplastic	Copper Alloy	0.02 "	0.5 mm	67	Right Angle Surface Mount	0.031 in	0.79 mm	Solder	Female	Dual	80 °C	-40 C	5.11 µin	0.13 µm	Gold	M.2 (NGFF) Mini Card	Board Guide	2

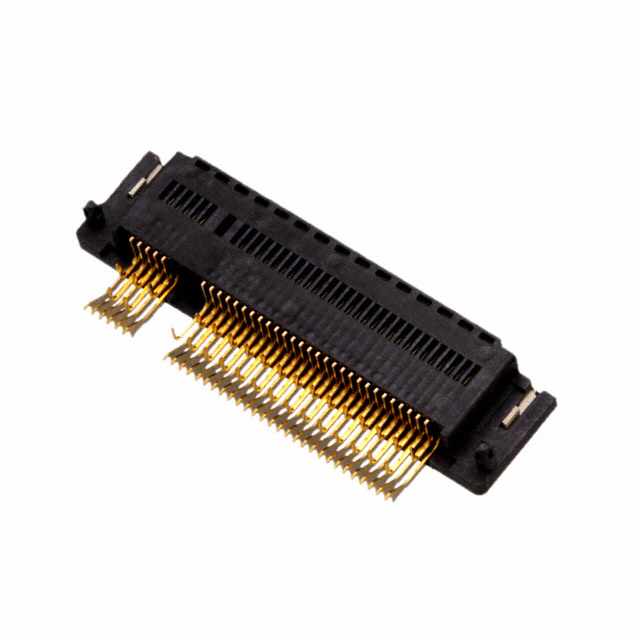

JAE Electronics SM3ZS067B120AB2R1500	Thermoplastic	Copper Alloy	0.02 "	0.5 mm	67	Right Angle Through Hole	0.031 in	0.79 mm	Solder	Female	Dual	80 °C	-40 C	5.11 µin	0.13 µm	Gold	M.2 (NGFF) Mini Card	Board Guide	2
JAE Electronics SM3ZS067U410ABR1000	Thermoplastic	Copper Alloy	0.02 "	0.5 mm	67	Right Angle Surface Mount	0.031 in	0.79 mm	Solder	Female	Dual	80 °C	-40 C	5.11 µin	0.13 µm	Gold	M.2 (NGFF) Mini Card	Board Guide	2
JAE Electronics SM3ZS067U410AMR1000	Thermoplastic	Copper Alloy	0.02 "	0.5 mm	67	Right Angle Surface Mount	0.031 in	0.79 mm	Solder	Female	Dual	80 °C	-40 C	5.11 µin	0.13 µm	Gold	M.2 (NGFF) Mini Card	Board Guide	2

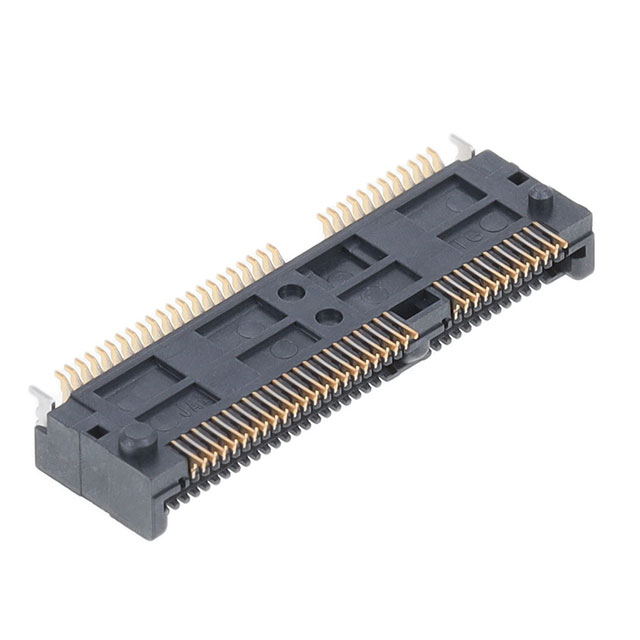

JAE Electronics SM3ZS067U310AER1200	Thermoplastic	Copper Alloy	0.02 "	0.5 mm	67	Right Angle Surface Mount	0.031 in	0.79 mm	Solder	Female	Dual	80 °C	-40 C	5.11 µin	0.13 µm	Gold	M.2 (NGFF) Mini Card	Board Guide	2

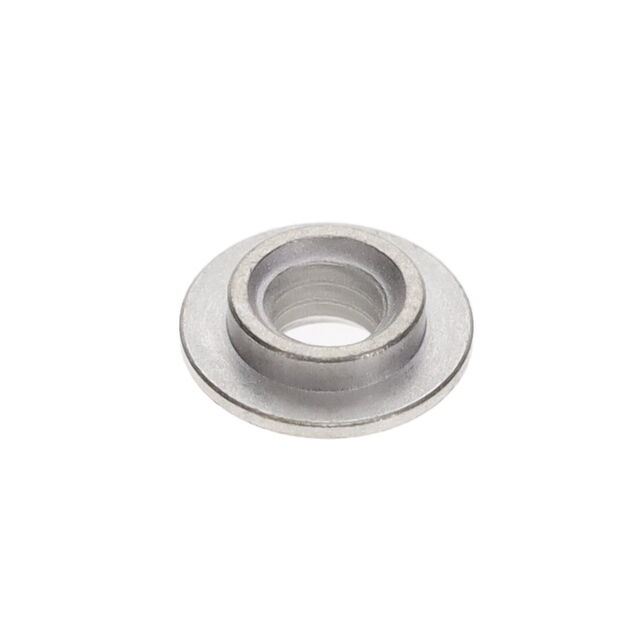

JAE Electronics SM3ZS067U215-NUT1-R2500																				Standoff	SM3 Series
JAE Electronics SM3ZS067U410AER1000	Thermoplastic	Copper Alloy	0.02 "	0.5 mm	67	Right Angle Surface Mount	0.031 in	0.79 mm	Solder	Female	Dual	80 °C	-40 C	5.11 µin	0.13 µm	Gold	M.2 (NGFF) Mini Card	Board Guide	2
