SM04B-SU Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

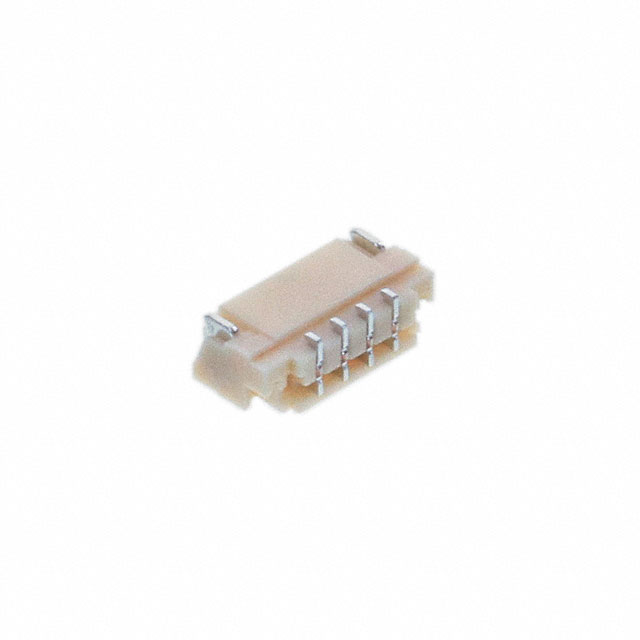

CONN HEADER SMD R/A 4POS 0.8MM
| Part | Contact Finish - Post | Insulation Color | Mounting Type | Number of Rows | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Style | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Material Flammability Rating | Contact Material | Insulation Height [z] | Insulation Height [z] | Voltage Rating | Insulation Material | Fastening Type | Connector Type | Contact Shape | Number of Positions | Termination | Features | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Tin | Natural | Right Angle Surface Mount | 1 | Shrouded - 4 Wall | 85 °C | -25 °C | 0.2 A 0.5 A | Board to Cable/Wire | 0.8 mm | 0.031 in | All | UL94 V-0 | Copper Alloy | 0.069 in | 1.75 mm | 30 VDC | Nylon Polyamide (PA) | Push-Pull | Header | Rectangular | 4 | Solder | Solder Retention | Outer Shroud Contact |
