09310006 Series

Manufacturer: HARTING

Catalog

HAN HSB 06 POS. F INSERT SCREW MATL PPS ROHS COMPLIANT: NA

Part	Connector Type	Gender	Termination Style	Number of Positions	Contact Termination	Type	Contact Finish	Pin or Socket	Wire Gauge	Contact Material	Color	Material Flammability Rating	Housing Material	Size	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Type
HARTING 09310062751	Insert	Female	Screw	6+Ground
HARTING 09310006103					Crimp	Machined	Silver	Pin	8 AWG

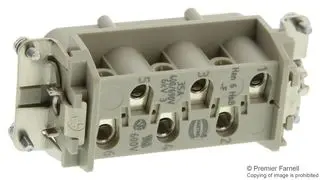

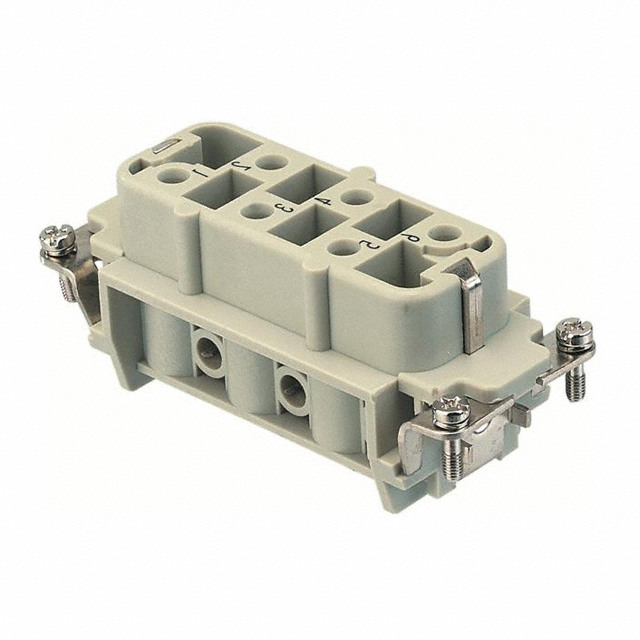

HARTING 09310062701	Insert	Female	Screw	6+Ground			Silver			Copper Alloy	Gray	UL94 V-0	Polycarbonate (PC)	16 B	35 A	125 °C	-40 C	600 V

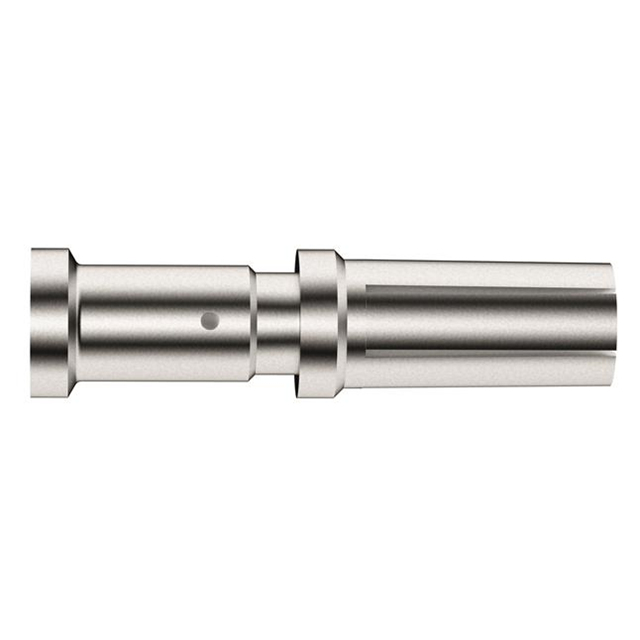

HARTING 09310006201					Crimp	Machined	Silver	Socket	12 AWG
HARTING 09310006102					Crimp	Machined	Silver	Pin	10 AWG
HARTING 09310006205					Crimp	Machined	Silver	Socket	14.5 AWG

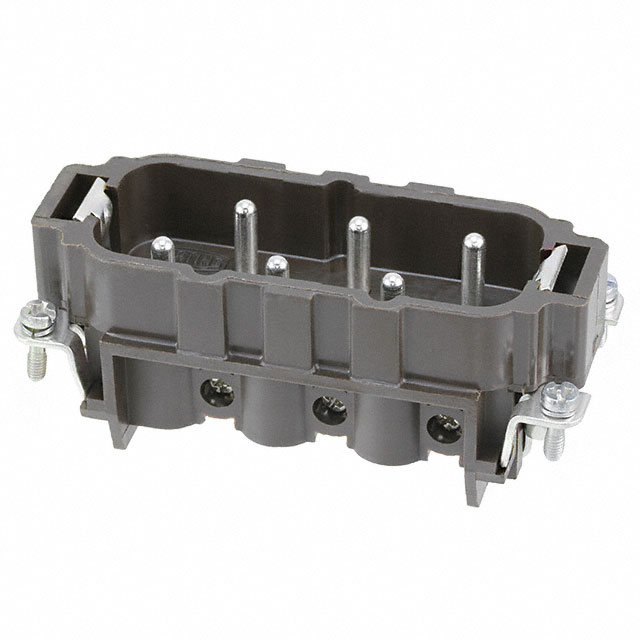

HARTING 09310062651	Insert	Male	Screw	6+Ground

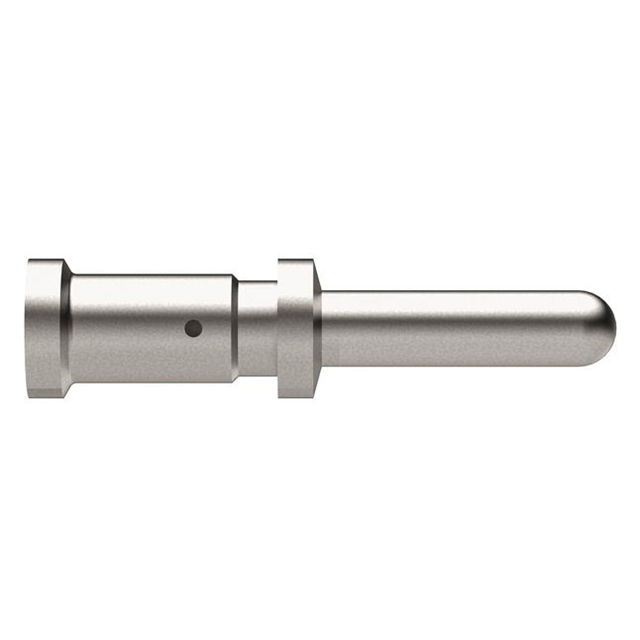

HARTING 09310006101					Crimp	Machined	Silver	Pin	12 AWG

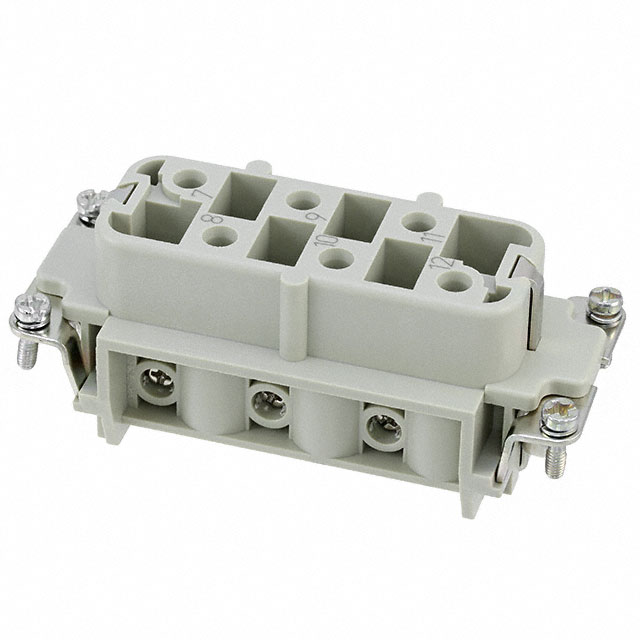

HARTING 09310062711	Insert	Female	Screw	6+Ground			Silver			Copper Alloy	Gray	UL94 V-0	Polycarbonate (PC)	32 B	35 A	125 °C	-40 C	600 V
HARTING 09310063101	Insert without Contacts	Female	Crimp	6+Ground							Gray	UL94 V-0	Polycarbonate (PC)	16 B	35 A	125 °C	-40 C	400 V 600 V	Han® HsB
