1N3289 Series

Catalog

DIODE MODULE, 200 V, 100 A, 1.5 V, SINGLE, MODULE, 2 PINS

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Mounting Type	Speed [Min]	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Supplier Device Package
Powerex Inc. 1N3289AR	200 V	-40 °C	200 C	100 A	24 mA	Chassis Stud Mount	200 mA 500 ns	DO-205AA DO-8 Stud	1.5 V	Reverse Polarity Standard	DO-205AA (DO-8)

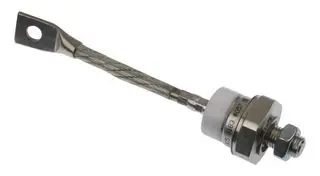

Powerex Inc. 1N3289A	200 V	-40 °C	200 C	100 A	24 mA	Chassis Stud Mount	200 mA 500 ns	DO-205AA DO-8 Stud	1.5 V	Standard	DO-205AA (DO-8)
