FN351 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 80A CHASSIS MOUNT

Part	Current	Voltage - Rated AC (Phase to Phase)	Approval Agency	Configuration	Applications	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)	Frequency - Operating	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
TE Connectivity AMP Connectors FN351H-80-34	80 A	520 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	300 V	60 Hz	Three Phase (Delta)	100 °C	-25 °C	Terminal Block
TE Connectivity AMP Connectors FN351H-80-34	80 A	520 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	300 V	60 Hz	Three Phase (Delta)	100 °C	-25 °C	Terminal Block

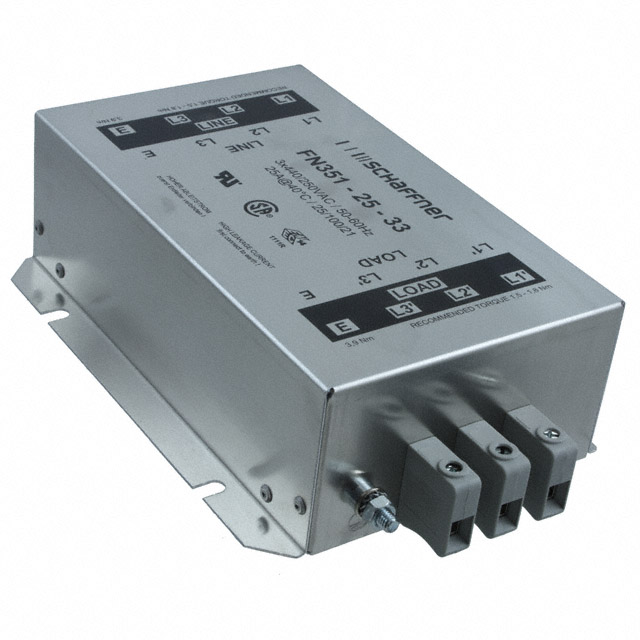

TE Connectivity AMP Connectors FN351-25-33	25 A	440 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	250 V	60 Hz	Three Phase (Delta)	85 °C	-25 °C	Terminal Block
TE Connectivity AMP Connectors FN351-50-47	50 A	440 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	250 V	60 Hz	Three Phase (Delta)	85 °C	-25 °C	Terminal Block
TE Connectivity AMP Connectors FN351H-110-35	110 A	520 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	300 V	60 Hz	Three Phase (Delta)	100 °C	-25 °C	Terminal Block
TE Connectivity AMP Connectors FN351H-8-29	8 A	520 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	300 V	60 Hz	Three Phase (Delta)	100 °C	-25 °C	Terminal Block

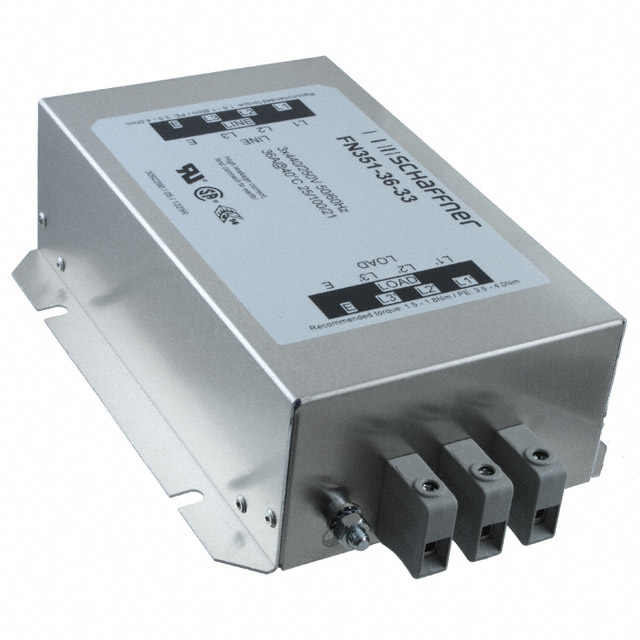

TE Connectivity AMP Connectors FN351-36-33	36 A	440 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	250 V	60 Hz	Three Phase (Delta)	85 °C	-25 °C	Terminal Block

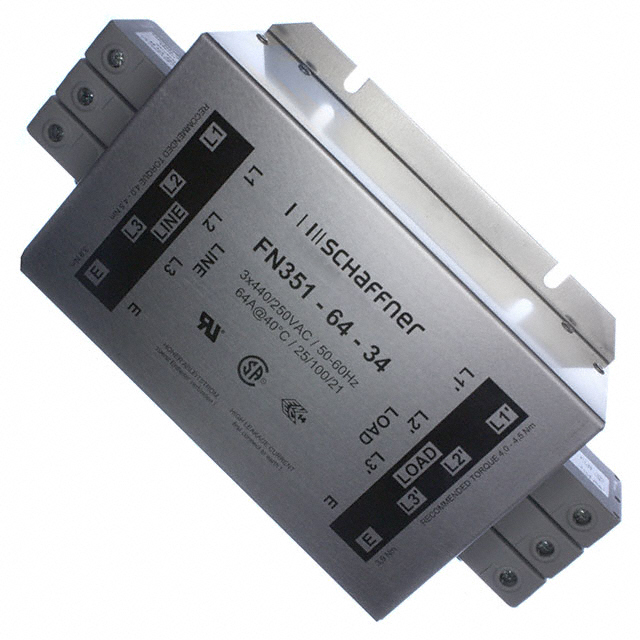

TE Connectivity AMP Connectors FN351-64-34	64 A	440 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	250 V	60 Hz	Three Phase (Delta)	85 °C	-25 °C	Terminal Block
TE Connectivity AMP Connectors FN351-64-33	64 A	440 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	250 V	60 Hz	Three Phase (Delta)	85 °C	-25 °C	Terminal Block
TE Connectivity AMP Connectors FN351-50-33	50 A	440 V	CSA ENEC UR	Single Stage	Inverters Power Drive Systems	Chassis Mount	250 V	60 Hz	Three Phase (Delta)	85 °C	-25 °C	Terminal Block
