KEC Series

AC Power Entry Modules KEC PWR ENTRY MODUL 10A

Manufacturer: SCHURTER Inc.

Catalog

AC Power Entry Modules KEC PWR ENTRY MODUL 10A

Catalog

AC Power Entry Modules KEC PWR ENTRY MODUL 10A

Part	Ingress Protection	Accomodates a Fuse	Voltage Rating - Appliance Inlet	Approval Agency	Current Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Connector Type	Panel Thickness	Panel Thickness	Fuse Holder, Drawer	Material Flammability Rating	Mounting Type	Connector Style	Termination	Termination	Termination	Features
SCHURTER Inc. 4303.1003	IP40		250 VAC	CCC CSA ENEC UL	10 A	50 mm	27.6 mm	Unfiltered - Commercial	Receptacle Male Blades - Module	0.079 in	2 mm	Drawer Sold Separate	UL94 V-0	Panel Mount Snap-In	IEC 320-C14	0.189 "	4.8 mm	Quick Connect

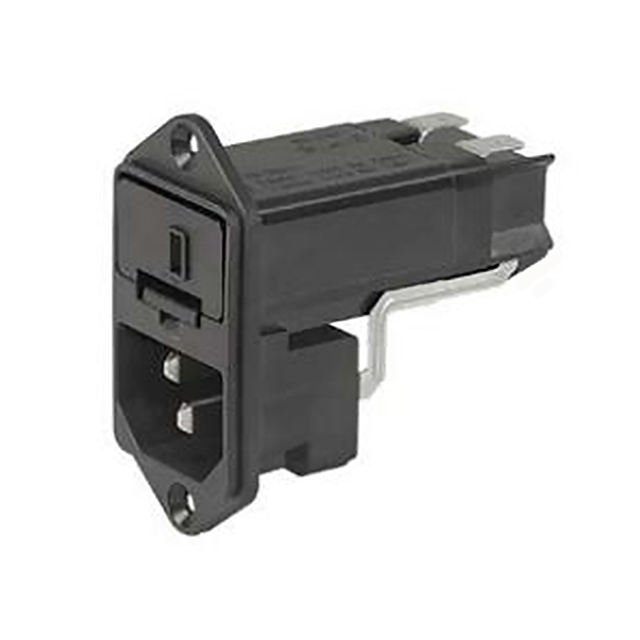

SCHURTER Inc. 4303.0091	IP40		250 VAC	CCC CSA ENEC UL	10 A	41.1 mm	27.6 mm	Unfiltered - Commercial	Receptacle Male Blades - Module			Drawer Sold Separate	UL94 V-0	Flange Panel Mount	IEC 320-C14	0.189 "	4.8 mm	Quick Connect	Voltage Selector

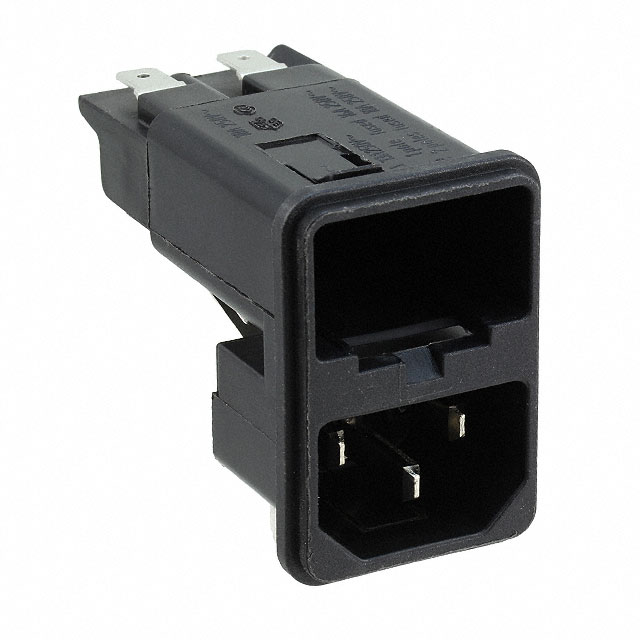

SCHURTER Inc. 4303.0003	IP40		250 VAC	CCC CSA ENEC UL	10 A	50 mm	27.6 mm	Unfiltered - Commercial	Receptacle Male Blades - Module	0.079 in	2 mm	Drawer Sold Separate	UL94 V-0	Panel Mount Snap-In	IEC 320-C14	0.189 "	4.8 mm	Quick Connect
SCHURTER Inc. 4303.1182	IP40		250 VAC	CCC CSA ENEC UL	10 A	50 mm	27.6 mm	Unfiltered - Commercial	Receptacle Male Blades - Module	0.059 in	1.5 mm	Drawer Sold Separate	UL94 V-0	Panel Mount Snap-In	IEC 320-C14	0.189 "	4.8 mm	Quick Connect	Voltage Selector
SCHURTER Inc. 4303.1091	IP40		250 VAC	CCC CSA ENEC UL	10 A	41.1 mm	27.6 mm	Unfiltered - Commercial	Receptacle Male Blades - Module			Drawer Sold Separate	UL94 V-0	Flange Panel Mount	IEC 320-C14	0.189 "	4.8 mm	Quick Connect	Voltage Selector
SCHURTER Inc. 4303.0211	IP40		250 VAC	CCC CSA ENEC UL	10 A	41.1 mm	27.6 mm	Unfiltered - Commercial	Receptacle Male Blades - Module			Drawer Sold Separate	UL94 V-0	Flange Panel Mount	IEC 320-C14	0.189 "	4.8 mm	Quick Connect	Voltage Selector
