2501-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

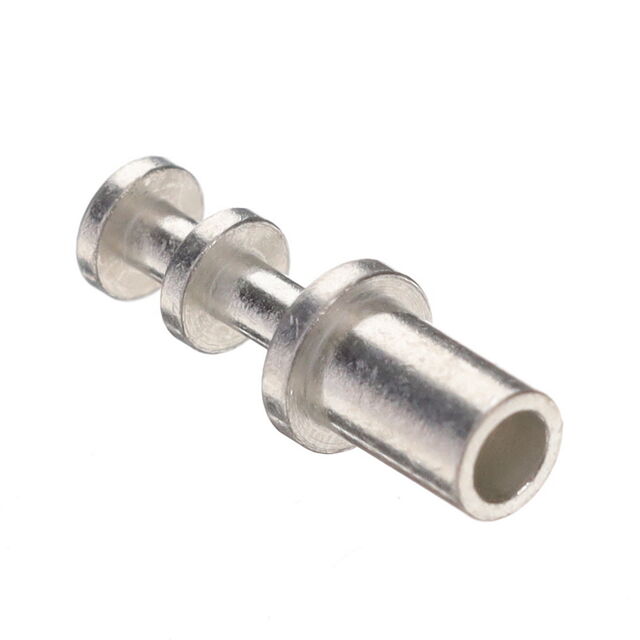

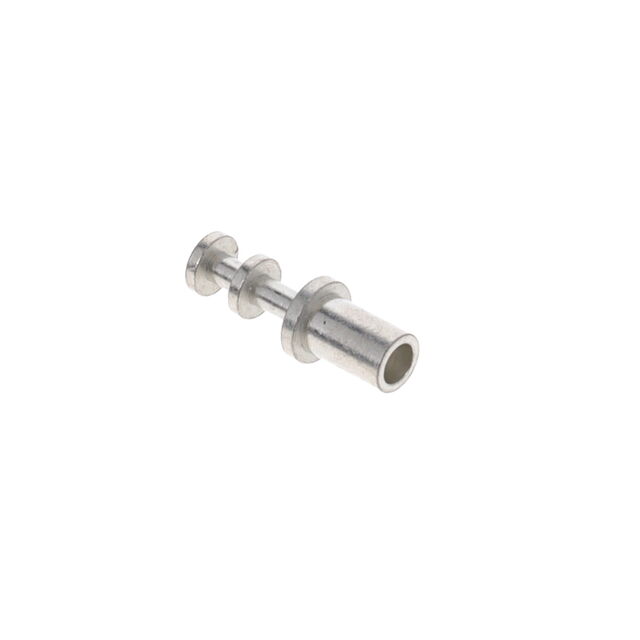

TERM TURRET SINGLE L=5.56MM
| Part | Number of Turrets | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Insulation | Contact Finish | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Mounting Type | Board Thickness | Board Thickness | Staking Side OD [diameter] | Staking Side OD [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall | Length - Overall | Flange Diameter | Flange Diameter [diameter] | Terminal Type | Length - Above Board [x] | Length - Above Board [x] | Staking Side ID [diameter] | Staking Side ID [diameter] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Double | 300 µin | 7.62 µm | 3.56 mm | 0.14 in | Brass Alloy | Non-Insulated | Tin-Lead | 2.36 mm | 0.093 in | Through Hole | 0.094 in | 2.39 mm | 2.29 mm | 0.09 in | 2.39 mm | 0.094 " | 0.359 in | 9.12 mm | 3.18 mm | 0.125 in | Single End | 0.219 " | 5.56 mm | 1.63 mm | 0.064 " | Swage |
 Mill-Max Manufacturing Corp. | Double | 300 µin | 7.62 µm | 3.56 mm | 0.14 in | Brass Alloy | Non-Insulated | Silver | 2.36 mm | 0.093 in | Through Hole | 0.094 in | 2.39 mm | 2.29 mm | 0.09 in | 2.39 mm | 0.094 " | 0.359 in | 9.12 mm | 3.18 mm | 0.125 in | Single End | 0.219 " | 5.56 mm | 1.63 mm | 0.064 " | Swage |
 Mill-Max Manufacturing Corp. | Double | 200 Áin | 5.08 Ám | 3.56 mm | 0.14 in | Brass Alloy | Non-Insulated | Tin | 2.36 mm | 0.093 in | Through Hole | 0.094 in | 2.39 mm | 2.29 mm | 0.09 in | 2.39 mm | 0.094 " | 0.359 in | 9.12 mm | 3.18 mm | 0.125 in | Single End | 0.219 " | 5.56 mm | 1.63 mm | 0.064 " | Swage |
 Mill-Max Manufacturing Corp. | Double | 200 Áin | 5.08 Ám | 3.56 mm | 0.14 in | Brass Alloy | Non-Insulated | Tin-Lead | 2.36 mm | 0.093 in | Through Hole | 0.094 in | 2.39 mm | 2.29 mm | 0.09 in | 2.39 mm | 0.094 " | 0.359 in | 9.12 mm | 3.18 mm | 0.125 in | Single End | 0.219 " | 5.56 mm | 1.63 mm | 0.064 " | Swage |
