828549 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN SHROUDED HEADER (2 SIDES) HDR 2 POS 2.54MM SOLDER RA THRU-HOLE
| Part | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Insulation Color | Insulation Material | Contact Material | Contact Type | Fastening Type | Contact Shape | Insulation Height | Insulation Height | Number of Positions | Termination | Mounting Type | Material Flammability Rating | Style | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Shrouding | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Male Pin | Friction Lock | Circular | 4.9 mm | 0.193 " | 2 | Solder | Right Angle Through Hole | UL94 V-0 | Board to Cable/Wire | Header | 0.114 in | 2.9 mm | Shrouded - 2 Wall | 0.205 in | 5.21 mm | All | 0.1 " | 2.54 mm | 1 | Tin |

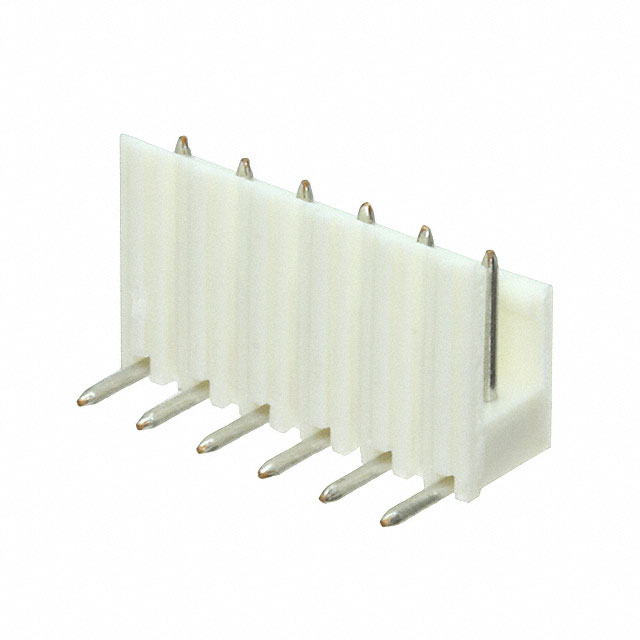

 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Male Pin | Friction Lock | Circular | 4.9 mm | 0.193 " | 6 | Solder | Right Angle Through Hole | UL94 V-0 | Board to Cable/Wire | Header | 0.114 in | 2.9 mm | Shrouded - 2 Wall | 0.205 in | 5.21 mm | All | 0.1 " | 2.54 mm | 1 | Tin |
 TE Connectivity AMP Connectors | Natural | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Male Pin | Push-Pull | Circular | 4.9 mm | 0.193 " | 4 | Solder | Right Angle Through Hole | Board to Cable/Wire | Header | 0.114 in | 2.9 mm | Shrouded - 4 Wall | All | 0.1 " | 2.54 mm | 1 |
