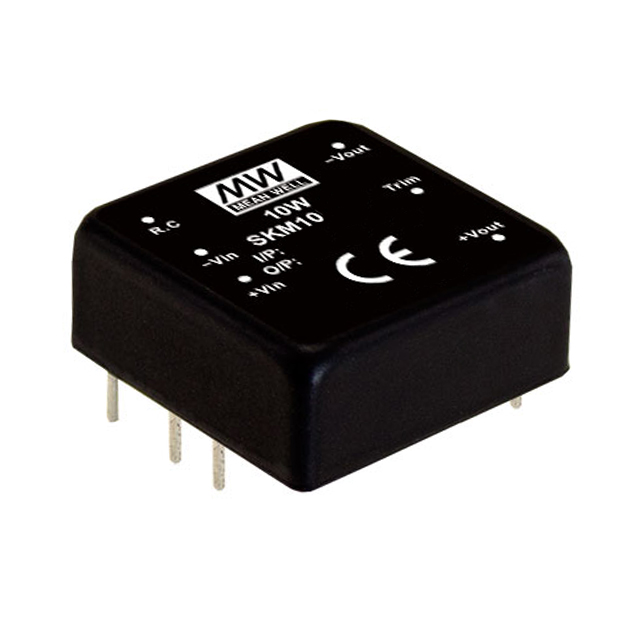

SKM10 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 12V 10W
| Part | Voltage - Isolation | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Type | Voltage - Input (Max) [Max] | Efficiency | Mounting Type | Number of Outputs | Features | Current - Output (Max) [Max] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Input (Min) [Min] | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1.5 kV | ITE (Commercial) | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 18 V | 89 % | Through Hole | 1 | OCP OVP Remote On/Off UVLO | 833 mA | 10 W | -40 °C | 85 °C | 6-DIP Module | 9 V | 12 V |
MEAN WELL USA Inc. | 1.5 kV | ITE (Commercial) | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 9 V | 87 % | Through Hole | 1 | OCP OVP Remote On/Off UVLO | 666 mA | 10 W | -40 °C | 85 °C | 6-DIP Module | 4.7 V | 15 V |
MEAN WELL USA Inc. | 1.5 kV | ITE (Commercial) | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 75 V | 89 % | Through Hole | 1 | OCP OVP Remote On/Off UVLO | 833 mA | 10 W | -40 °C | 85 °C | 6-DIP Module | 36 V | 12 V |
MEAN WELL USA Inc. | 1.5 kV | ITE (Commercial) | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 9 V | 87 % | Through Hole | 1 | OCP OVP Remote On/Off UVLO | 2 A | 10 W | -40 °C | 85 °C | 6-DIP Module | 4.7 V | 5 V |
