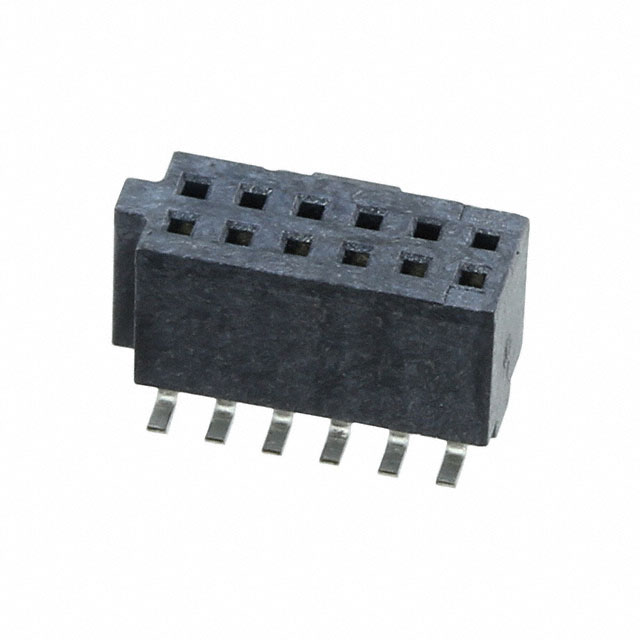

078120 Series

Manufacturer: Molex

Catalog

CONN RCPT 12POS 0.05 GOLD SMD

Part	Termination	Material Flammability Rating	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Connector Type	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Insulation Color	Current Rating (Amps)	Applications	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material	Number of Rows	Contact Shape	Insulation Height	Insulation Height	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Positions
Molex 0781201218	Solder	UL94 V-0	125 VAC	0.05 in	1.27 mm	Tin	Receptacle	All	Liquid Crystal Polymer (LCP) Glass Filled Halogen Free	100 µin	2.54 µm	Pick and Place	Black	4.3 A	Automotive General Purpose Telecommunications	Gold	0.05 in	1.27 mm	-55 °C	105 ░C	12	Copper Alloy	2	Square	4.51 mm	0.178 in	Locking Ramp	Surface Mount	15 µin	0.38 µm	Female Socket
Molex 0781201019	Solder	UL94 V-0	125 VAC	0.05 in	1.27 mm	Tin	Receptacle	All	Liquid Crystal Polymer (LCP) Glass Filled Halogen Free	100 µin	2.54 µm	Pick and Place	Black	4.3 A	Automotive General Purpose Telecommunications	Gold	0.05 in	1.27 mm	-55 °C	105 ░C	10	Copper Alloy	2	Square	4.51 mm	0.178 in	Locking Ramp	Surface Mount	30 Áin	0.76 Ám	Female Socket
Molex 0781201008	Solder	UL94 V-0	125 VAC	0.05 in	1.27 mm	Tin	Receptacle	All	Liquid Crystal Polymer (LCP) Glass Filled Halogen Free	100 µin	2.54 µm		Black	4.3 A	Automotive General Purpose Telecommunications	Gold	0.05 in	1.27 mm	-55 °C	105 ░C	10	Copper Alloy	2	Square	4.51 mm	0.178 in	Locking Ramp	Surface Mount	15 µin	0.38 µm	Female Socket
Molex 0781200609	Solder	UL94 V-0	125 VAC	0.05 in	1.27 mm	Tin	Receptacle	All	Liquid Crystal Polymer (LCP) Glass Filled Halogen Free	100 µin	2.54 µm		Black	4.3 A	Automotive General Purpose Telecommunications	Gold	0.05 in	1.27 mm	-55 °C	105 ░C	6	Copper Alloy	2	Square	4.51 mm	0.178 in	Locking Ramp	Surface Mount	30 Áin	0.76 Ám	Female Socket
Molex 0781200608	Solder	UL94 V-0	125 VAC	0.05 in	1.27 mm	Tin	Receptacle	All	Liquid Crystal Polymer (LCP) Glass Filled Halogen Free	100 µin	2.54 µm		Black	4.3 A	Automotive General Purpose Telecommunications	Gold	0.05 in	1.27 mm	-55 °C	105 ░C	6	Copper Alloy	2	Square	4.51 mm	0.178 in	Locking Ramp	Surface Mount	15 µin	0.38 µm	Female Socket
Molex 0781201827
Molex 0781202208	Solder	UL94 V-0	125 VAC	0.05 in	1.27 mm	Tin	Receptacle	All	Liquid Crystal Polymer (LCP) Glass Filled Halogen Free	100 µin	2.54 µm		Black	4.3 A	Automotive General Purpose Telecommunications	Gold	0.05 in	1.27 mm	-55 °C	105 ░C	22 positions	Copper Alloy	2	Square	4.51 mm	0.178 in	Locking Ramp	Surface Mount	15 µin	0.38 µm	Female Socket
Molex 0781200808	Solder	UL94 V-0	125 VAC	0.05 in	1.27 mm	Tin	Receptacle	All	Liquid Crystal Polymer (LCP) Glass Filled Halogen Free	100 µin	2.54 µm		Black	4.3 A	Automotive General Purpose Telecommunications	Gold	0.05 in	1.27 mm	-55 °C	105 ░C	8	Copper Alloy	2	Square	4.51 mm	0.178 in	Locking Ramp	Surface Mount	15 µin	0.38 µm	Female Socket
Molex 0781202419	Solder	UL94 V-0	125 VAC	0.05 in	1.27 mm	Tin	Receptacle	All	Liquid Crystal Polymer (LCP) Glass Filled Halogen Free	100 µin	2.54 µm	Pick and Place	Black	4.3 A	Automotive General Purpose Telecommunications	Gold	0.05 in	1.27 mm	-55 °C	105 ░C	24	Copper Alloy	2	Square	4.51 mm	0.178 in	Locking Ramp	Surface Mount	30 Áin	0.76 Ám	Female Socket
Molex 0781201607	Solder	UL94 V-0	125 VAC	0.05 in	1.27 mm	Tin	Receptacle	All	Liquid Crystal Polymer (LCP) Glass Filled Halogen Free	100 µin	2.54 µm		Black	4.3 A	Automotive General Purpose Telecommunications	Gold	0.05 in	1.27 mm	-55 °C	105 ░C		Copper Alloy	2	Square	4.51 mm	0.178 in	Locking Ramp	Surface Mount	1.97 Áin	0.05 Ám	Female Socket	16
